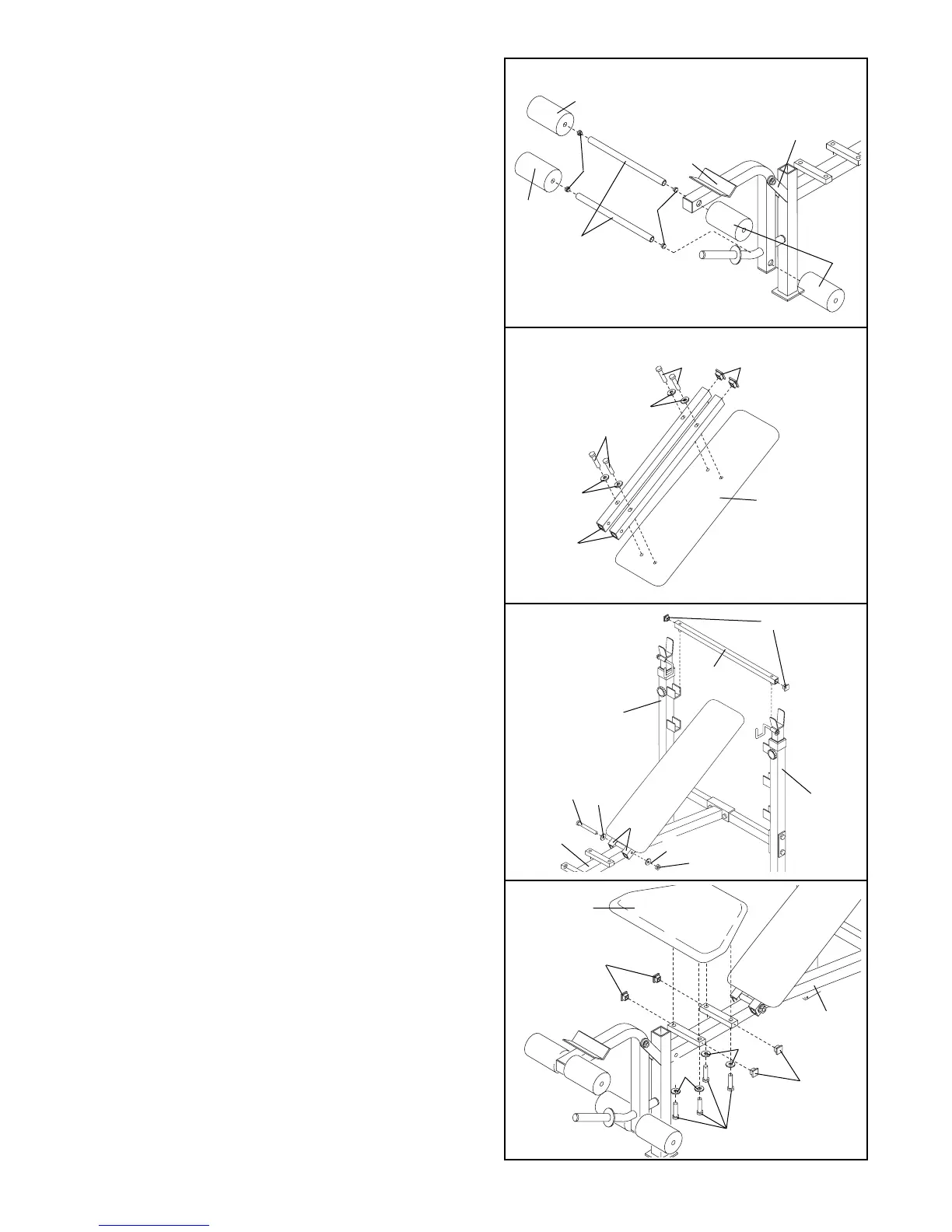

7. Press two 19mm Round Inner Caps (33) into each
Pad Tube (10).
Insert the Pad Tubes (10) into the holes in the Leg
Lever (4). Slide two Foam Pads (22) onto each Pad
Tube.
8. Press a 1Ó Square Inner Cap (18) into the indicated
end of each Backrest Tube (5).
Attach each Backrest Tube (5) to the Backrest (6)
with two M8 x 40mm Bolts (27) and two M8
Washers (17). The Backrest Tubes must be ori-
ented as shown. Do not tighten the four Bolts
yet.
9. Press a 1Ó Square Inner Cap (18) into each end of
the Support Tube (7). Set the Support Tube into the
highest set of adjustment brackets on the Uprights
(1, 15).
Lubricate the M10 x 130mm Bolt (9). Attach the
Backrest Tubes (5) to the Frame (2) with the Bolt,
two M10 Washers (29) and an M10 Nylon Locknut
(30). Do not overtighten the Nylon Locknut.
Rest the Backrest (6) on the Support Tube (7).
Tighten the four M8 x 40mm Bolts (27) securing the
support tubes to the seat (see Step 8).
10. Press a 1Ó Square Inner Cap (18) into each end of
the seat support brackets on the Frame (2).
Attach the Seat (11) to the seat support brackets on
the Frame (2) with four M8 x 40mm Bolts (27) and
four M8 Washers (17).
10
7
8
9
22
33
8
22
6
5
18
29
30
9
2
2
11
17
27
17
29
1
5
15
7
17
17
27
27
18
4
10
33
22
18
18
