11

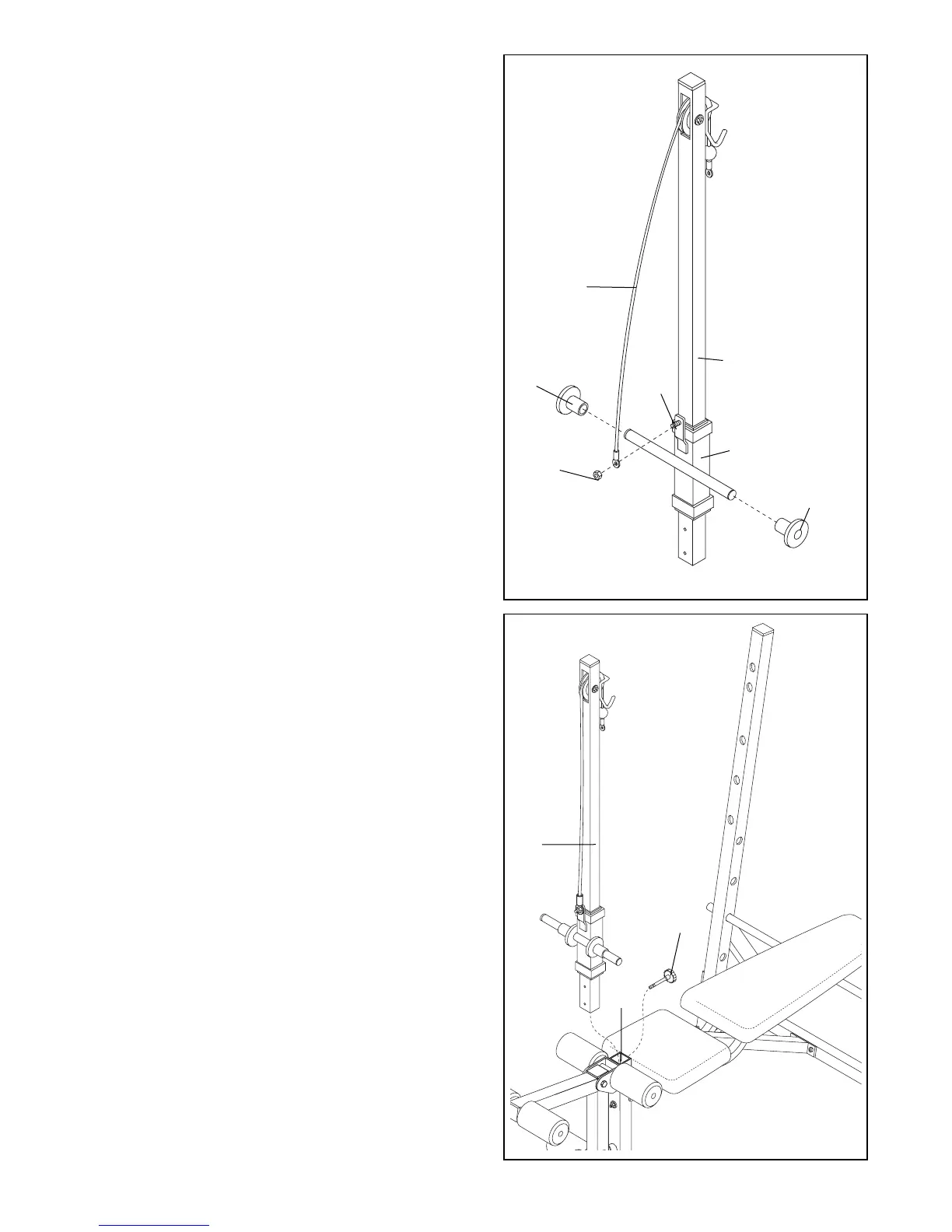

17. Insert the Lat Tower (9) into the Front Leg (19). The
Lat Tower must be turned as shown. Secure the
Lat Tower with the Adjustment Knob (36).
17
9
19
36
16. Slide the Weight Carriage (47) onto the Lat Tower (9).
Make sure the Weight Carriage is oriented as
shown.
Slide the closed loop on the Cable (45) onto the M10
x 19mm Bolt (46) in the bracket on the Weight
Carriage (47). Secure the Cable with an M10 Nylon
Locknut (11).
Slide a Weight Stop (53) onto each end of the weight
tube on the Weight Carriage (47).
16
47
53
46
53
11
45
9
