5

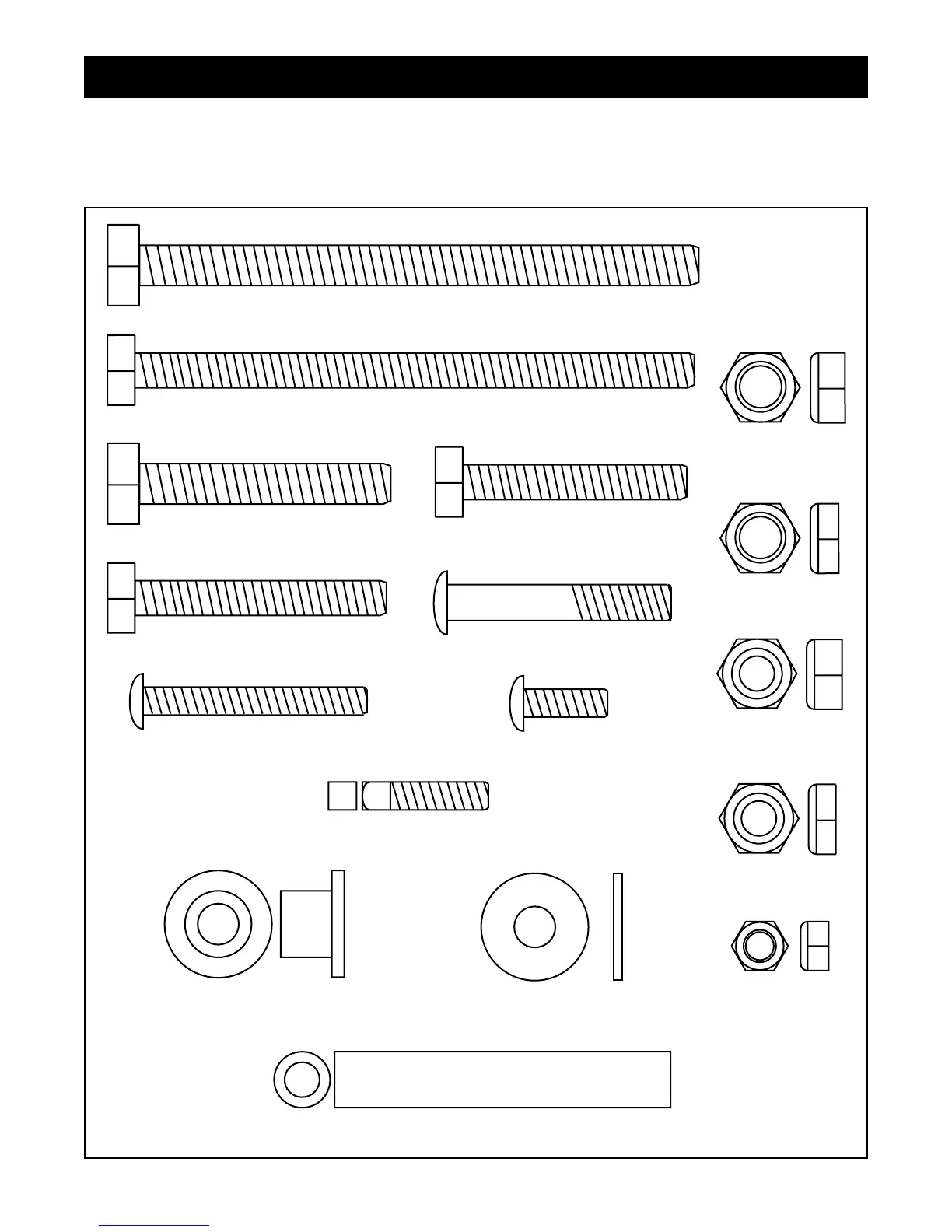

This chart is provided to help you identify the small
parts used in assembly. Important: Some parts may
have been pre-assembled for shipping purposes.
If you cannot find a part in the parts bags, check
to see if it has been pre-assembled. The number in
parenthesis below each part refers to the key number
of the part. The second number refers to the quantity
needed for assembly.
1/2" x 3" Plastic Spacer (36)–2
1/4" Nylon
Locknut (28)–2
Set Screw (20)–2
5/16" Jam Nut (25)–4
3/8" Jam Nut (18)–1
5/16" Nylon
Locknut (19)–7
3/8" Washer (9)–4
3/8" Plastic Sleeve (37)–4
3/8" x 5" Bolt (8)–2
5/16" x 5" Bolt (32)–2
3/8" x 2 1/4" Bolt (14)–1
5/16" x 2" Bolt (15)–1
5/16" x 2 1/4" Bolt (16)–6
5/16” x 2” Carriage Bolt (27)–2
1/4" x 2" Screw (33)–2
1/4" x 3/4" Screw (13)–6
3/8" Nylon
Locknut (43)–2
Part Identification Chart - Model No. WEBE14080
R1200A
