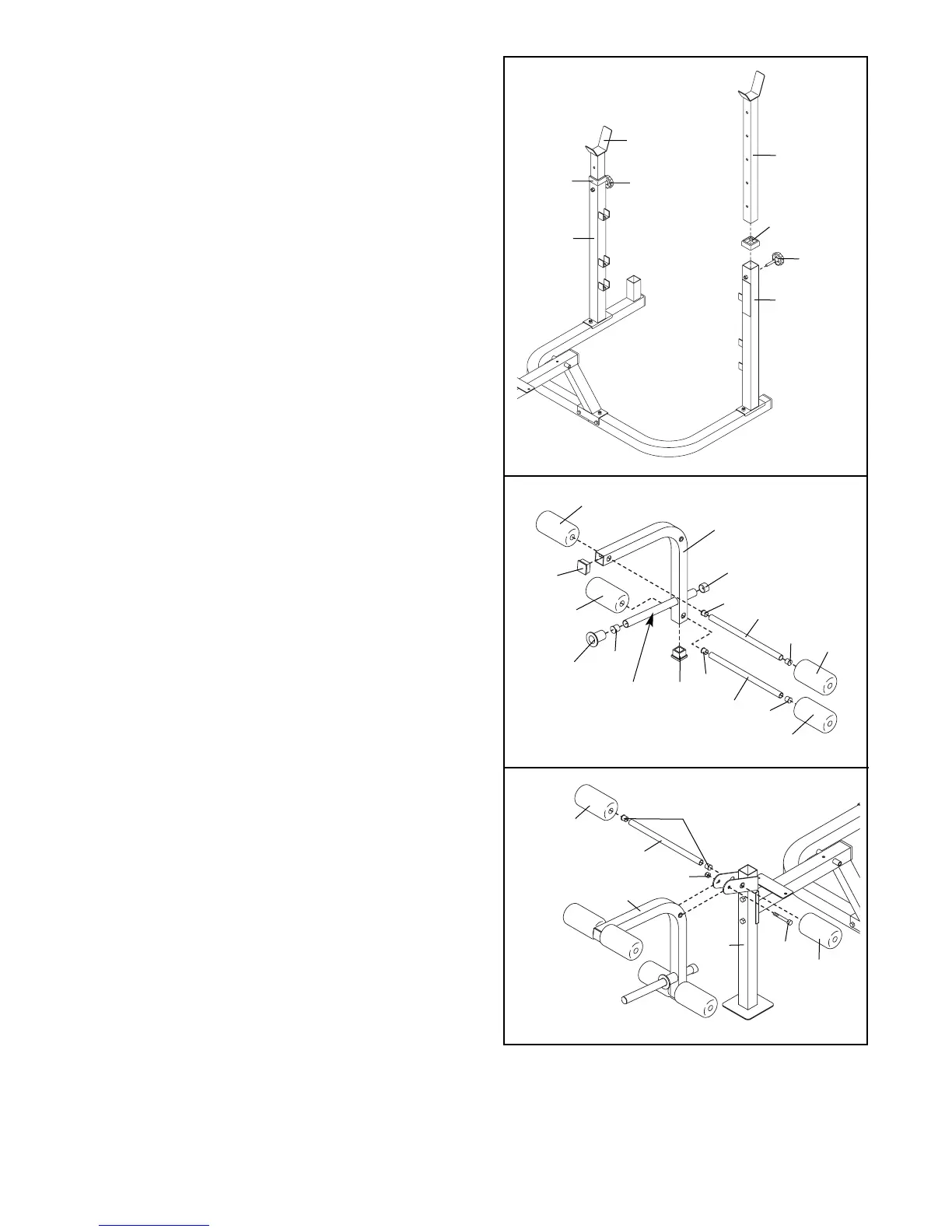

3. Press two 2” Square Bushings (23) onto the Left
and Right Uprights (4, 5). Slide the Weight Rests
(6) into the Uprights and secure them at the desired
height with two Long Adjustment Knobs (27). Both
Weight Rests should be set at the same height.
3
6
6
5
4
27
23
23
27
4. Press two 38mm Square Inner Caps (32) into the
ends of the Leg Lever (9). Press a 1” Round Inner
Cap (21) into the indicated end of the weight tube.
Slide a Weight Stop (34) over the weight tube.
Press a 1” Round Angle Cap (28) onto the opposite
end of the weight tube.
Press four 3/4” Round Inner Caps (18) into the
ends of two Pad Tubes (19). Slide the Pad Tubes
into the holes at the ends of the Leg Lever (9).
Slide four Foam Pads (33) onto the ends of the Pad
Tubes.
4
33
32
34
Weight
Tube
32
33
33
21
33
18
18
18
18
19
19
28
9
5. Press two 3/4” Round Inner Caps (18) into the ends
of a Pad Tube (19). Slide the Pad Tube into the
large hole in the Front Leg (2) as shown. Slide a
Foam Pad (33) onto each end of the Pad Tube.
Attach the Leg Lever (9) to the Front Leg (2) using
an M10 x 64mm Bolt (12) and an M10 Nylon
Locknut (11). Do not overtighten the Nylon
Locknut; the Leg Lever must be able to pivot
freely.
5
33
33
12
9
11
18
19
2
