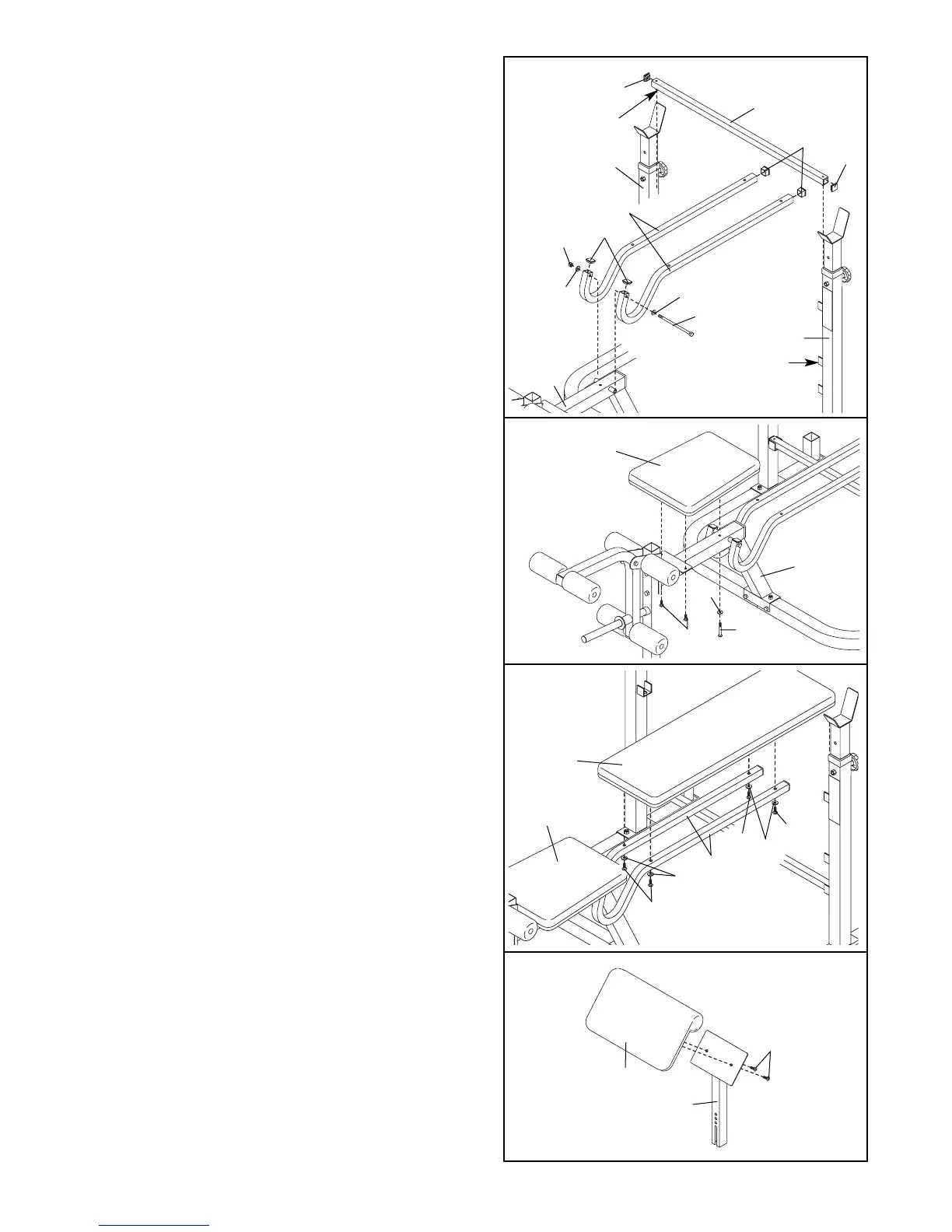

6. Press two 1” Square Inner Caps (7) into the ends of
both Backrest Tubes (20).
Lubricate the M10 x 168mm Bolt (8) with grease.
Attach the Backrest Tubes (20) to the Bench Frame
(1) with the Bolt, two M10 Washers (29), and an
M10 Nylon Locknut (11). Do not overtighten the
Nylon Locknut; the Backrest Tubes must be
able to pivot freely.
Press two 25mm x 38mm Square Inner Caps (39)
into the Adjustment Tube (37). Slide the Adjustment
Tube into the adjustment brackets on the Uprights
(4, 5) with the pins on the Adjustment Tube facing
downward.
7. Attach the Seat (16) to the Bench Frame (1) using
two M6 x 16mm Screws (31), an M6 x 62mm Screw
(38), and an M6 Washer (26).
6
7
8
29
29
1
39
Pin
Bracket
39
37
4
5
7
16
31
1
38
26
7
20
8. Attach the Backrest (15) to the Backrest Tubes (20)
using four M6 x 38mm Screws (14) and four M6
Washers (26).
Make sure that the Backrest (15) is oriented so
that there is a gap between the Backrest and the
Seat (16).
8
26
20
15
16
14
14
14
26
9
9. Attach the Curl Pad (17) to the Curl Post (13) using
two M6 x 16mm Screws (31).
17
13
31
11
