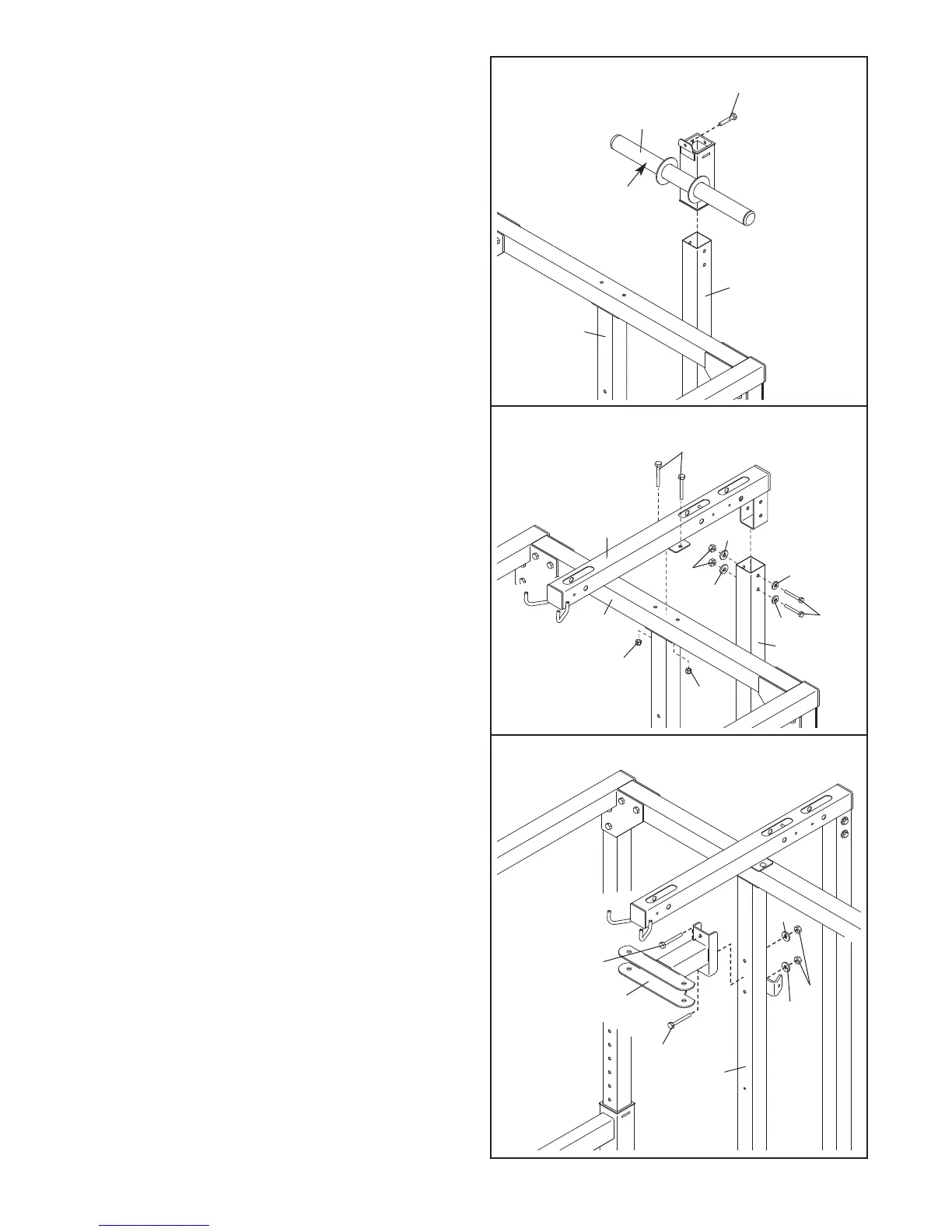

12. Insert an M10 x 19mm Bolt (102) into the bracket
on the Weight Carriage (62) from the side shown.
Slide the Weight Carriage (62) onto the Weight
Guide Upright (42) so that the weight tube is
toward the Center Upright (45).
14. Attach the Butterfly Bracket (55) to the Center
Upright (45) with two M10 x 78mm Bolts (32), two
M10 Washers (35), and two M10 Nylon Locknuts
(34).
13. Attach the Weight Guide Top Frame (49) to the
Weight Guide Upright (42) with two M10 x 75mm
Bolts (92), four M10 Washers (35), and two M10
Nylon Locknuts (34).
Do not tighten the
Locknuts yet.
Attach the Weight Guide Top Frame (49) to the
Center Top Frame (46) with two M10 x 78mm
Bolts (32) and two M10 Nylon Locknuts (34).
Tighten the M10 Nylon Locknuts (34) used in
steps 1–13.
12
13
42
45
49
46
34
34
92
35
35
35
35
34
42
32
102
62
Weight
Tube
14
45
35
35
34
55
32
32
To Next Page
