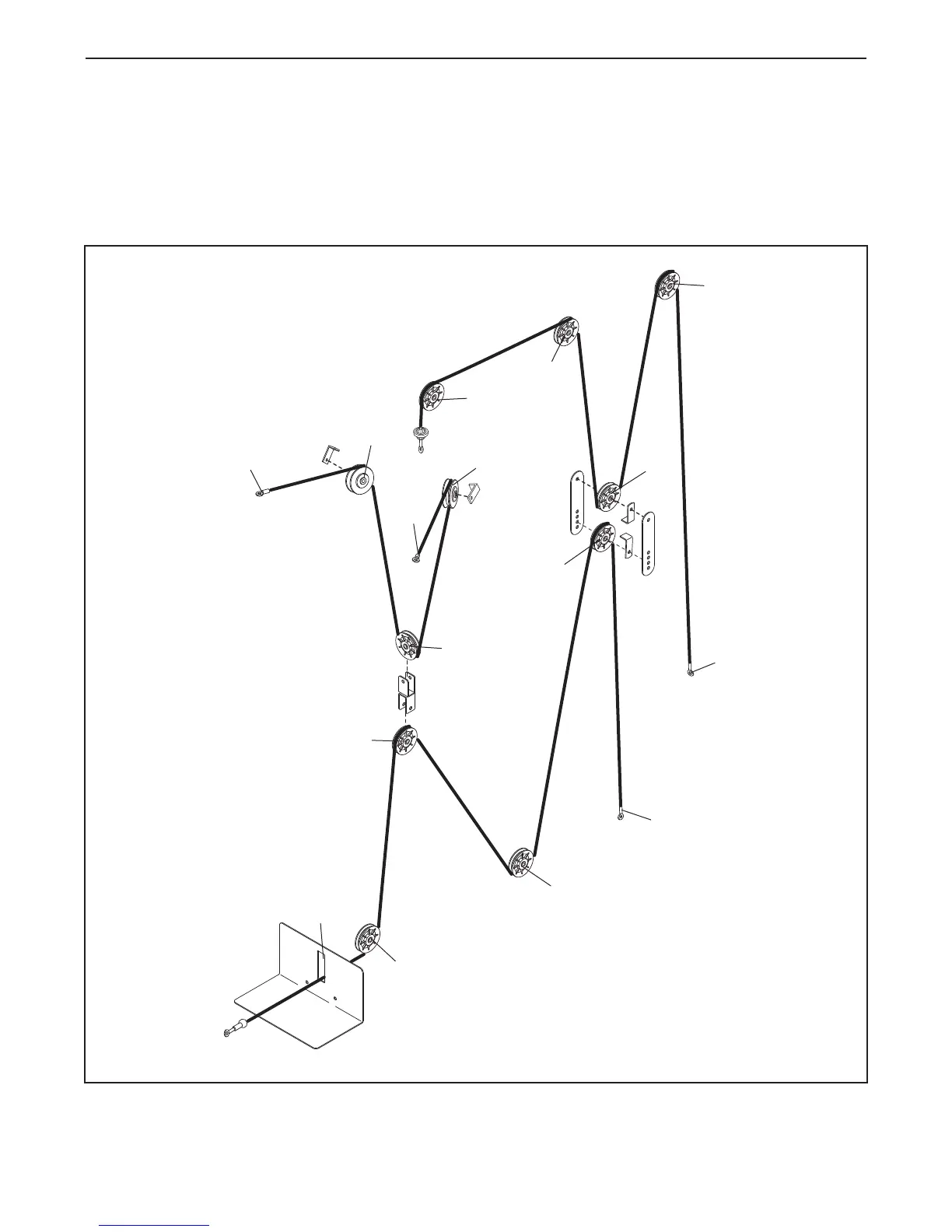

CABLE DIAGRAMS
The cable diagrams below show the proper routing of the Butterfly Cable (31), the Long Cable (68), and the
Medium Cable (69). Use the diagram to make sure that the cables and the cable traps have been assembled
correctly. If the cables have not been correctly routed, the weight rack will not function properly and damage
may occur. The numbers show the correct route for each cable.
Make sure that the cable traps do not touch
or bind the cables.
23
1
2
3
4
6
1
2
3
4
5
1
2
Long Cable (68)
Length: 5.57m
Butterfly Cable (31)
Length: 1.74m
Medium Cable (69)
Length: 2.93m
3
4
5
5
To Next Page
