13

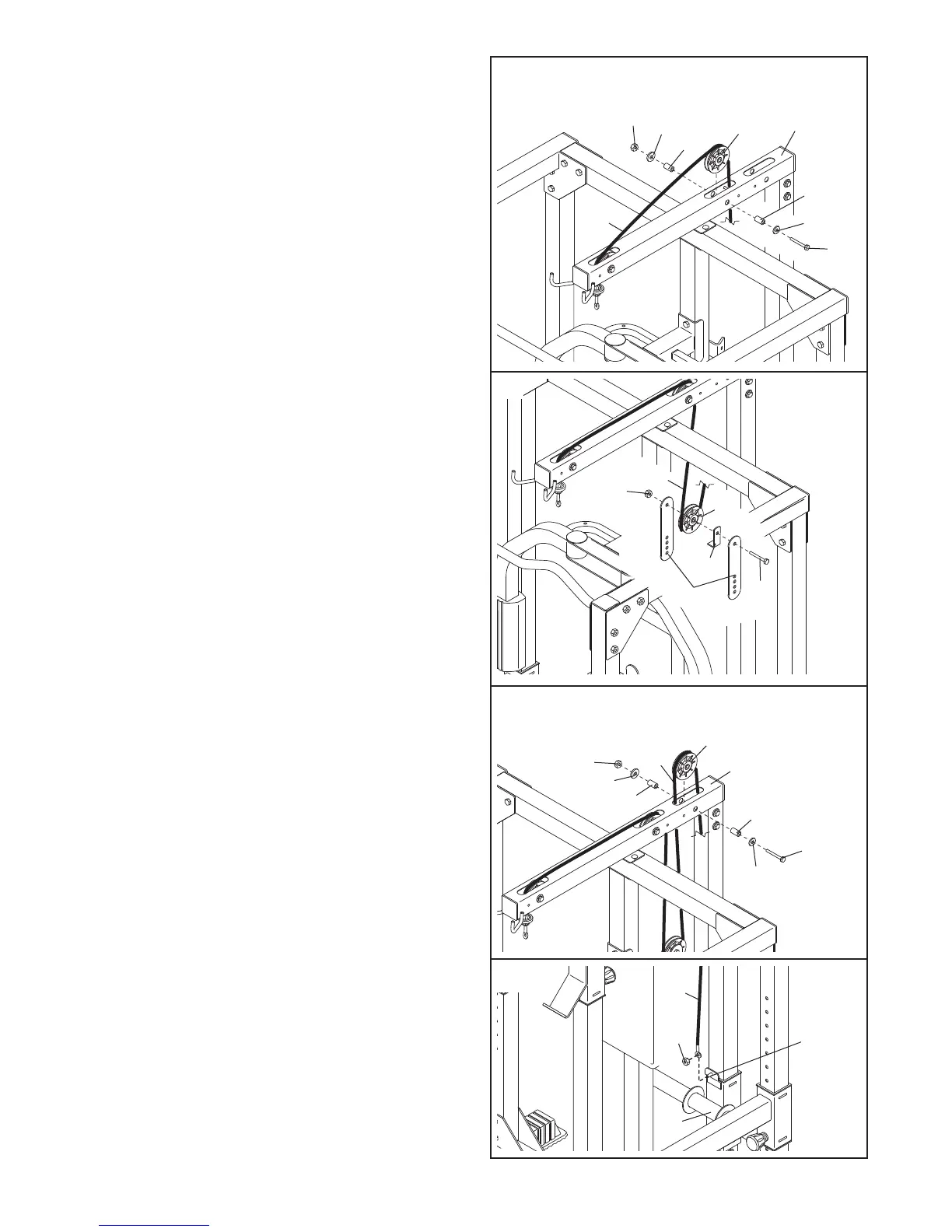

19. Wrap the Medium Cable (69) under a Pulley (87).
Attach the Pulley and a Cable Trap (88) to the
indicated hole in the Pulley Plates (82) with an
M10 x 45mm Bolt (33) and an M10 Nylon Locknut
(34).
Make sure the Cable Trap is oriented to
hold the Cable in the groove of the Pulley.
21. Attach the Medium Cable (69) to the M10 x
19mm Bolt (102) in the W
eight Carriage (62) with
an M10 Nylon Locknut (34).
20. Route the Medium Cable (69) up through the
Weight Guide Top Frame (49), over a Pulley (87),
and back down through the Top Frame. Attach
the Pulley inside the Top Frame with an M10 x
75mm Bolt (92), two M10 W
ashers (35), two
17mm Spacers (89), and an M10 Nylon Locknut
(34).
18. Route the Medium Cable (69) over a Pulley (87)
and down through the Weight Guide Top Frame
(49).
Attach the Pulley inside the Top Frame with
an M10 x 75mm Bolt (92), two M10 Washers
(35), two 17mm Spacers (89), and an M10 Nylon
Locknut (34).
69
89
89
49
35
35
92
18
34
87
69
82
33
19
20
21
34
88
69
89
89
49
35
35
34
62
69
102
92
34
87
87
