Weider WEEVSY2996.1 - Page 16

16

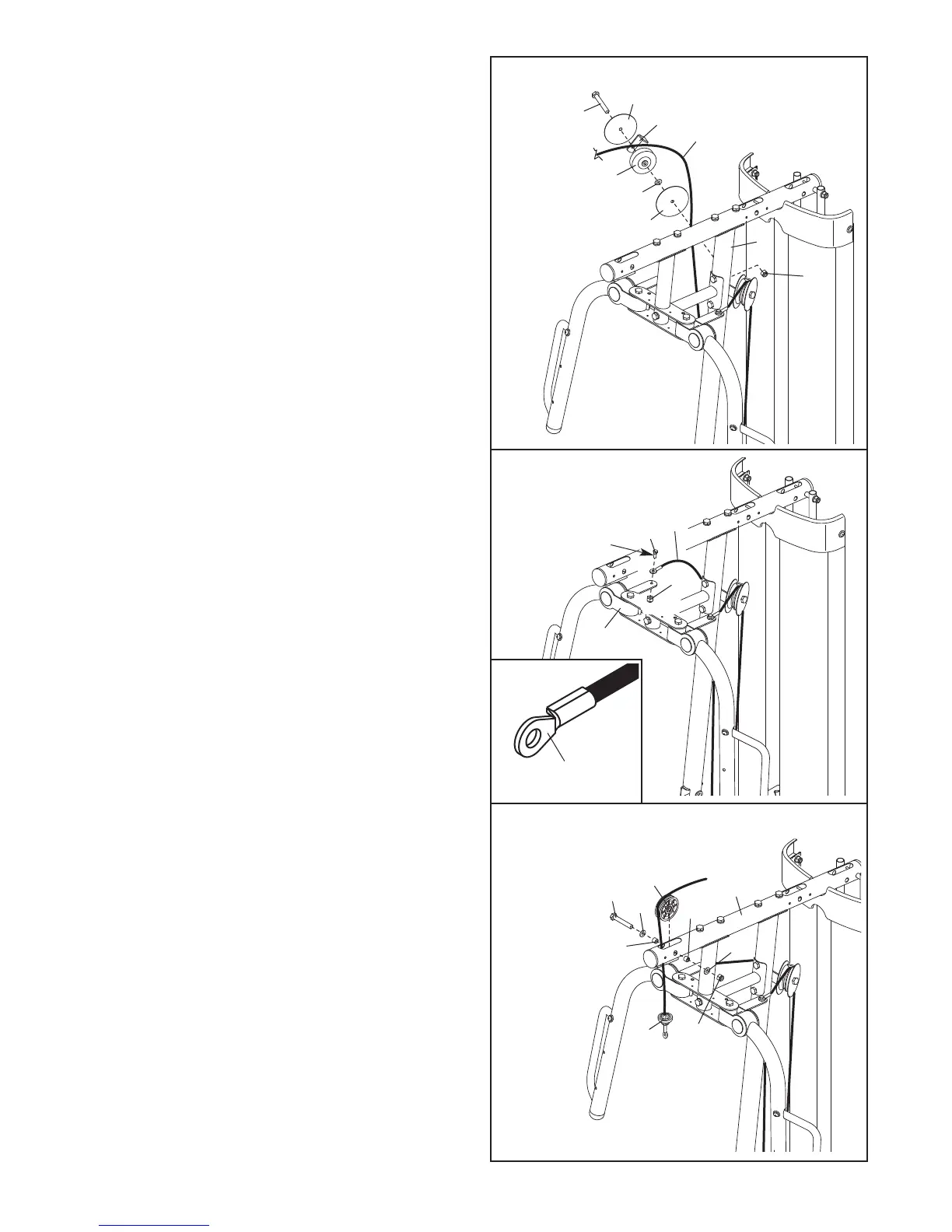

22. Wrap the Butterfly Cable (50) over a “V”-pulley
(
47). Attach the “V”-pulley, a Long Cable Trap
(57), an M10 Washer (80), and two Guards (54)
to the Upright (2) with an M10 x 60mm Bolt (79)
and an M10 Nylon Locknut (77).
23. Grease an M8 x 22mm Shoulder Bolt (90). Attach
the Butterfly Cable (50) to the Right Butterfly
Bracket (29) with the Shoulder Bolt and an M8
Nylon Locknut (78).
Make sure the flat edge of
the Cable is against the Butterfly Bracket.
24. Identify the Lat Cable (49). Route the Cable up
through the
T
op Frame (4) and over a 90mm
Pulley (48). Attach the Pulley inside the Top
Frame with an M10 x 80mm Bolt (84), two M10
W
ashers (80), two 19mm Spacers (67), and an
M10 Nylon Locknut (77).
2
2
23
90
50
29
78
57
50
2
77
5
4
54
47
80
7
9
24
84
80
80
77
67
67
48
4
49
Flat Edge
Grease
