Weider WEEVSY2996.1 - Seat Assembly

22

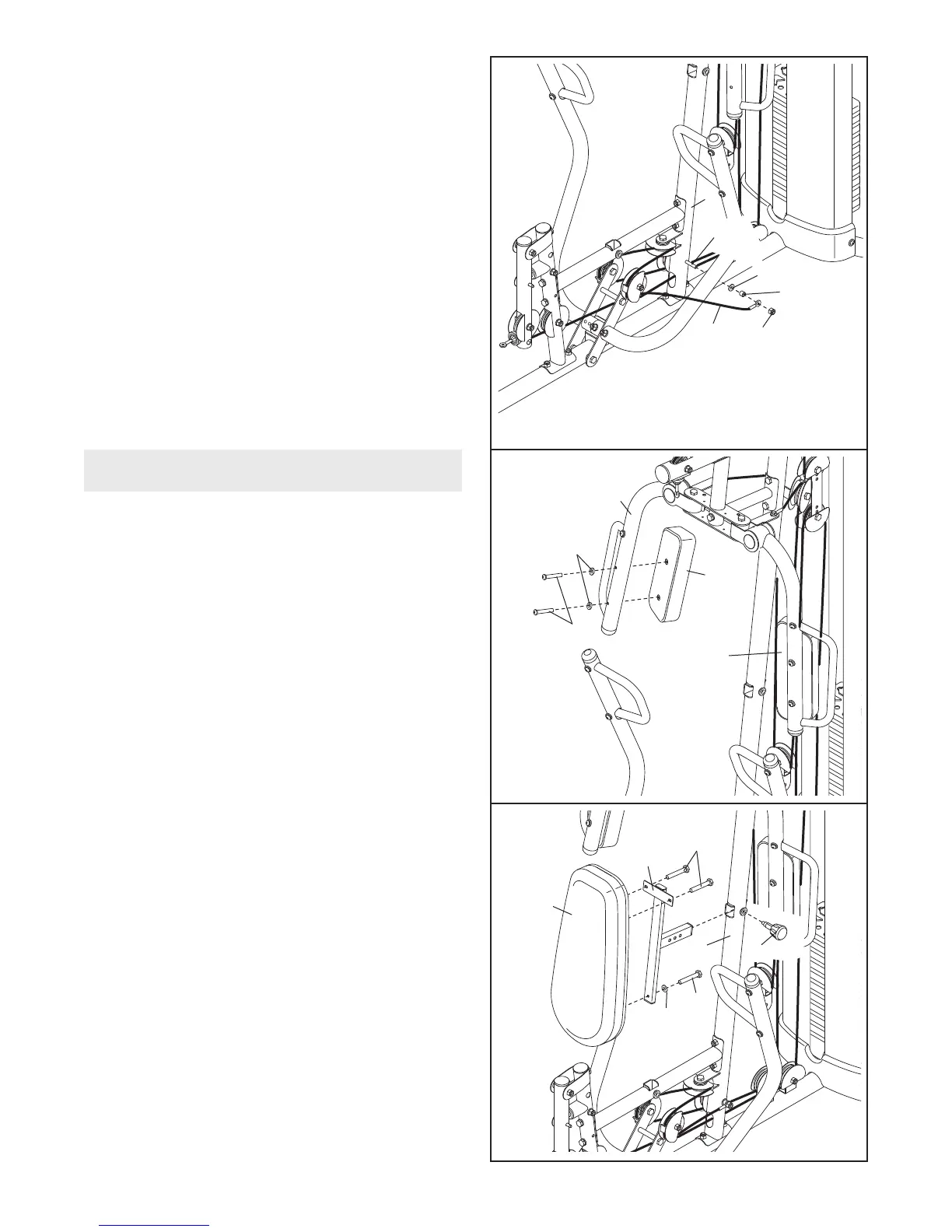

40. Attach the Leg Lever Cable (51) to the Upright (2)
with the M10 x 120mm Bolt (115), an M10
W
asher (80), a 7mm Spacer (111), and an M10
Nylon Locknut (77).
41. Attach the Right Butterfly Pad (35) to the Right
Butterfly Arm (26) with two M6 x 60mm Button
Screws (91) and two M6 Washers (114).
Repeat this step for the Left Butterfly Pad (34).
42.
Attach the Backrest (31) to the Backrest Frame
(7) with two M6 x 16mm Screws (88), an M6 x
32mm Screw (89), and an M6 Washer (114).
Insert the Backrest Frame (7) into the Upright (2)
and tighten the Backrest Adjustment Knob (53)
into the Upright.
Make sure the
Adjustment
Knob passes through one of the holes in the
Backrest Frame.
40
41
26
35
34
114
91
2
115
51
77
80
111
42
114
89
53
2
7
88
31
Seat Assembly
