15

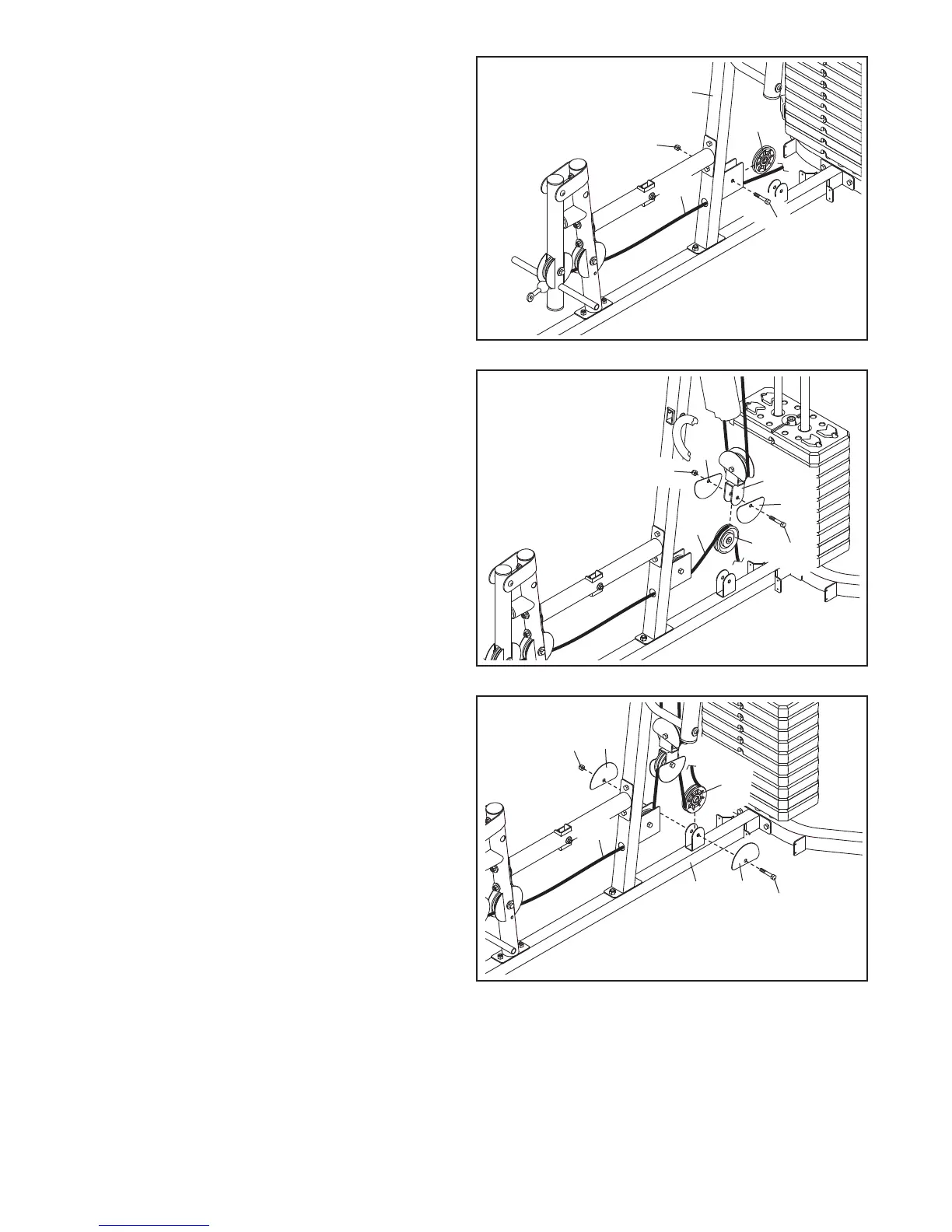

21. Route the Low Cable (53) through the Upright
(3) and under a Thick Pulley (48).
A
ttach the Thick Pulley (48) inside the Upright
(3) with an M10 x 46mm Bolt (81) and an M10
L
ocknut (56).
22. Route the Low Cable (53) over a Thick Pulley
(48).
Attach the Thick Pulley (48) and two Half
Guards (43) to the Double U-bracket (63) with
an M10 x 46mm Bolt (81) and an M10 Locknut
(56). Make sure that the Half Guards are on
the outside of the Double U-bracket as
shown.
21
56
22
48
81
81
3
23. Route the Low Cable (53) under a Thick Pulley
(48).
Attach the Thick Pulley (48) and two Half
Guards (43) to the Base (1) with an M10 x
46mm Bolt (81) and an M10 Locknut (56). Make
sure that the Half Guards are on the outside
of the bracket as shown.
23
43
1
43
81
56
48
63
43
43
53
48
56
53
53
