Weider WEEVSY30810.0 - Cable Assembly

12
13

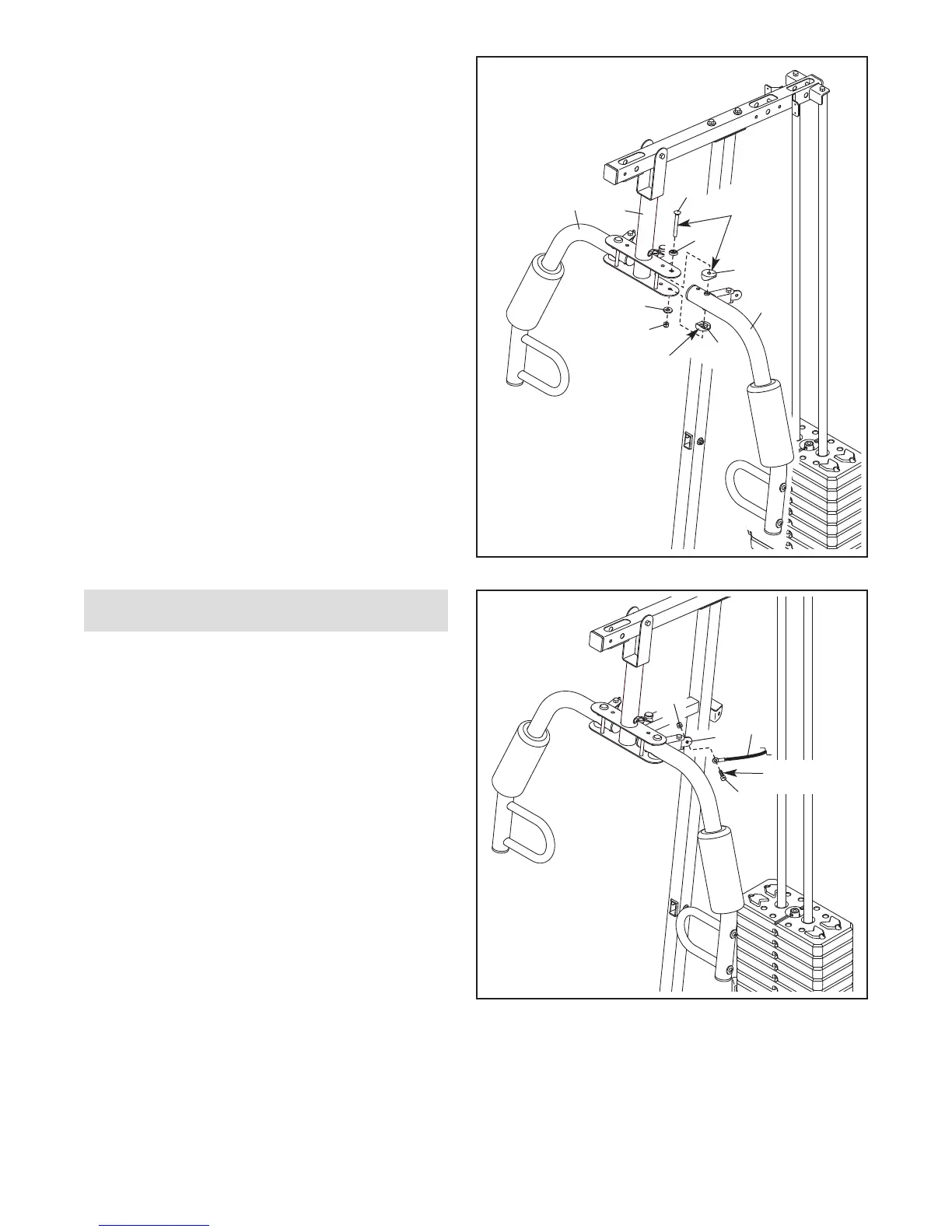

13. Apply grease to an M10 x 86mm Carriage Bolt
(67) and to two Arm Bushings (44).
A
ttach the Left Arm (10) to the Pivot Frame (5)
with the M10 x 86mm Carriage Bolt (67), a
C
arriage Bolt Bushing (20), the two Arm
Bushings (44), an M10 Washer (57), and an
M10 Locknut (56). Do not overtighten the
Locknut; the Left Arm must pivot easily.
Attach the Right Arm (9) to the Pivot Frame
(5) in the same way.
10
9
44
56
6
7
57
20
5
44
Grease
Grease
14. See the CABLE DIAGRAM on page 24 to
identify the cables as you assemble them.
Identify the Arm Cable (54).
Apply grease to an M8 x 22mm Shoulder Bolt
(65).
Attach the Arm Cable (54) to the left Cable
Pivot (39) with the M8 x 22mm Shoulder Bolt
(65) and an M8 Locknut (58).
58
65
54
39
14
Cable Assembly
Grease
