11

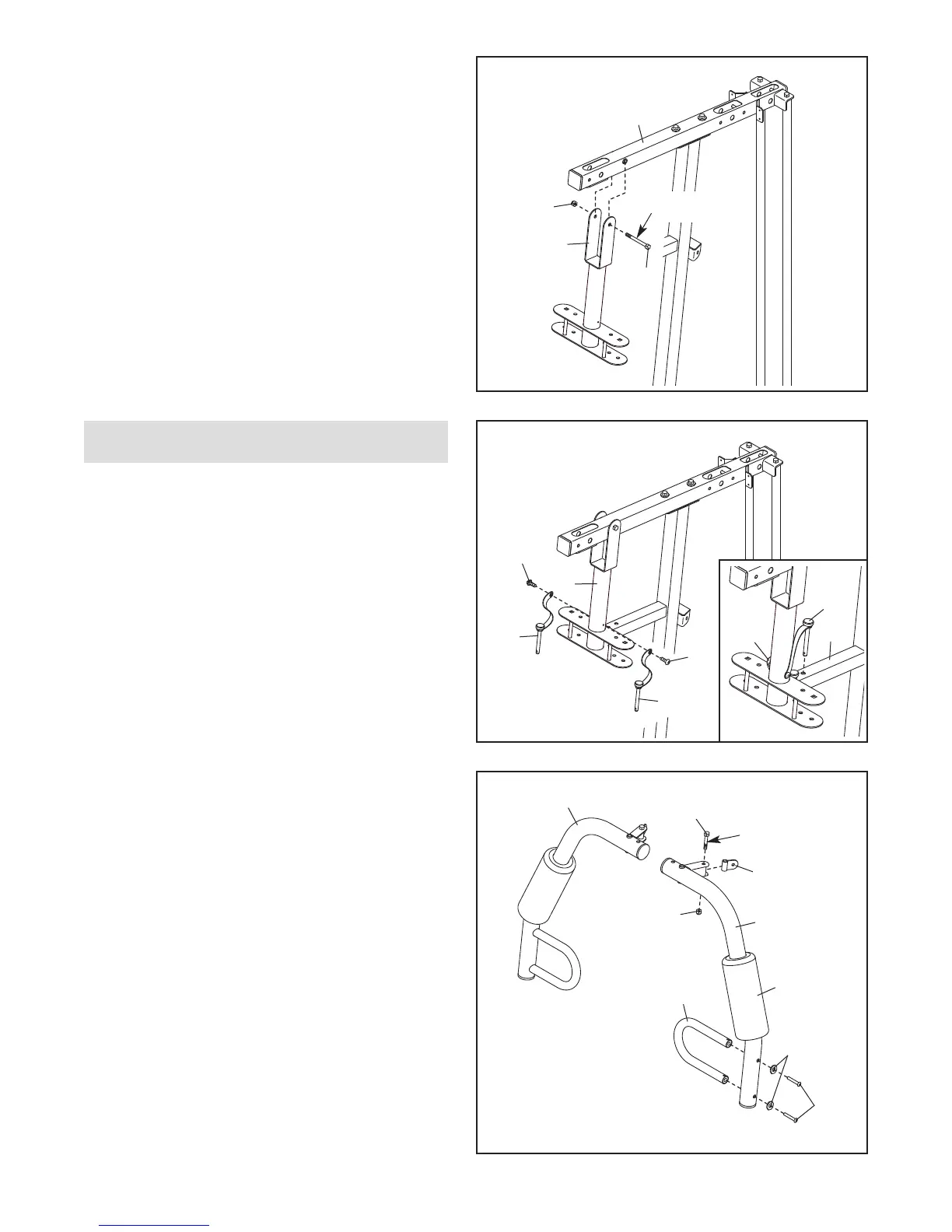

10. Apply grease to an M10 x 77mm Bolt (79).
Attach the Pivot Frame (5) to the Top Frame (4)
w
ith the M10 x 77mm Bolt (79) and an M10
Locknut (56). Do not overtighten the Locknut;
t
he Pivot Frame must pivot easily.
11
Arm Assembly
11. Attach the two Arm Pins (40) to the Pivot Frame
(5) with two M4 x 20mm Self-tapping Screws
(69).
See the inset drawing. Insert the Arm Pins
(40) into the indicated holes in the Upright (3).
5
69
69
40
40
12
11
10
39
57
77
66
56
9
42
Grease
12. Apply grease to an M10 x 51mm Bolt (66).
Attach a Cable Pivot (39) to the Left Arm (10)
with the M10 x 51mm Bolt (66) and an M10
Locknut (56). Do not overtighten the Locknut;
the Cable Pivot must pivot easily.
Wet the inside of a Large Foam Pad (42) with
soapy water. Slide the Large Foam Pad onto
the Left Arm (10).
Attach a Handle (11) to the Left Arm (10) with
two M10 x 25mm Button Screws (77) and two
M10 Washers (57).
Assemble the Right Arm (9) in the same way.
40
3
40
10
4
5
79
56
Grease
To Next Page
