Weider WEEVSY30810.0 - Page 10

10
7
56
57
71
56
21

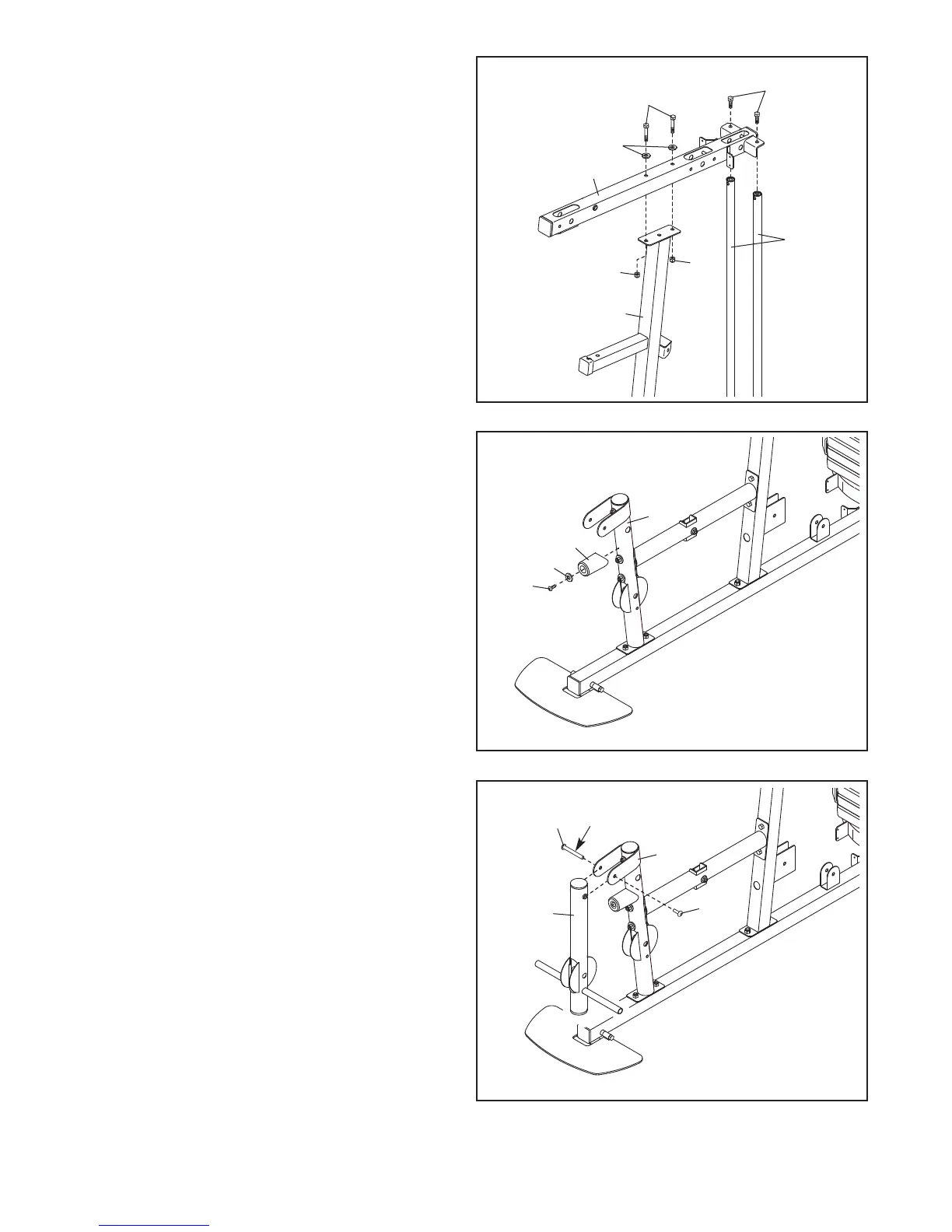

8. Attach the Leg Bumper (60) to the Front Leg (7)
with an M4 x 20mm Self-tapping Screw (69)
and an M4 Washer (33). Make sure that the
end of the Leg Bumper is pointing upward.
9. Apply grease to an M10 x 64mm Bolt Set (76).
Attach the Leg Lever (8) to the Front Leg (7) with
the M10 x 64mm Bolt Set (76). Make sure that
the barrel of the Bolt Set is inserted through
both sides of the bracket on the Front Leg.
8
9
7. Attach the Top Frame (4) to the Upright (3) with
two M10 x 67mm Bolts (71), two M10 Washers
(57), and two M10 Locknuts (56). Do not
t
ighten the Locknuts yet.
A
ttach the Top Frame (4) to the Weight Guides
(21) with two M10 x 25mm Bolts (74). Do not
tighten the Bolts yet.
See steps 2 to 7. Tighten the M10 Locknuts
(56) and the M8 Locknuts (58).
4
3
7
7
4
76
76
Grease
60
33
69
8
7
