ARM ASSEMBLY
FRAME ASSEMBLY

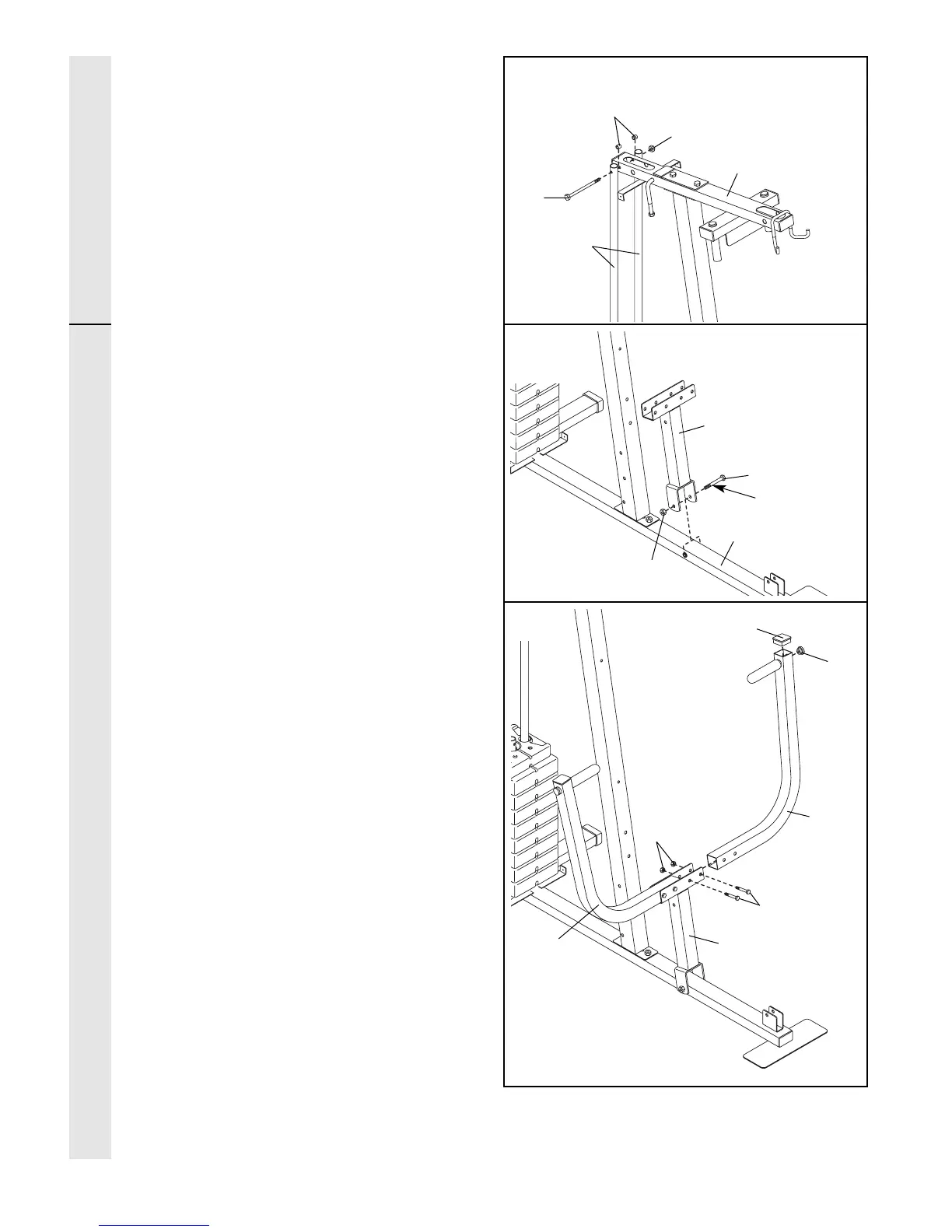

8. Attach the Top Frame (55) to the Weight
Guides (62) using a 5/16” x 6” Bolt (60), two
1/2” x 1/2” Spacers (61), and a 5/16” Nylon
Locknut (3) as shown.
Tighten all Nylon Locknuts used in steps 3
through 8.
9. Lubricate a 3/8” x 4” Bolt (16). Attach the
Press Frame (17) to the Base (4) using the
Bolt and a 3/8” Nylon Locknut (21). Do not
overtighten the Nylon Locknut; the Press
Frame must be able to pivot freely.
10. Press a 1 3/4” Square Inner Cap (44) and a
1” Round Inner Cap (49) into the indicated
end of each Press Arm (46).
Attach a Press Arm (46) to the Press Frame
(17) using two 5/16” x 2 1/2” Bolts (22) and
two 5/16” Nylon Locknuts (3).
Attach the other Press Arm (46) in the same
manner.
10
8
17
16
Lubricate
21
4
46
17
44
49
22
3
46
60
62
3
61
55
9
10
To Next Page
