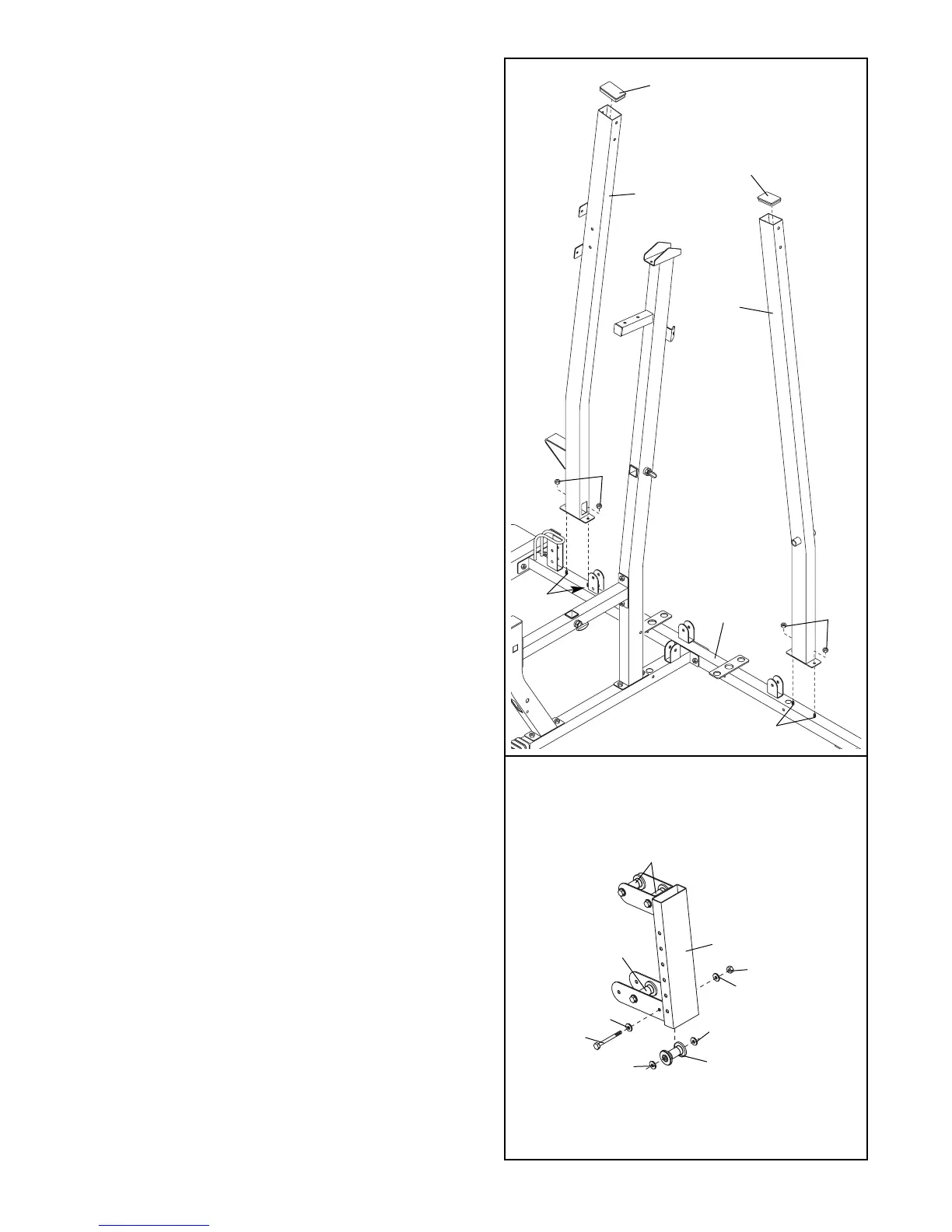

7. Press a 2” x 3” Inner Cap (58) into the top of the
Squat Upright (4). Slide the Squat Upright onto the
two indicated 5/16” x 2 1/2” Carriage Bolts (110) in
the Long Base (120). Finger tighten a 5/16” Nylon
Locknut (86) onto each Carriage Bolt. Do not tight-
en the Nylon Locknuts yet.
Press a 2” x 3” Inner Cap (58) into the top of the
VKR Upright (5). Slide the VKR Upright onto the
two indicated 5/16” x 2 1/2” Carriage Bolts (110) in
the Long Base (120). Finger tighten a 5/16” Nylon
Locknut (86) onto each Carriage Bolt. Do not tight-
en the Nylon Locknuts yet.
7
8
58
58
5
4
120
86
86
110
110
8. Attach a Roller (39) and two 5/16” Washers (90)
between the indicated set of holes in the Squat
Slider (38) with a 5/16” x 3 1/2” Bolt (94), two 5/16”
Washers (90), and a 5/16” Nylon Locknut (86) as
shown.
Assemble the other three Rollers (39) to the
Squat Slider (38) in the same manner.
39
39
39
90
90
90
94
86
90
38
