20

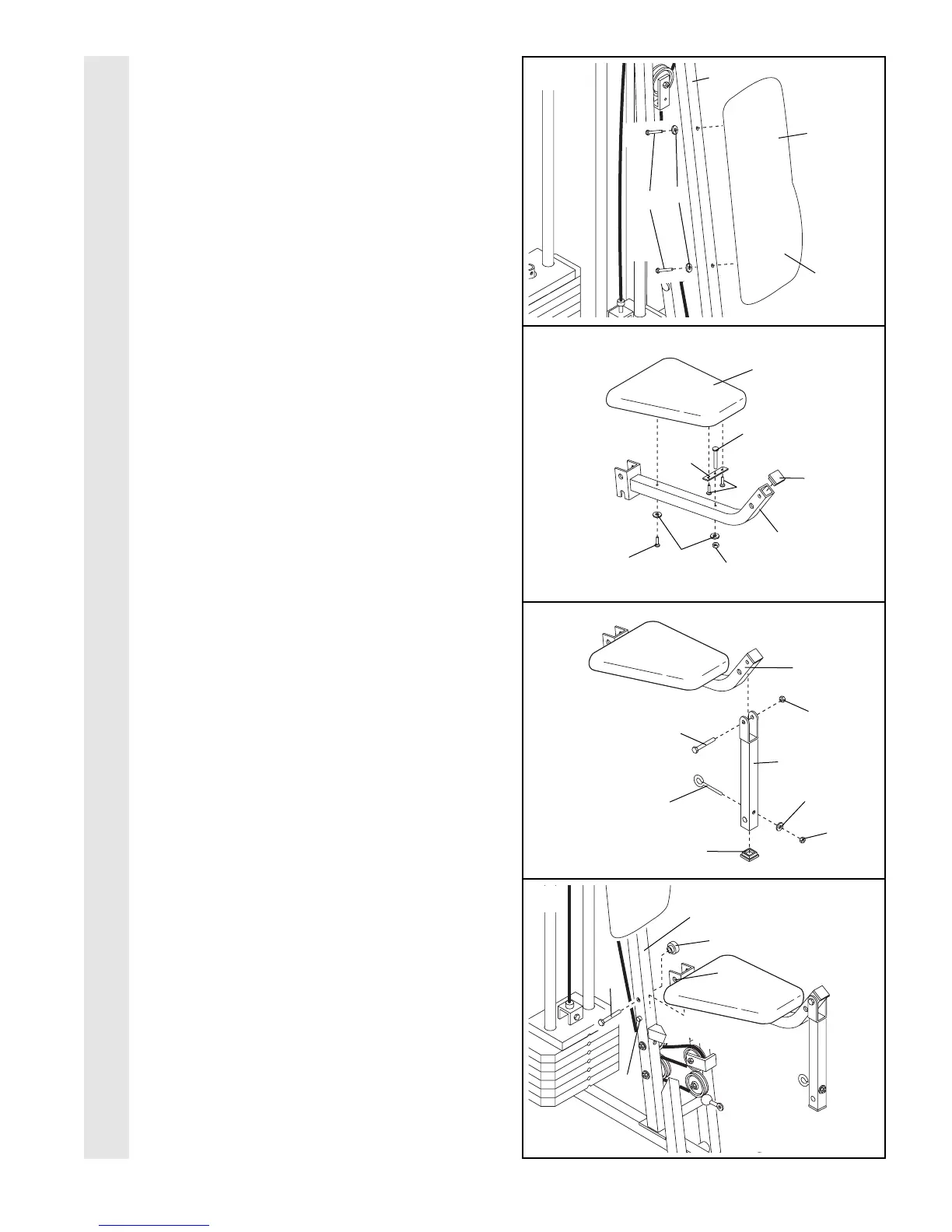

43. Attach the Front Backrest (41) to the Front
Upright (42) with two 1/4” x 2 1/2” Screws (43)
and two 1/4” Flat Washers (10). The Backrest
must be oriented as shown.
44. Press a 1 1/2” Square Inner Cap (32) into the
Front Seat Frame (36).
Insert a 1/4” x 2” Carriage Bolt (38) through
the center hole in the Seat Plate (37). Attach
the Seat Plate to the Seat (13) with two 1/4” x
3/4” Screws (18).
Insert the 1/4” x 2” Carriage Bolt (38) through
the indicated hole in the Front Seat Frame
(36). Tighten a 1/4” Nylon Locknut (2) with a
1/4” Flat Washer (10) onto the Carriage Bolt.
Attach the other end of the Seat (13) to the
Front Seat Frame (36) with a 1/4” Flat Washer
(10) and a 1/4” x 2” Machine Screw (81).
45. Press a 1 1/2” Square Inner Cap (32) into the
Leg Lever (29).
Lubricate the 5/16” x 2 1/4” Bolt (33). Attach the
Leg Lever (29) to the Front Seat Frame (36)
with the Bolt and a 5/16” Nylon Locknut (3).
Insert the 5/16” x 2” Eyebolt (35) into the Leg
Lever (29) from the direction shown. Tighten a
5/16” Nylon Locknut (3) with a 5/16” Flat
Washer (8) onto the Eyebolt.
46. Rest the Front Seat Frame (36) on the indicat-
ed pin in the Front Upright (42). Attach the
Front Seat Frame to the Front Upright with the
5/16” x 2 3/4” Carriage Bolt (14) and the Seat
Knob (40).
SEAT ASSEMBLY
46
43
41
Thick
End
42
44
45
10
13
38
32
36
10
81
37
2
3
8
3
29
Lubricate—33
35
32
18
43
36
36
42
40
14
Pin
To Next Page
