40. Locate and open the parts bag labeled
“SEAT ASSEMBLY.”
Insert a 1/4” x 2 1/2” Carriage Bolt (92)
through the center hole in a Seat Plate (37).
Attach the Seat Plate to the Rear Backrest
(85) with two 1/4” x 3/4” Screws (18).
Insert the 1/4” x 2 1/2” Carriage Bolt (92)
through the indicated hole in the Leg Press
Upright (56). Tighten a 1/4” Nylon Locknut (2)
with a 1/4” Flat Washer (10) onto the Carriage
Bolt. Attach the top of the Rear Backrest (85)
to the Leg Press Upright with a 1/4” x 2 1/2”
Screw (43) and a 1/4” Flat Washer (10).
41. Attach one end of a Seat (13) to the Rear
Seat Frame (100) with two 1/4” x 3/4” Screws
(18). Attach the other end of the Seat to the
Rear Seat Frame with a 1/4” Flat Washer (10)
and a 1/4” x 2 1/2” Screw (43).
42. Attach the Assist Seat (104) and the Angle
Bracket (110) to the Assist Arm (105) with four
1/4” Flat Washers (10) and four 1/4” x
2 1/2” Screws (43).

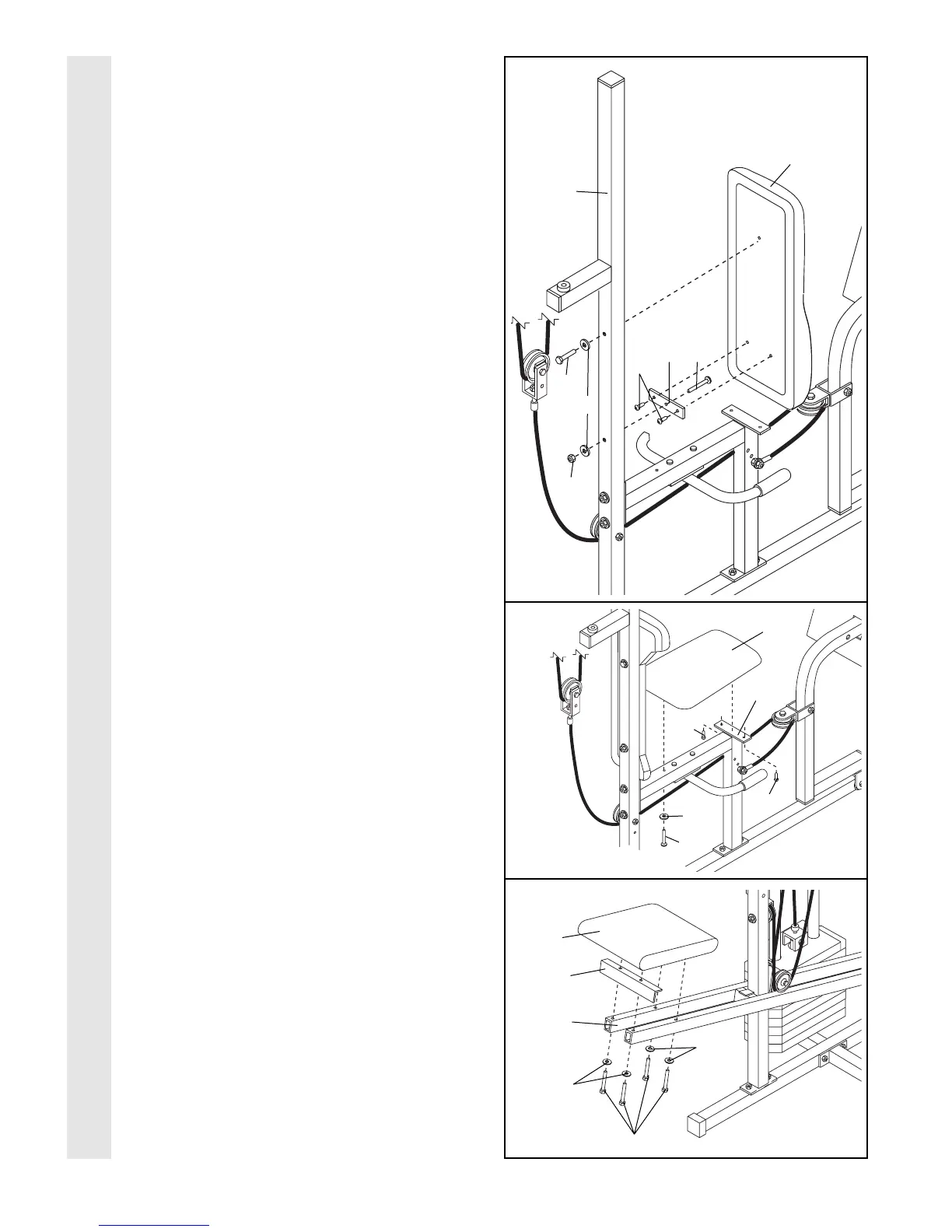

SEAT ASSEMBLY
42
40
41
85
2
10
18
92
56
37
43
18
18
13
10
43
10
10
43
104
105
100
110
