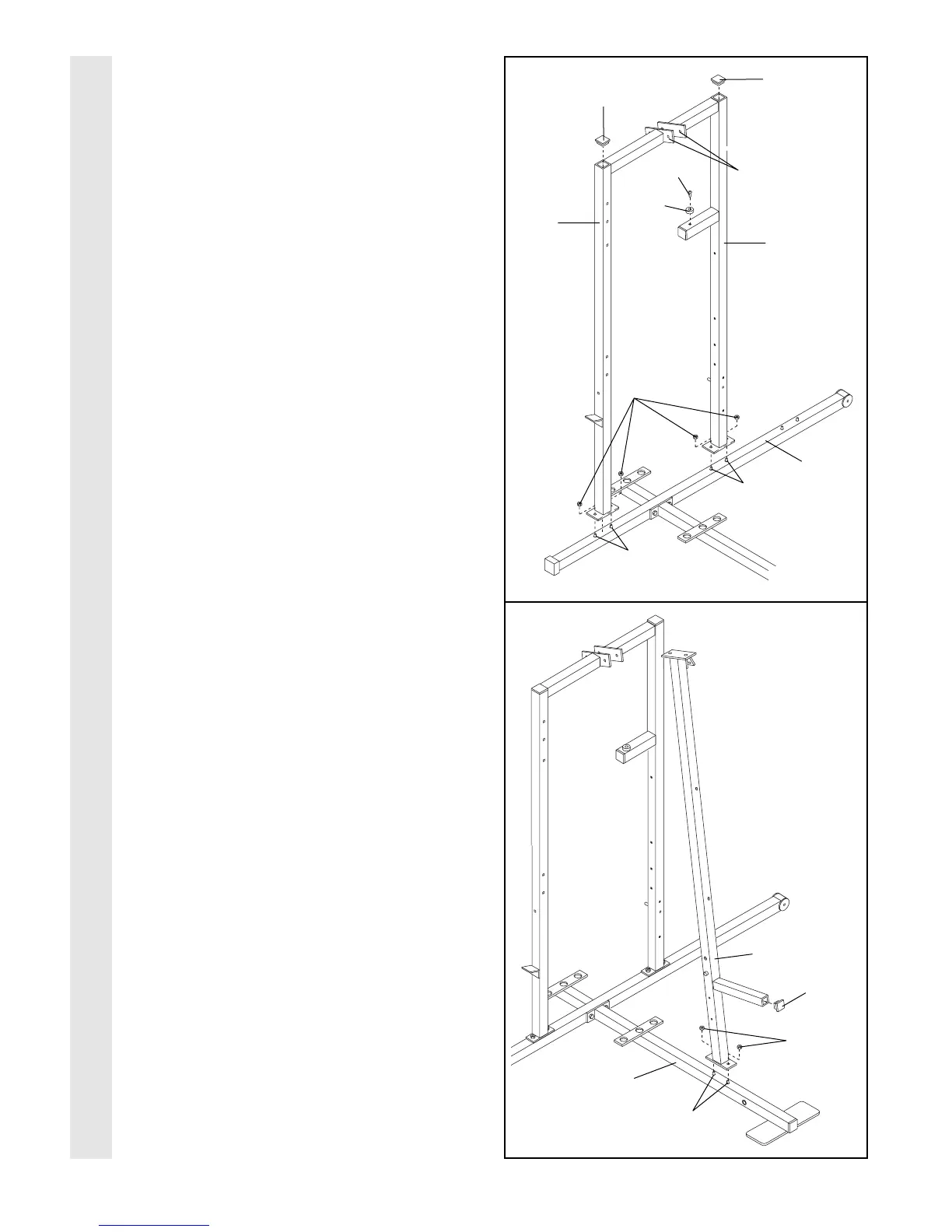

2. Slide the Assist Upright (74) and the Leg
Press Upright (56) onto the indicated 5/16” x
2 1/2” Carriage Bolts (1) in the Stabilizer (5).
The high side of the brackets on the
Uprights should be on the side shown.
Hand-tighten four 5/16” Nylon Locknuts (3)
onto the Carriage Bolts. Do not tighten the
Nylon Locknuts yet.
Press a 2” Square Inner Cap (27) into the Leg
Press Upright (56) and into the Assist Upright
(74).
Attach the Rubber Bumper (91) to the Leg
Press Upright (56) with the #8 x 1/2” Self-
tapping Screw (87).
3. Slide the Front Upright (42) onto the 5/16” x
2 1/2” Carriage Bolts (1) in the Base (4).
Hand-tighten a 5/16” Nylon Locknut (3) onto
each Carriage Bolt. Do not tighten the
Nylon Locknuts yet.
Press a 1” Square Inner Cap (6) into the
Front Upright (42).
2
27
27
1
1
56
74
3
5
High Sides
of Brackets
3
