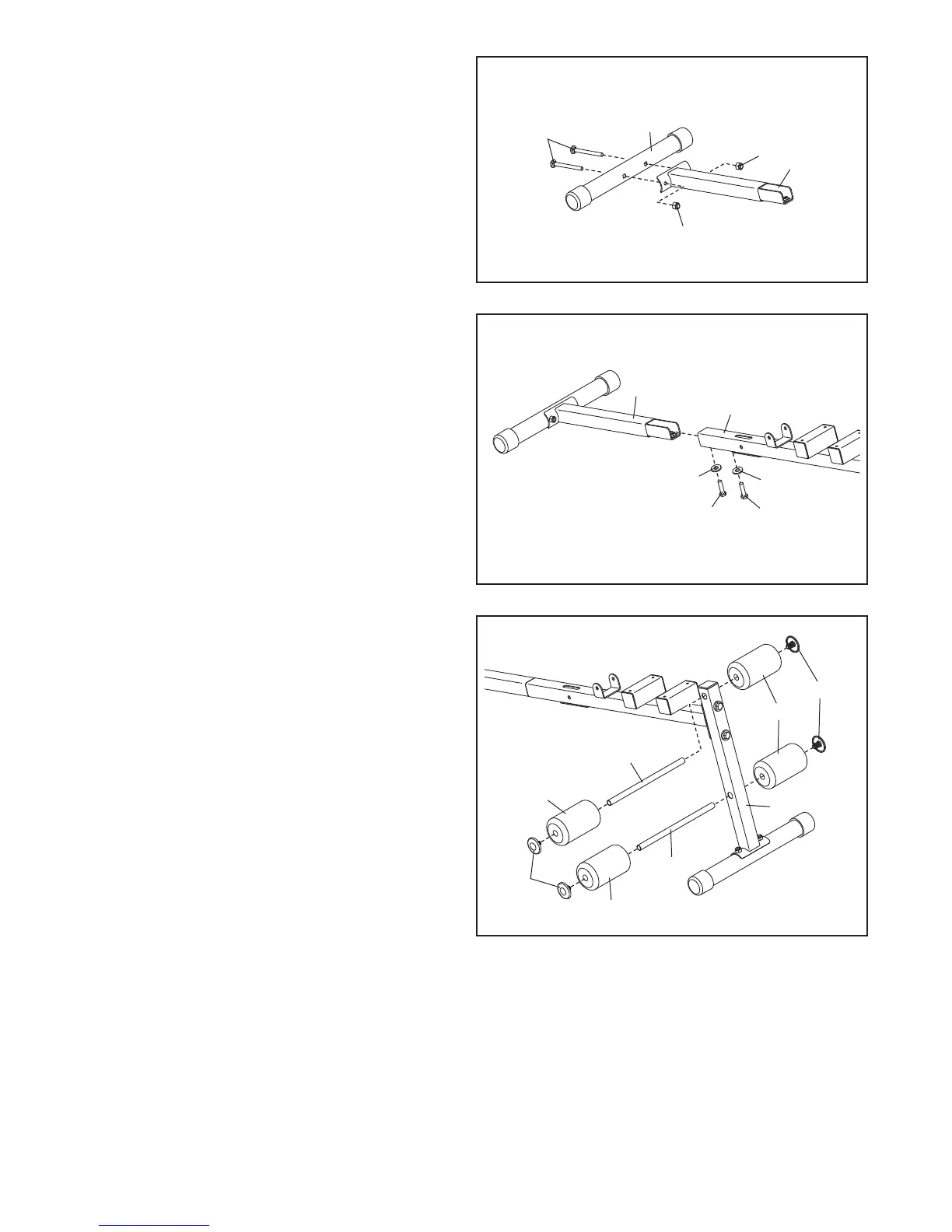

3. Orient the Rear Leg (3) as shown.
Attach the Rear Stabilizer (4) to the Rear Leg
(
3) with two M10 x 63mm Carriage Bolts (18)
and two M10 Locknuts (19). Do not tighten the
L
ocknuts yet.
4. Attach the Rear Leg (3) to the Frame (1) with
two M10 x 20mm Bolts (25) and two M10
Washers (20).
See steps 1–3. Tighten the M10 Locknuts
(19).
5. Insert the two Pad Tubes (10) into the Front Leg
(2).
Wet the ends of the Pad Tubes (10) with soapy
water, and slide two Foam Pads (9) onto each
Pad Tube.
Then, press a Pad Cap (11) into each Foam
Pad (9).
3
19
19
4
18
3
4
2
9
10
10
11
11
9
9
20
20
25
25
3
1
5
