Weimer We-1400 - Radio Receiver Description

Operang Manual Sesam 800 from Åkerströms
Descripon of the Receiver

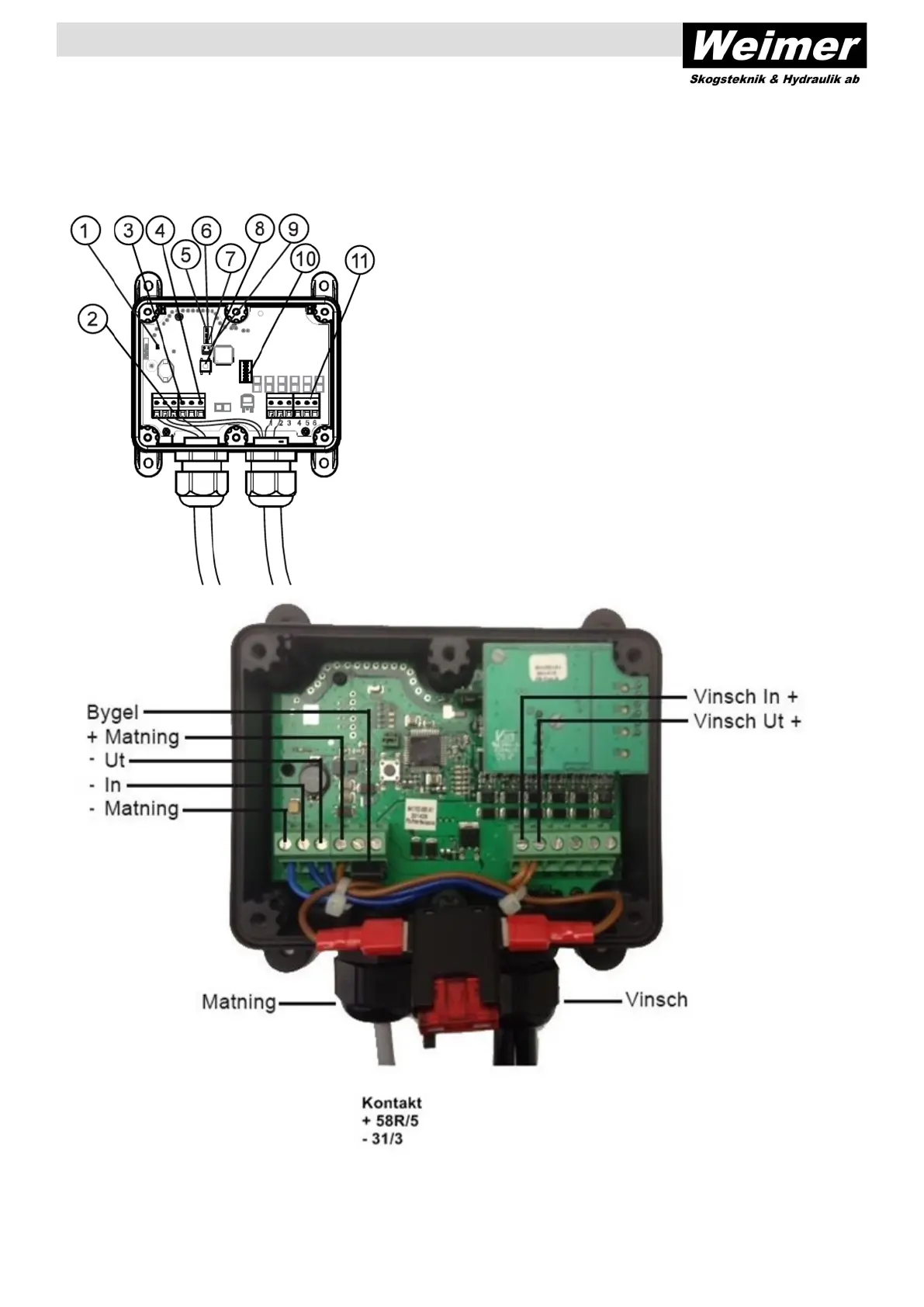

Sesam 800 RXM 12/24 V DC to winch with cable
installed. The models indicators, connecons and
jumper.
1. Power LED
2. Ground, 0V (-)
3. 12/24 V DC power
Fuse with 3A blad fuse near the baery
4. Internal supply to the outputs (see chap. 8.1)
5-7. Status LEDs
8. Learn/Erase knapp
9. Jumper J1
10. Output LEDs
11. Output connecons 1-6
Fig 1
Fig 2
