Weimer We-1400 - Receiver Indicator Lights; Radio Transmitter Operation; Transmitter Indicator Lights

Operang Manual Sesam 800 from Åkerströms

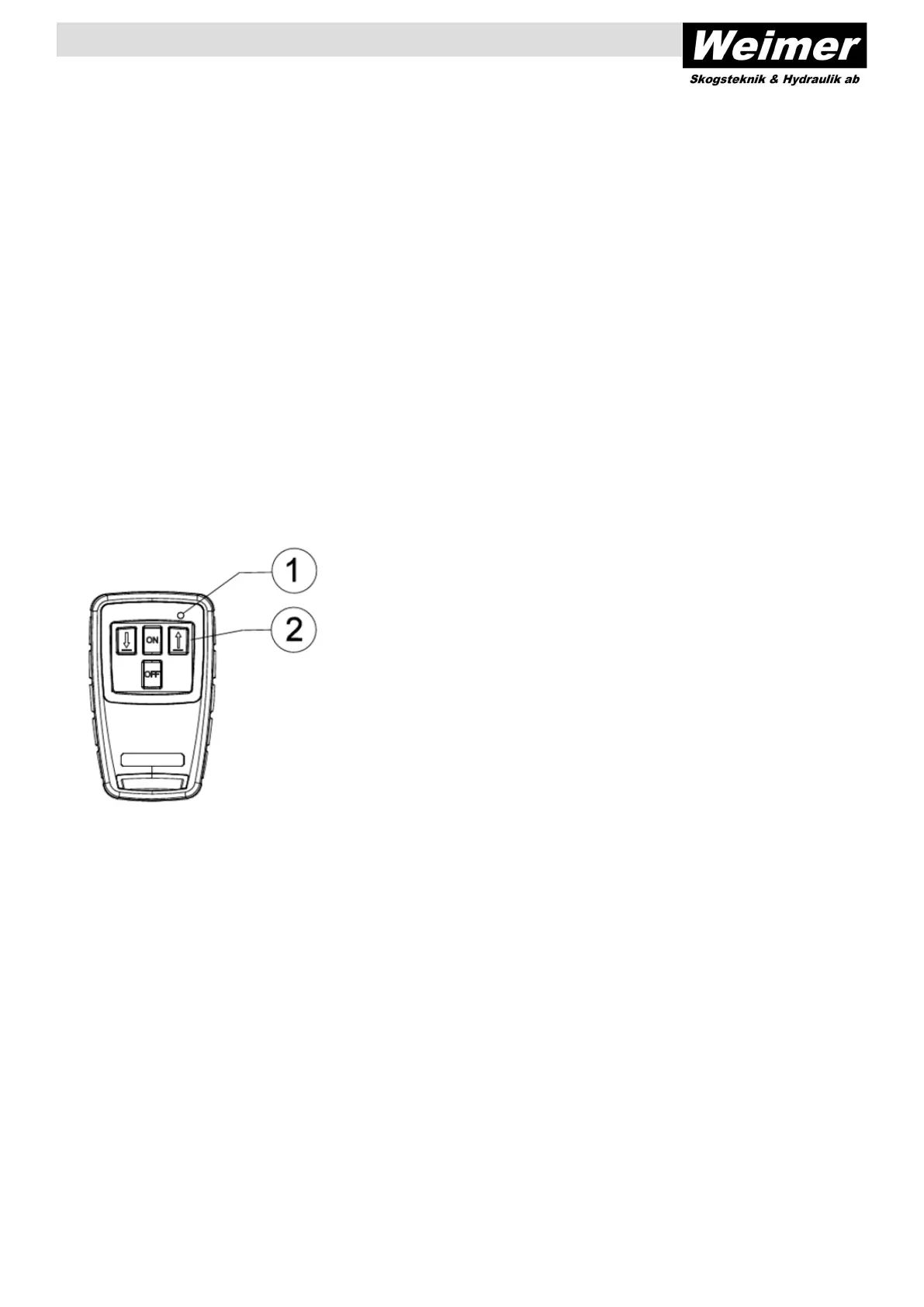

Sesam 800 M4 4 buon transmier
Sesam 800 M4 transmior indicaon and
buons.
1. Status LED
2. Buon 1-4
Indicators on the Receiver
Led Indicators
The receiver has LED indicators that indicates dierent parameters (see g. 1 for posions of the LEDs).
The indicaons on the LEDs are as follows:
Power LED (see ”1” in g 1)
Indicates whetever the receiver is powered.
LED 5 Squelch (see ”5” in g. 1)
Indicates a detectes signal on the operang frequency band.
LED 6 Status (see ”6” i g. 1)
Indicates that informaon from a transmier paired with the receiver has been received.
LED 7 Learn (see ”7” i g. 1)
Indicates if the transmier is in ”Learn” Mode.
Fig 3
Indicaons on the Transmier
The transmiers are equipped with a status LED indicang the status of the transmission during oper-
aon (see g. 3).
Normal operaon
Quick ashing RED LED = Output is not acvated and there is no feedback from the receiver.
Quick ashing RED then a connuous GREEN LED = Output is acvated in the receiver with feedback.
Baery Warning
Connuous RED LED aer acvang a command = Low baery
3 long RED LED ashes = Baery depleted, transmier cannot send commands.
