Section 2 Installation Instructions
WATER SUPPLY AND DRAIN LINE SIZING/CONNECTIONS
Location
Water Temp
Min/Max
Water Pressure
Min/Max
Fitting/Min Tubing Size
Potable
Water Inlet
3°/32°C 100/552 kPA 3/8" FPT
Potable
Water Drain
--- --- 1/2" MPT
Condenser
Water Inlet
3°/32°C 138/1034 kPA
3/8" FPT
RF2500 = 1/2" FPT
Condenser
Water Drain
--- --- 1/2" MPT
Bin Drain --- --- 3/4" FPT
Large Capacity Bin Drain --- --- 1" FPT
UNDERCOUNTER UNITS
ROUTE
DRAIN
TUBING TO
OPEN SITE
DRAIN
WATER SHUT-OFF VALVE
REQUIRED - ICE MAKING
WATER INLET TUBING MIN
I.D. .95 CM
VENT TUBE
46 CM LONG
ICE MAKING
WATER INLET
TUBING MIN. .95
CM
VENT TUBE
46 CM
SEPARATE BIN AND ICE
MACHINE DRAINS ARE
REQUIRED
ROUTE DRAIN TUBING TO
OPEN SITE DRAIN
MODULAR UNITS

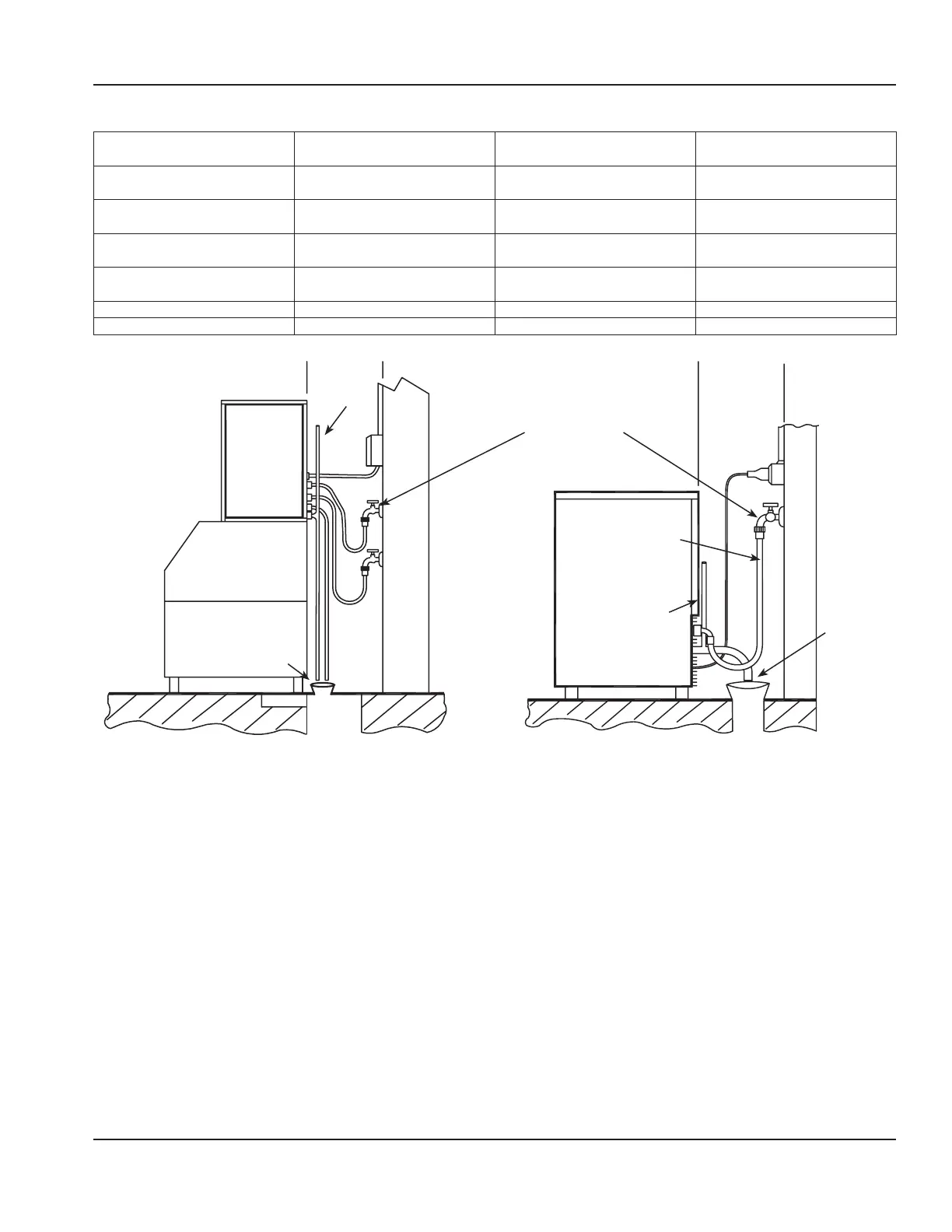

Typical Water Supply Drain Installation
