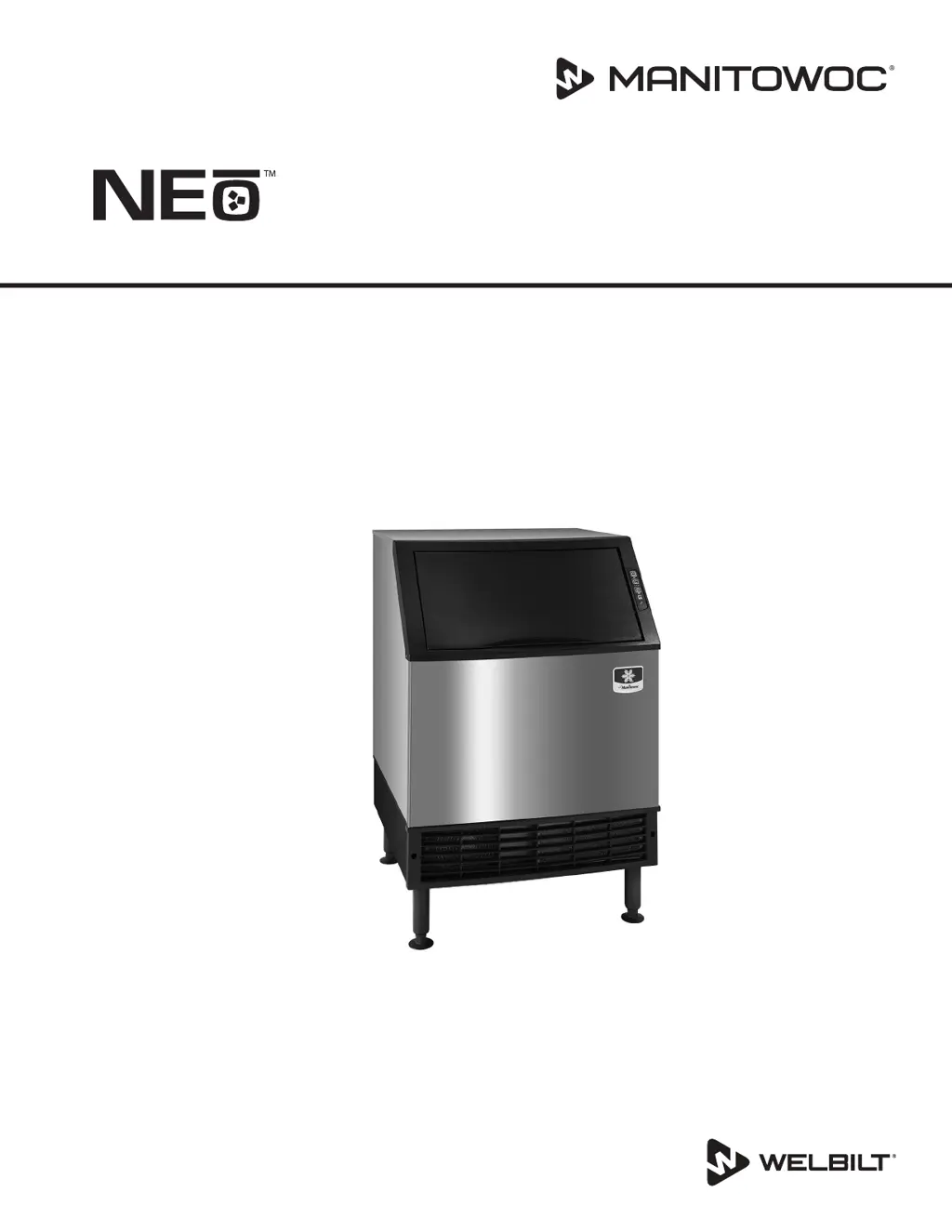

Part Number: 040005890 Rev 01 06/18

UnderCounter Ice Machines

Installation, Operation and Maintenance Manual

,

Caution

Read this instruction before operating this equipment.

Original Document

Table of Contents

Questions and Answers:

T
Tammy ValenciaJul 29, 2025
Why is the ice quality poor in my Welbilt Ice Maker?
- L
  Leslie DelgadoJul 29, 2025
  If your Welbilt Ice Maker produces ice that is soft or not clear, several factors could be the cause. It might be due to poor incoming water quality, in which case you should contact a qualified service company to test the water and recommend appropriate filters. Poor water filtration could also be the issue, so try replacing the filter. A dirty ice machine can also affect ice quality, so make sure to clean and sanitize it. Lastly, if you have a water softener, check to see if it is working correctly and repair it if necessary.
J
josephcruzAug 3, 2025
What to do if my Welbilt Ice Maker does not release ice?
- G
  Gary JimenezAug 3, 2025
  If your Welbilt Ice Maker does not release ice or is slow to harvest, there are several potential causes. The ice machine might be dirty, so cleaning and sanitizing it is a good first step. Ensure the ice machine is level. Also, if you have an air-cooled model, check that the air temperature around the machine is at least 40°F (4°C). For water-cooled models, a leaking water regulating valve in harvest mode could be the problem, and you may need to replace it.
T
Thomas AlexanderAug 8, 2025
How to fix shallow or incomplete cubes in my Welbilt Ice Maker?
- D
  Dr. Steven LarsonAug 8, 2025
  If your Welbilt Ice Maker produces shallow or incomplete cubes, or the ice fill pattern on the evaporator is incomplete, start by adjusting the ice thickness switch. Check that the water trough level is neither too high nor too low. Replace the water filter if water filtration is poor. Ensure that the incoming water is cold and that the water pressure is between 20 – 80 psi (137.9 – 551.5 kPa). Finally, make sure the ice machine is level.
S
stoutrachelAug 13, 2025
Why does my Welbilt Manitowoc NEO UDF0140A not operate?
- J
  Joshua PayneAug 13, 2025
  If your Welbilt Ice Maker does not operate, there might be a simple explanation. First, check if there is electrical power reaching the machine. Replace the fuse, reset the breaker, turn on the main switch, and ensure the power cord is plugged into the receptacle. Also, make sure the ice machine is turned on by pressing the On/Off button. Finally, check that the damper is in the upright position and can swing freely.
C
Courtney KingAug 18, 2025
Why is the ice sheet thick in my Welbilt Manitowoc NEO UDF0140A Ice Maker?
- C
  Cynthia WillisAug 18, 2025
  If the ice sheet in your Welbilt Ice Maker is too thick, it could be due to a water trough level that is too high; in this case, adjust the ice thickness float. Another cause could be that the power button was turned off/on during the freeze cycle and ice remained on the evaporator. Allow the ice to thaw and release from the evaporator, then restart. Also, if the ice damper was opened then closed in the harvest cycle before the ice released, allow ice to thaw and release from evaporator, then restart. If you are experiencing long harvest cycles with repeated safety limit indication, call for service.
D
daniellewoodAug 23, 2025
Why won't my Welbilt Ice Maker cycle into harvest mode?
- Y
  Yolanda LeeAug 23, 2025
  If your Welbilt Ice Maker does not cycle into harvest mode, it could be due to several reasons. The six-minute freeze time lock-in might not have expired yet, so wait for it to expire. Also, the harvest float switch could be dirty, so clean and sanitize the ice machine. Check if the harvest float switch wire is disconnected and connect it if necessary. The harvest float switch might also be out of adjustment, so adjust it. Finally, uneven ice fill (thin at top of evaporator) may be the reason. See “Shallow or Incomplete Cubes”.

Welbilt Manitowoc NEO UDF0140A Specifications

General

Brand	Welbilt
Model	Manitowoc NEO UDF0140A
Category	Ice Maker
Language	English

Summary

Safety Information

General Safety Precautions

Read manual, follow precautions to prevent injury, death, or property damage.

Hazard Definitions

Explains hazard symbols like Danger, Warning, Caution, Notice.

Installation Safety Requirements

Safety guidelines for installation, electrical, and refrigeration.

Operation and Maintenance Safety

Precautions for personal injury during use and maintenance.

Operation

Touch Pad Interface

Ice Making Sequence

Safety Limit Features

Explains built-in safety limits that stop the machine to prevent component failure.

Troubleshooting

Troubleshooting Checklist

A checklist for troubleshooting common problems before calling service.

Common Operational Issues

Safety Limit Feature Issues

Troubleshooting and resetting safety limit feature trips.
