SECTION 8 : INSTALLATION
PREPARATION:
Unpack the welding machine; assemble the separate parts contained in the package.

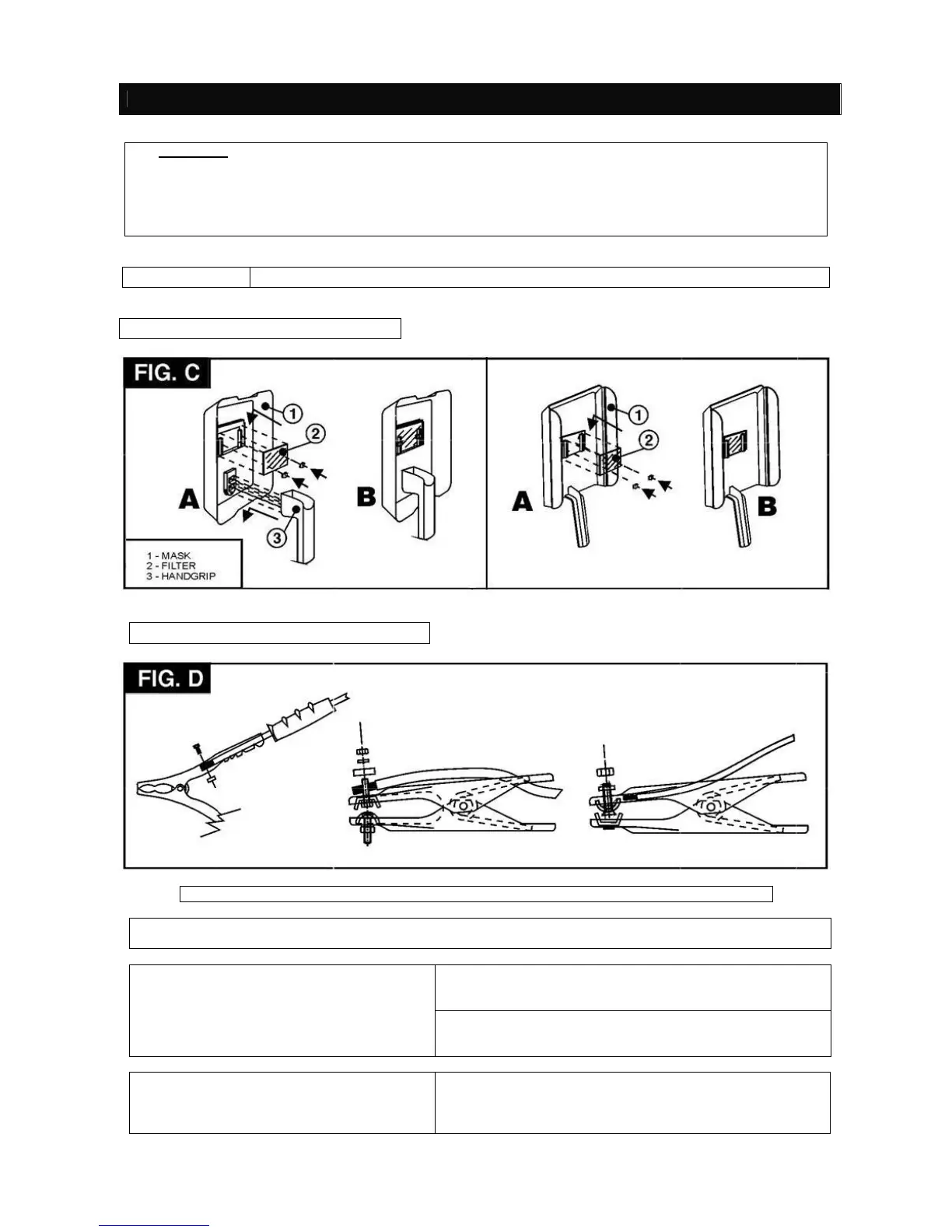

ASSEMBLING THE PROTECTIVE MASK
ASSEMBLING THE RETURN CABLE-CLAMP
WARNING! POSITION THE WELDING MACHINE ON A FLAT SURFACE WITH SUFFICIENT CARRYING
CAPACITY FOR ITS WEIGHT, TO PREVENT IT FROM TIPPING OR MOVING HAZARDOUSLY.
Before making any electrical connection, make sure the rating
data of the welding machine corresponds to the mains voltage
and frequency available at the place of installation.
CONNECTION TO THE MAIN POWER
SUPPLY:
The welding machine should only be connected to a power
supply system with the power cable connected to earth.
PLUG AND OUTLET.
Connect a normalised plug (2P + E) having sufficient capacity to
the power cable and prepare a mains outlet fitted with fuses or
an automatic circuit-breaker; the special earth terminal should
be connected to the earth conductor (yellow-green) of the power
WARNING!
• CARRY OUT ALL INSTALLATION OPERATIONS AND ELECTRICAL CONNECTIONS WITH THE
WELDING MACHINE COMPLETELY SWITCHED OFF AND DISCONNECTED FROM THE POWER
SUPPLY OUTLET.
• THE ELECTRICAL CONNECTIONS MUST BE MADE ONLY AND EXCLUSIVELY BY AUTHORISED OR
QUALIFIED PERSONNEL.
None of the welding machines described in this manual are equipped with a lifting device.
