WELDPRO MIG155GD - Front Panel Layout and Controls; Back Panel Features

OPERATION

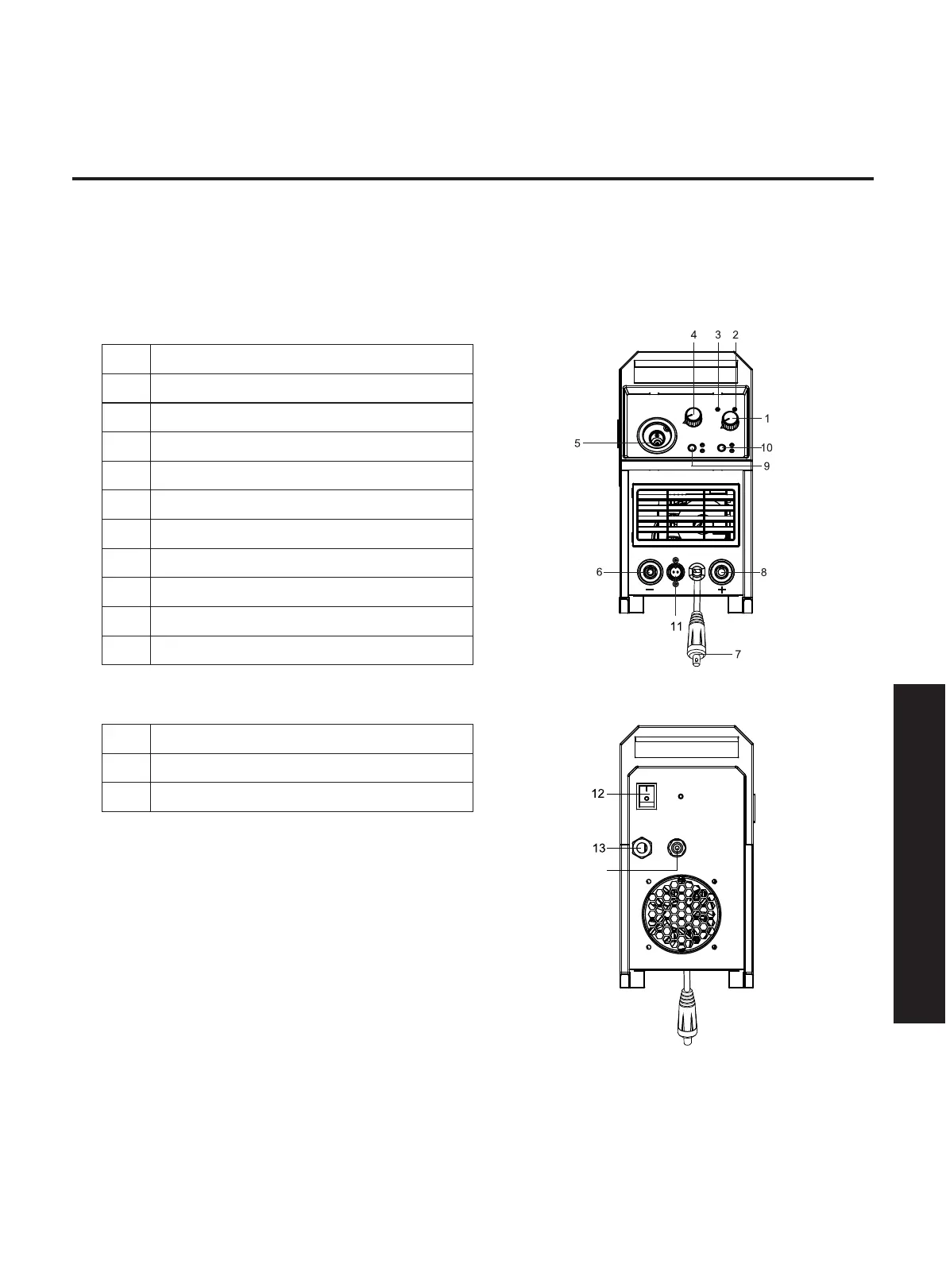

1 Front panel layout
The values of the adjustment knob are indicated on the front panel of the machine. The pictures in this manual are for reference
only. The actual product may be different.
• Front panel
1
Voltage adjustment knob
2
Power indicator light
3
Fault indicator
4
Current adjustment knob
5
MIG welding torch
6
Positive outlet
7
Polarity Reversing Switch
8
Negative outlet
9
2T/4T control switch
10
11
MMA/MIG control switch
4 pin aviation plug
• Back panel
12
Power switch
13
Power supply outlet
14
Gas cylinder inlet connector
14
