12
Owner’s Manual
WPC-3000, WPC-4000, WPC-5000
Wiring Diagram
DRAIN
PUMP
(option)
RELAY
RELAY
Power
1P AC 115V
1P AC 208 / 230V

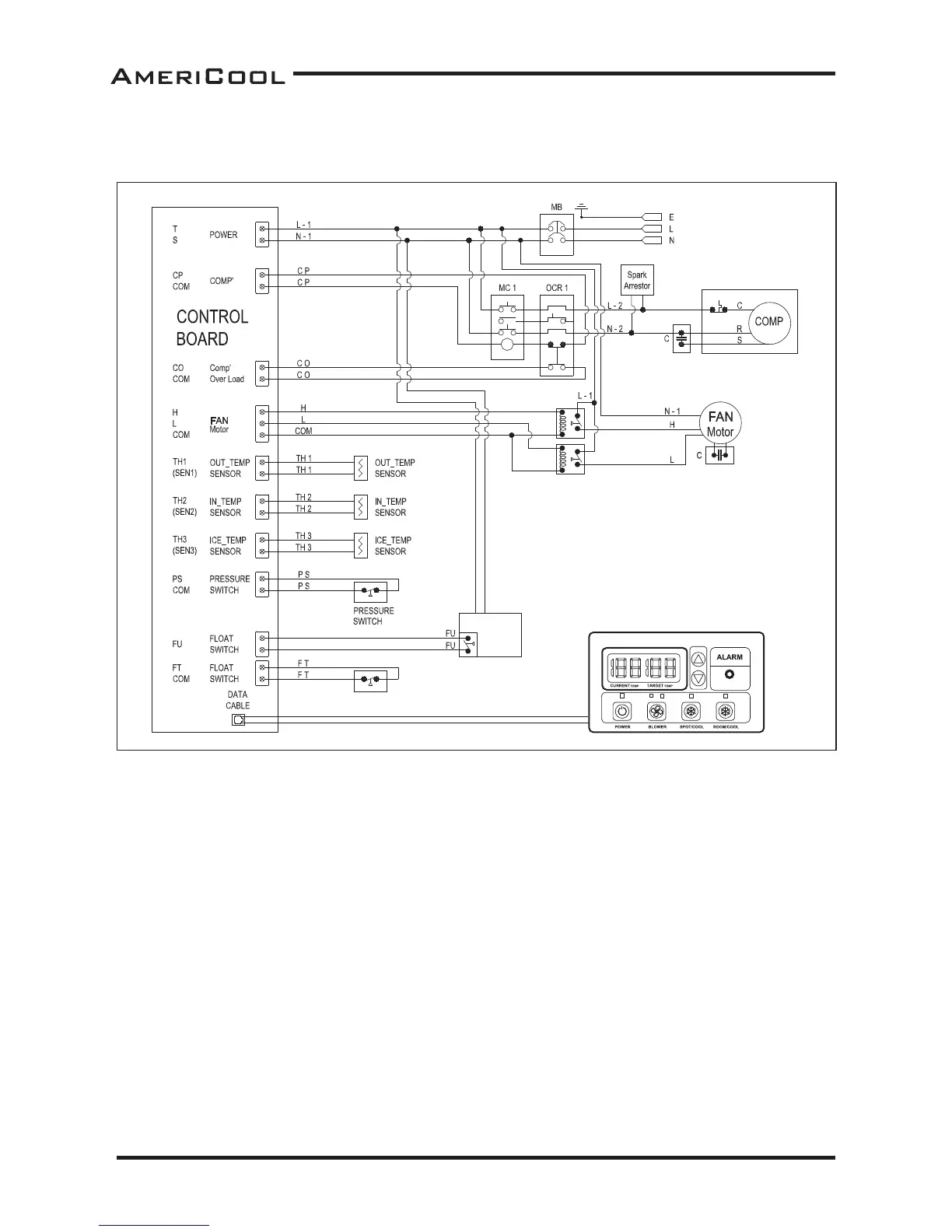

Figure 14 - Circuit Wiring Diagram (WPC-4000)
