11
Owner’s Manual
WPC-3000, WPC-4000, WPC-5000
Wiring Diagram
POWER
1P AC 115V
1P AC 208 /230V
POWER
DRAIN
PUMP
(option)
FD
FD
FD

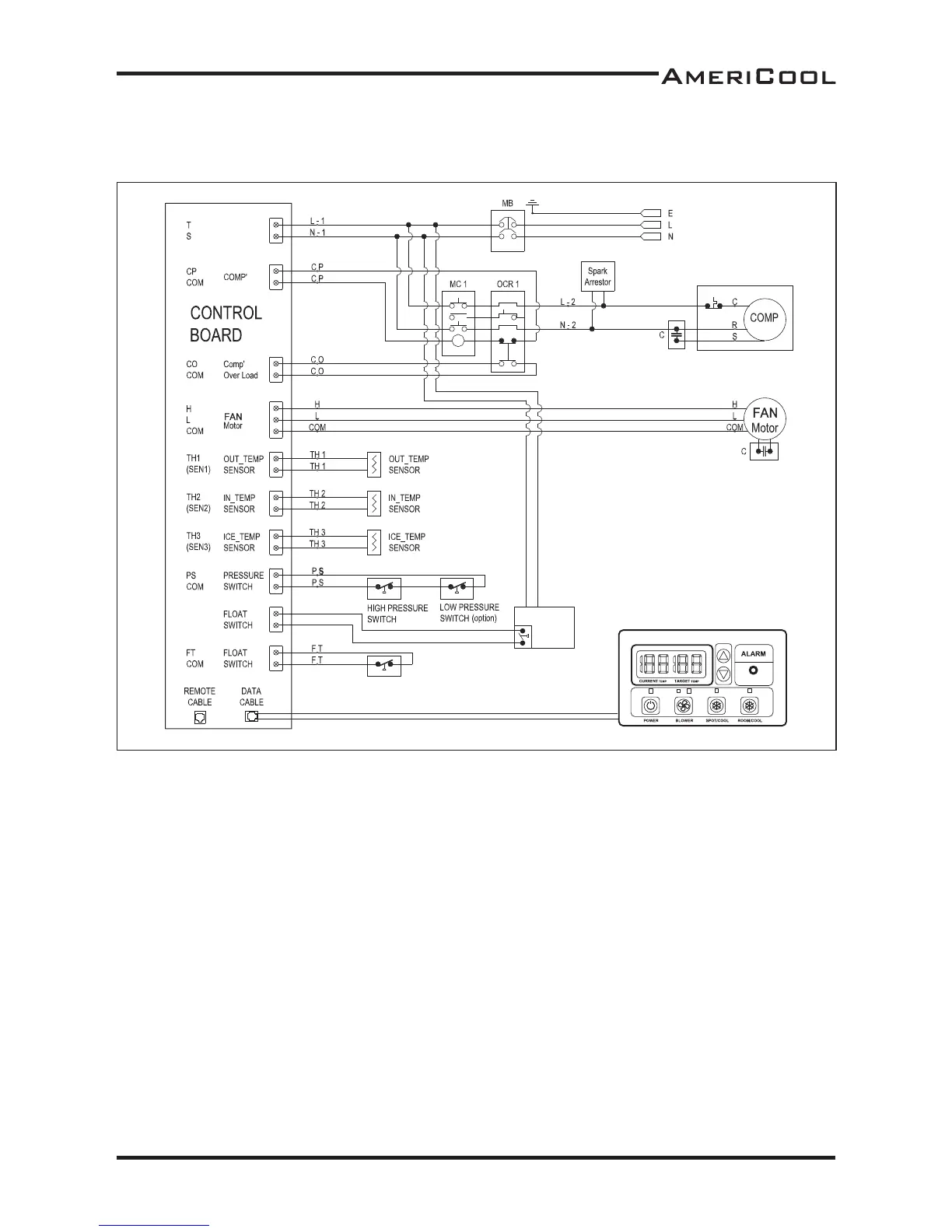

Figure 13 - Circuit Wiring Diagram (WPC-3000,5000)
