Assembly and adjustments
The air filter is designed to circulate air and filter wood and other non-metallic dust. The unit
requires only minimal assembly. However, it is important to consider how and where to place the
unit. When selecting a site, make sure there is a suitable power source nearby. Do not use extension
cords with the air filter.

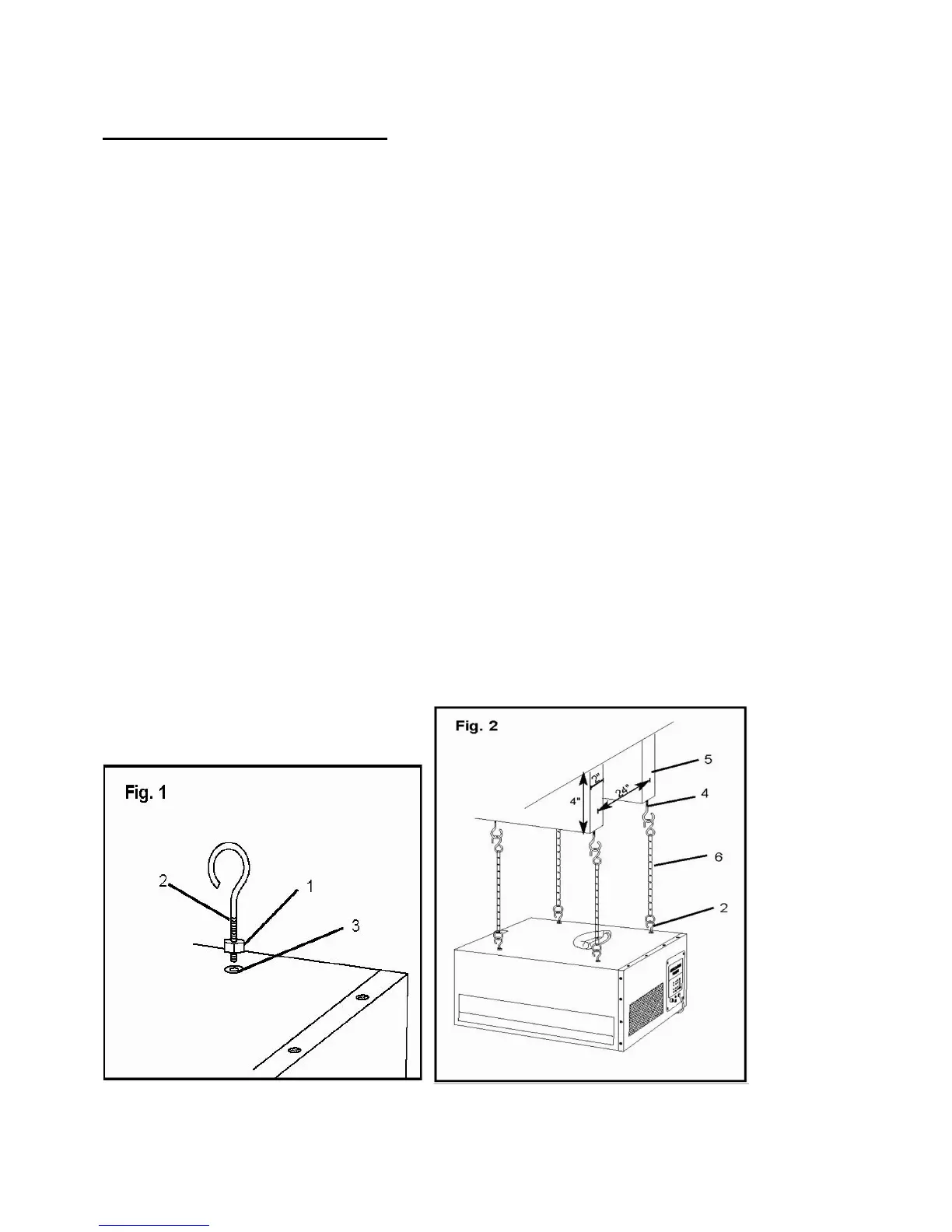

Hanger placement (Fig. 1)
1. Thread the locknuts (1) almost all the way up the hanger (2).
2. Thread a hanger into each of the four mounting holes (3) on the top of the air filter cabinet.
3. Tighten each locknut against the cabinet top. Hold the hangers so that they do not spin
while tightening the locknut.
Ceiling placement (Fig.1 and 2)
Make sure the unit will be situated at least 7' above the floor and at least 3' (1 m) away from a
corner and from any heating or air vents.
1. Install the wood screw hooks (4) into the building support structure. Do not mount the air filter to
non-structural surfaces such as dry wall or false ceiling grids.
The hooks are rated for this air filter, and can support a minimum of 100 lbs.
2. Place a chain (6) on each wood screw hook (4).
3. Attach the hangers (2) on each chain (6).
4. Make sure the unit is level horizontally, and is at least 7' above the floor. If it is not, remove the
air filter and adjust the length of the chain as needed. Then remount the unit.
5. Plug the air filter power cord directly into a power source.
