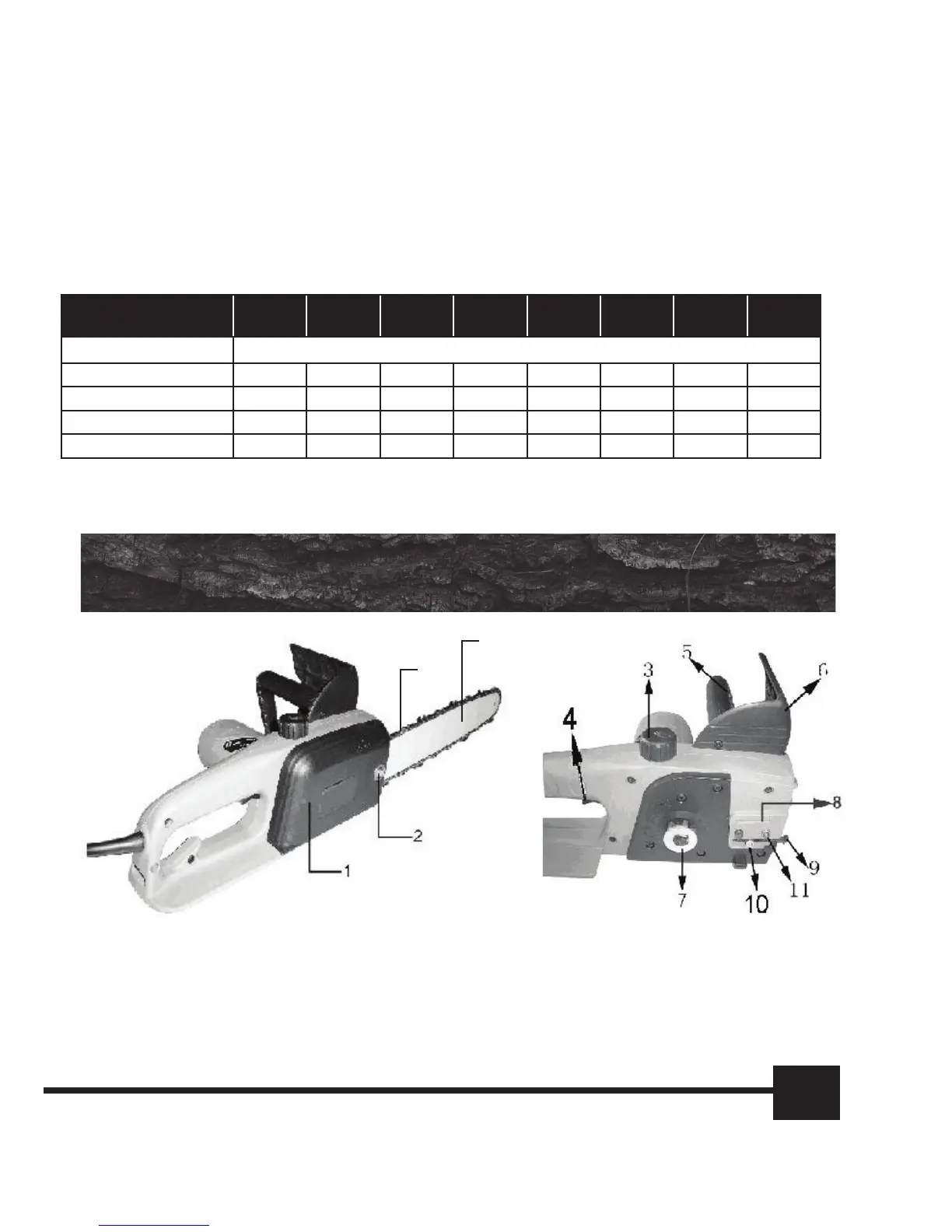

CHAINSAW COMPONENTS
1. SPROCKET COvER
2. SPROCKET COvER LOCKING NUT
3. OIL TANK CAP
4. TRIGGER
5. FRONT HANDLE
6. FRONT HANDLE GUARD
7. SPROCKET
8. OUTPUT OIL HOLE
9. CHAIN TENSION SCREW
10. CHAIN TENSION PIN
11. STUD
12. GUIDE BAR
13. SAW CHAIN
EXTENSION CORDS
If you use an extension cord, be sure to use one heavy enough to carry the current your electric saw will
draw. An improper gauged extension cord will cause a drop in wire voltage resulting in loss of power and
overheating. Use only extension cords having an electric rating not less than the rating of the product.
The following table shows the correct size to use depending on cord length and machine ampere rating.
EXTENSION CORD
LENGTH (FEET)
25 50 75 100 125 150 175 200
AMPS
AWG
0 TO 10.0 18 18 16 16 14 14 12 12
10.1 TO 13.0 16 16 14 14 14 12 12 12
13.1 TO 15 14 12 12 12 12 12 12 --
15 TO 18 14 12 12 12 12 12 -- --
AMERICAN WIRE GAUGE RATING CHART
