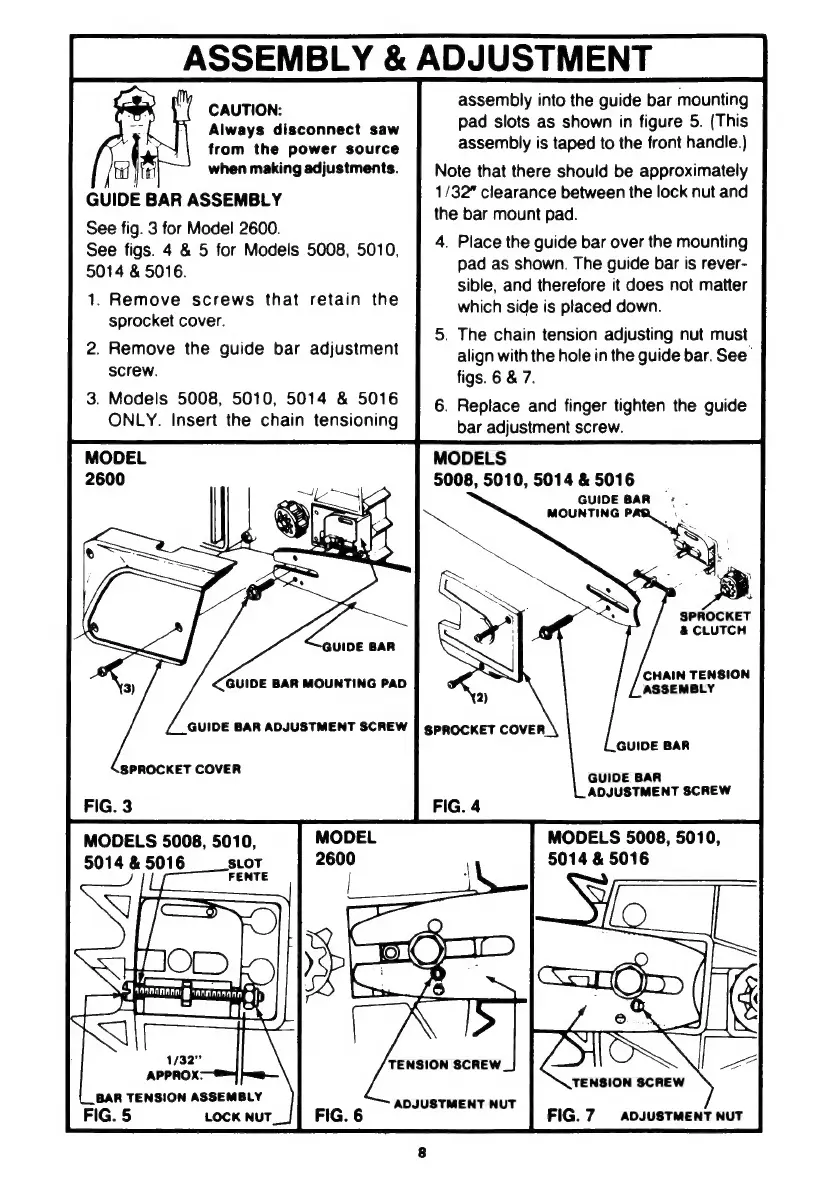

ASSEMBLY & ADJUSTMENT
assembly into the guide bar mounting
pad slots as shown in figure 5. (This
assembly is taped to the front handle.)
Note that there should be approximately
1/32" clearance between the lock nut and
the bar mount pad.
4. Place the guide bar over the mounting
pad as shown. The guide bar is rever-
sible, and therefore it does not matter
which side is placed down.
5. The chain tension adjusting nut must
align with the hole in the guide bar. See
figs. 6 & 7.
6. Replace and finger tighten the guide
bar adjustment screw.
MODELS
5008, 5010, 5014 & 5016
GUIDE BAR -
CAUTION:
Always disconnect saw
from the power source
when making adjustments.
GUIDE BAR ASSEMBLY
See fig. 3 for Model 2600.
See figs. 4 & 5 for Models 5008, 5010,
5014 & 5016.
. Remove screws that retain the
sprocket cover.
2. Remove the guide bar adjustment
screw.
3. Models 5008, 5010, 5014 & 5016
ONLY. Insert the chain tensioning
SPROCKET
& CLUTCH
CHAIN TENSION
ASSEMBLY
GUIDE BAR
ADJUSTMENT SCREW
MODELS 5008, 5010,
MODELS 5008, 5010,
5014 & 5016
5014 & 5016
NOE
=
-
ue
RK
)
J
nnnonnnng
annnannnsin
Th
an
6
Aw
ha
TENSION SCREW
TENSION SCREW
FIG. 7
BAR TENSION ASSEMBLY
LOCK NUT
ADJUSTMENT NUT
ADJUSTMENT NUT
