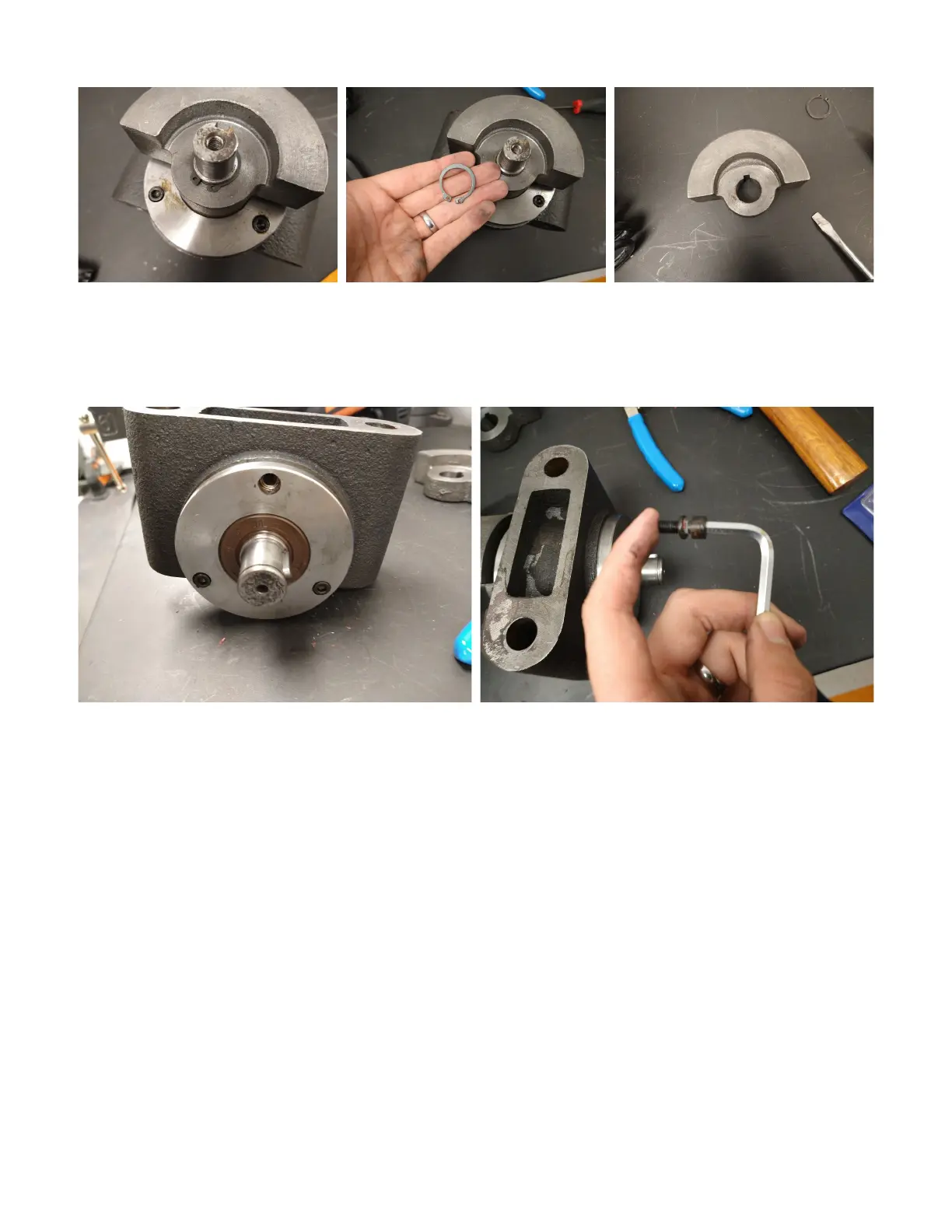

Fig. 15: Retaining ring. Fig. 16: Retaining ring removed. Fig. 17: Eccentric block removed.
14. Use the 5mm hex wrench to remove the 3 socket-head cap screws around the bearing cover (Fig. 18 – 19).
They are standard right-hand threaded screws (lefty-loosey)
Fig. 18: Remove 3 screws from bearing cover. Fig. 19: Screw removed.
15. Remove the bearing cover and oil seal (brown seal shown around the shaft in Fig. 18 above) from the main
body. You may need to clamp the main body to the table to do this. It is easiest to gently twist the cover and
seal off the shaft; you can also gently use a flat-head screwdriver to help loosen it from the body. Be careful
not to damage the bearing cover. Once the bearing cover is removed (Fig. 20), the bearing is exposed (Fig.
21).
