Wen 56035T User Manual

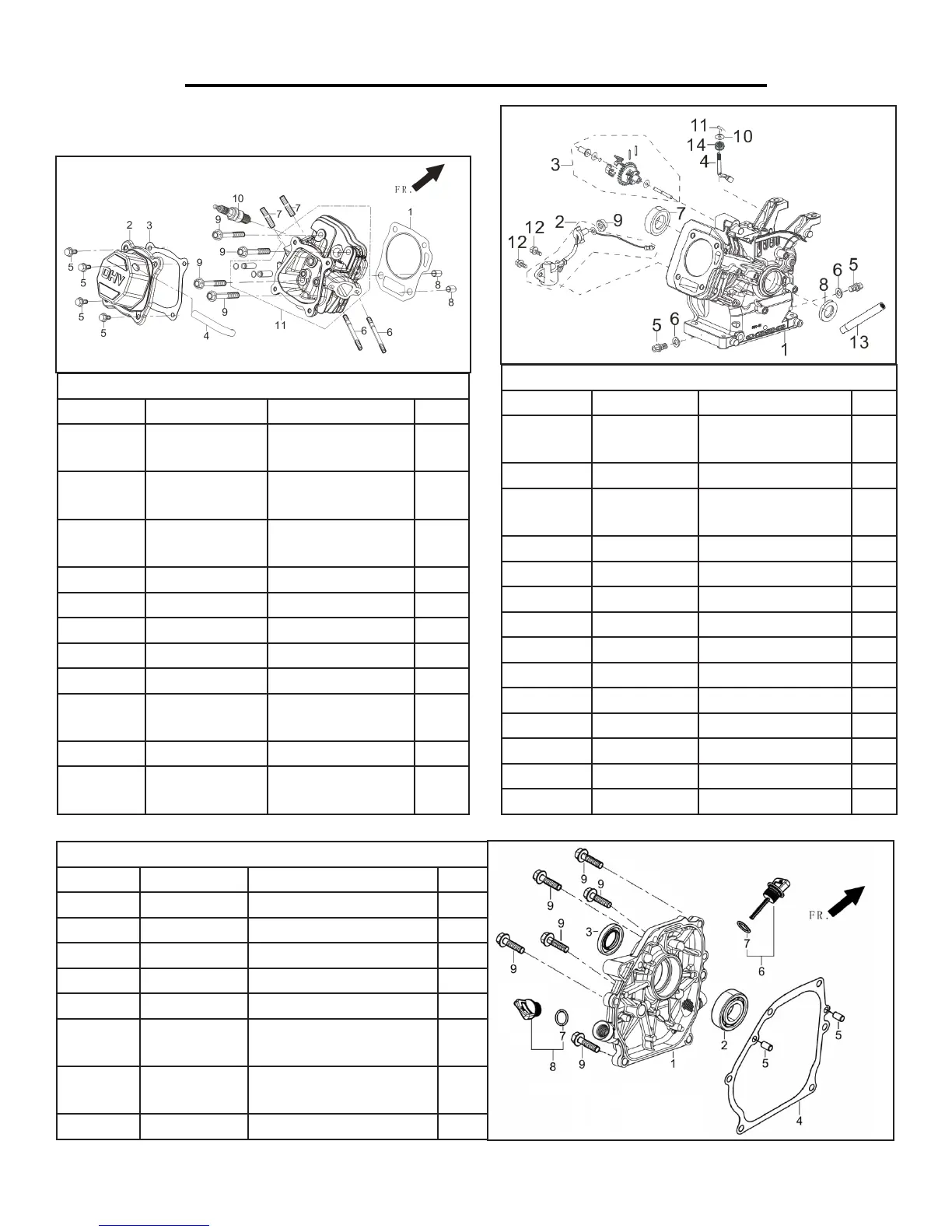

EXPLODED VIEW AND PARTS LIST (ENGINE)
Fig. 1 - Cylinder Head Assembly
No. Part Description Qty.
Fig. 1 - 1 56035-E-001
Cylinder Head
Gasket
1
Fig. 1 - 2 P54066
Cylinder Head
Cover Assembly
1
Fig. 1 - 3 P54064
Cylinder Head
Cover Gasket
1
Fig. 1 - 4 56035-E-004 Breather Tube 1
Fig. 1 - 5 P54040 Bolt 4
Fig. 1 - 6 56035-E-006 Stud 2
Fig. 1 - 7 P54058 Stud 2
Fig. 1 - 8 P54048 Pin 2
Fig. 1 - 9 P54062
Cylinder Head
Bolt
4
Fig. 1 - 10 P54060 Spark Plug 1
Fig. 1 - 11 P54054
Cylinder Head
Subassembly
1
Fig. 2 - Crankcase Assembly
No. Part Description Qty.
Fig. 2 - 1 56035-E-012
Crankcase
Subassembly
1
Fig. 2 - 2 P54020 Engine Oil Sensor 1
Fig. 2 - 3 P54031
Governor Gear
Assembly
1
Fig. 2 - 4 P54014 Governor Arm 1
Fig. 2 - 5 56035-E-016 Drain Plug Bolt 2
Fig. 2 - 6 P54002 Washer 2
Fig. 2 - 7 56035-E-018 Bearing 1
Fig. 2 - 8 P54008 Oil Seal 1
Fig. 2 - 9 P54003 Nut 1
Fig. 2 - 10 56035-E-020 Washer 1
Fig. 2 - 11 56035-E-021 Pin 1
Fig. 2 - 12 56035-E-022 Bolt 2
Fig. 2 - 13 56035-E-100 Oil Drain Tube 1
Fig. 2 - 14 56035-E-101 Seal Guide 1
Fig. 3 - Crankcase Cover Assembly
No. Part Description Qty.
Fig. 3 - 1 56035-E-023 Crankcase Cover 1
Fig. 3 - 2 56035-E-018 Bearing 1
Fig. 3 - 3 P54008 Oil Seal 1
Fig. 3 - 4 P54080 Crankcase Gasket 1
Fig. 3 - 5 P54082 Pin 2
Fig. 3 - 6 P54086
Oil Dipstick
Subassembly
1
Fig. 3 - 8 56035-E-029
Engine Oil Plug
Subassembly
1
Fig. 3 - 9 P54092 Bolt 6
NOTE: The entire engine is available as a single
assembly under model number 56035-E-000.
