Wen 56035T User Manual

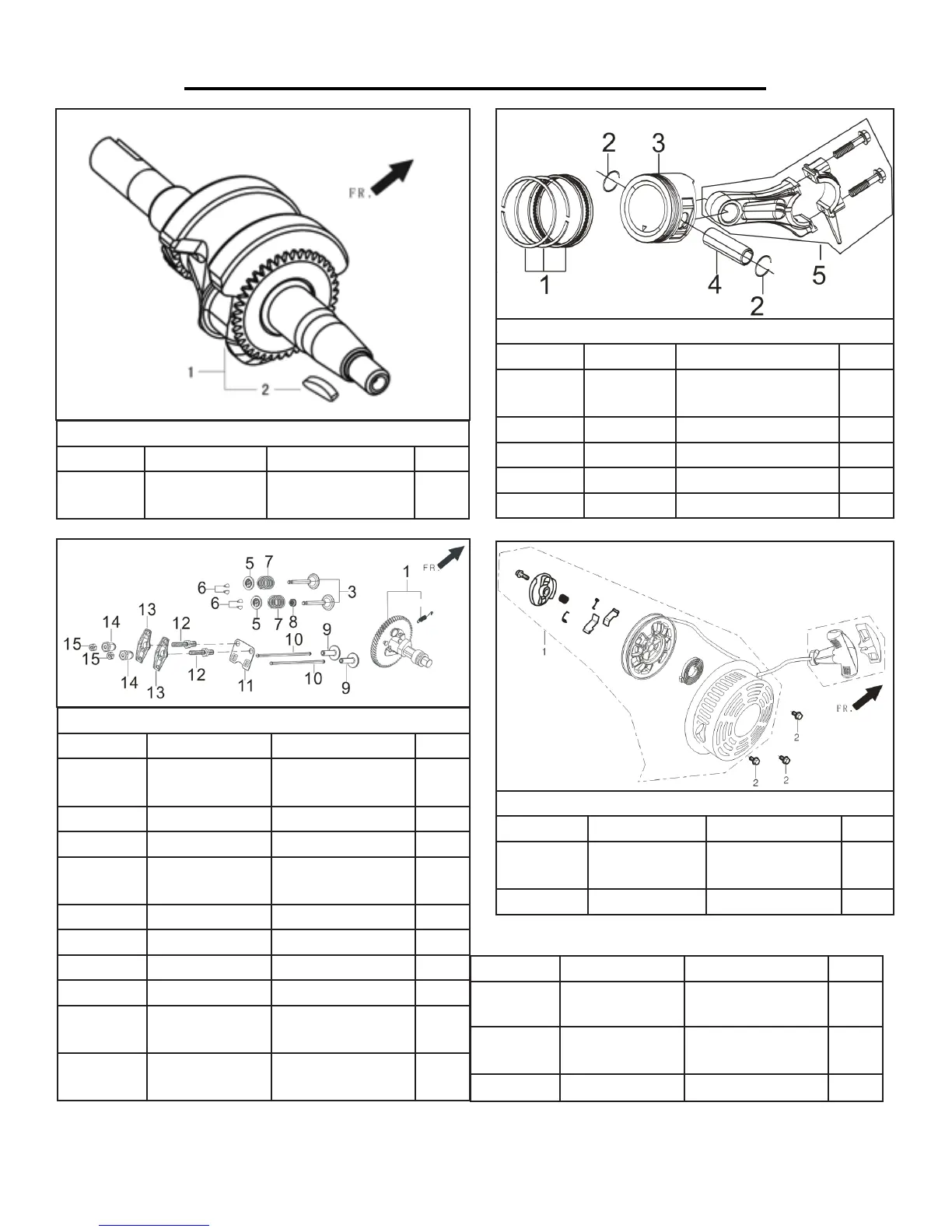

EXPLODED VIEW AND PARTS LIST (ENGINE)
Fig. 4 - Crankshaft
No. Part Description Qty.
Fig. 4 - 1 56035-E-031
Crankshaft
Assembly
1
Fig. 5. Piston Ring/Connecting Rod
No. Part Description Qty.
Fig. 5 - 1 P54105
Piston Ring
Assembly
1
Fig. 5 - 2 P54106 Piston Ring Clip 2
Fig. 5 - 3 P54109 Piston 1
Fig. 5 - 4 P54112 Piston Pin 1
Fig. 5 - 5 P54121 Connecting Rod 1
Fig. 6 - Valve/Camshaft
No. Part Description Qty.
Fig. 6 - 1 P54146
Camshaft Assem-
bly
1
Fig. 6 - 3 P54150 Valve 1
Fig. 6 - 5 56035-E-043 Valve Spring Seat 2
Fig. 6 - 6 P54160
Valve Lock
Clamp
4
Fig. 6 - 7 P54154 Valve Spring 2
Fig. 6 - 8 P54161 Seal Guide 1
Fig. 6 - 9 P54142 Valve Tappet 2
Fig. 6 - 10 P54140 Valve Lifter 2
Fig. 6 - 11 P54138
Stopper Plate
Subassembly
1
Fig. 6 - 12 P54134
Valve Adjusting
Bolt
2
Fig. 7 - Recoil Starter
No. Part Description Qty.
Fig. 7 - 1 56035-E-054
Recoil Starter
Assembly
1
Fig. 7 - 2 P54598 Bolt 3
No. Part Description Qty.
Fig. 6 - 13 P54132 Valve Rocker 2
Fig. 6 - 14 P54130
Valve Adjusting
Nut
2
Fig. 6 - 15 P54128 Valve Lock Nut 2
23
