Wen 56035T User Manual

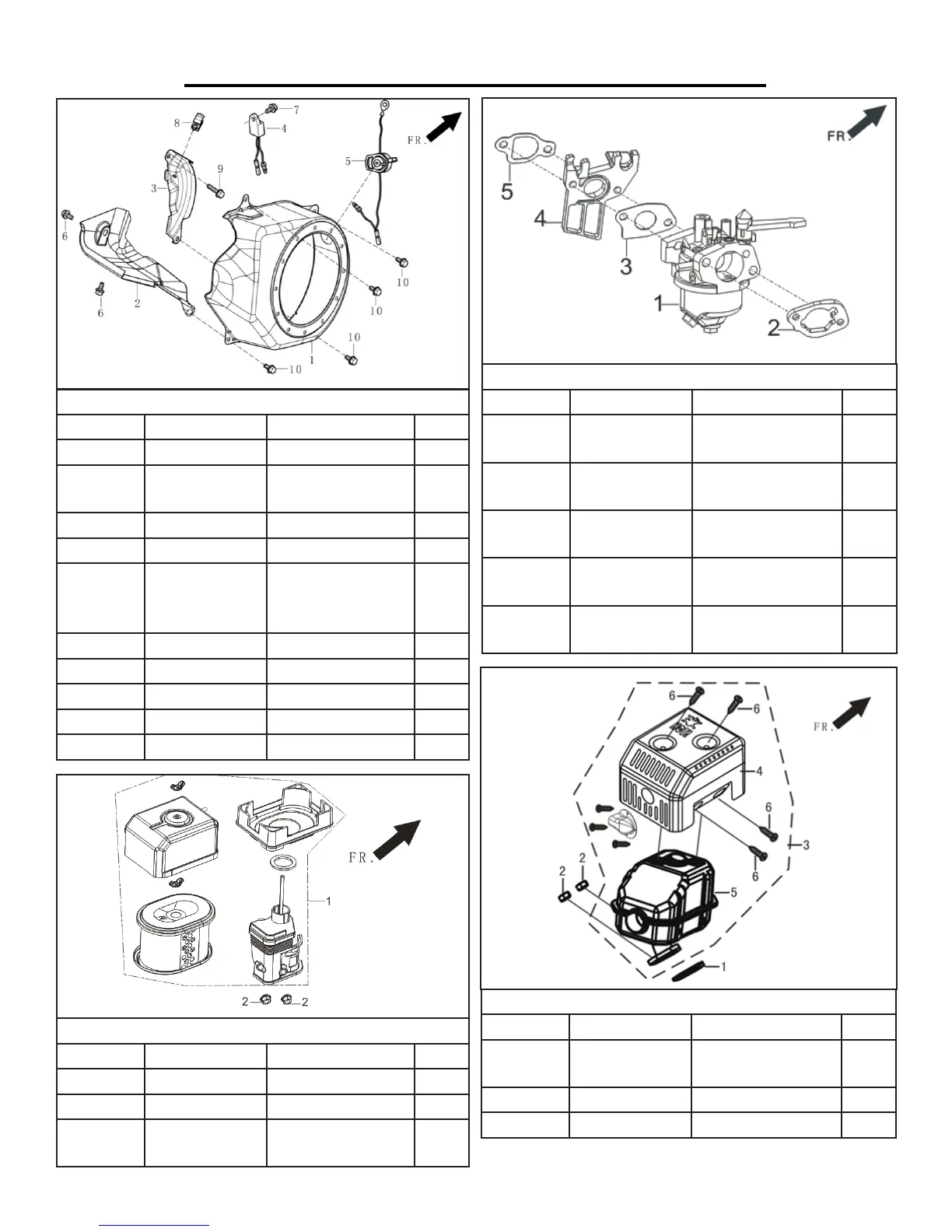

EXPLODED VIEW AND PARTS LIST (ENGINE)
Fig. 8 - Shroud
No. Part Description Qty.
Fig. 8 - 1 P54668 Shroud 1
Fig. 8 - 2 56035-E-058
Cylinder Body
Shroud
1
Fig. 8 - 3 56035-E-059 Lower Shield 1
Fig. 8 - 4 P54612 Oil Protector 1
Fig. 8 - 5 56035-E-061
Stop Engine
Switch
Subassembly
1
Fig. 8 - 6 P54040 Bolt 2
Fig. 8 - 7 P54040 Bolt 1
Fig. 8 - 8 P54596-1 Collar 1
Fig. 8 - 9 P54186 Bolt 1
Fig. 8 - 10 P54040 Bolt 4
Fig. 9 - Carburetor Assembly
No. Part Description Qty.
Fig. 9 - 1 56035-E-067
Carburetor
Assembly
1
Fig. 9 - 2 56035-E-068
Air Cleaner
Gasket
1
Fig. 9 - 3 P54166
Carbuertor
Gasket
1
Fig. 9 - 4 P54164
Carbuertor
Insulator Plate
1
Fig. 9 - 5 P54162
Carburetor
Insulator Gasket
1
Fig. 10 - Air Cleaner
No. Part Description Qty.
Fig. 10 - 1 56035-E-073 Air Cleaner 1
Fig. 10 - 2 P54179 Nut 2
Fig. 10 - 3 56035-E-073-1
Air Cleaner
Element
1
Fig. 11 - Muffler Assembly
No. Part Description Qty.
Fig. 11 - 1 P54426
Exhaust Outlet
Gasket
1
Fig. 11 - 2 56035-E-076 Nut 2
Fig. 11 - 3 56035-E-077 Muffler Assembly 1
24

Wen 56035T Specifications

General

Brand	Wen
Model	56035T
Category	Construction Equipment
Language	English
