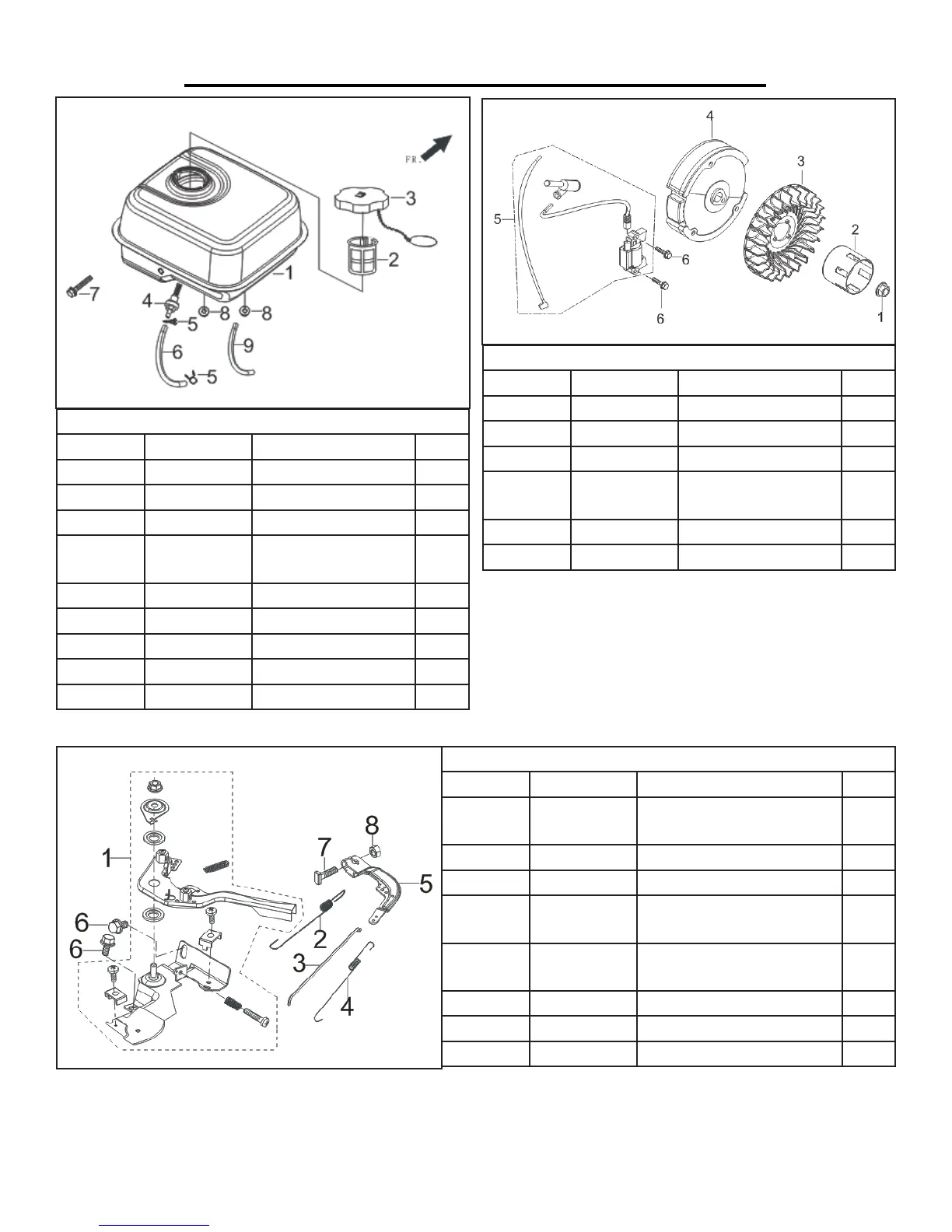

EXPLODED VIEW AND PARTS LIST (ENGINE)
Fig. 12 - Gas Tank
No. Part Description Qty.
Fig. 12 - 1 56035-E-078 Fuel Tank 1
Fig. 12 - 2 56035-E-079 Fuel Strainer 1
Fig. 12 - 3 56035-E-080 Fuel Tank Cover 1
Fig. 12 - 4 56035-E-081
Fuel Tank Oil
Outlet Subassembly
1
Fig. 12 - 5 56035-E-082 Collar 2
Fig. 12 - 6 56035-E-083 Fuel Tube 1
Fig. 12 - 7 56035-E-084 Bolt 1
Fig. 12 - 8 P54179 Nut 2
Fig. 12 - 9 56035-E-102 Rubber Jacket 1
Fig. 13 - Flywheel/Impeller
No. Part Description Qty.
Fig. 13 - 1 P54630 Flywheel Nut 1
Fig. 13 - 2 56035-E-087 Starter Pulley 1
Fig. 13 - 3 P54634 Impeller 1
Fig. 13 - 4 P54636
Flywheel Subas-
sembly
1
Fig. 13 - 5 56035-E-091 Ignition Coil 1
Fig. 13 - 6 P54628 Bolt 2
Fig. 14 - Control Assembly, Throttle
No. Part Description Qty.
Fig. 14 - 1 56035-E-092
Throttle Control
Assembly
1
Fig. 14 - 2 56035-E-094 Governor Spring 1
Fig. 14 - 3 P54620 Governor Rod 1
Fig. 14 - 4 P54618
Throttle Valve
Returning Spring
1
Fig. 14 - 5 P54624
Governor Support
Subassembly
1
Fig. 14 - 6 P54040 Bolt 2
Fig. 14 - 7 P54622 Governor Support Bolt 1
Fig. 14 - 8 P54179 Nut 1
