OPERATION
WARNING! Before each use, check the stapler, compressed air connections, and air lines. If any parts are
missing or damaged, do not operate this tool until the parts are repaired and/or replaced. Failure to do so may
result in serious personal injury.
LUBRICATION
This tool requires lubrication before each use (especially
the first use). If an inline oiler is used, manual lubrication
through the air inlet is not required. Proper lubrication
is the owner’s responsibility. Failure to lubricate the tool
properly will dramatically shorten the life of the tool and
void the warranty.
NOTE: The surface of the workpiece can be damaged by
excessive lubrication.
1. Disconnect the tool from the air supply.

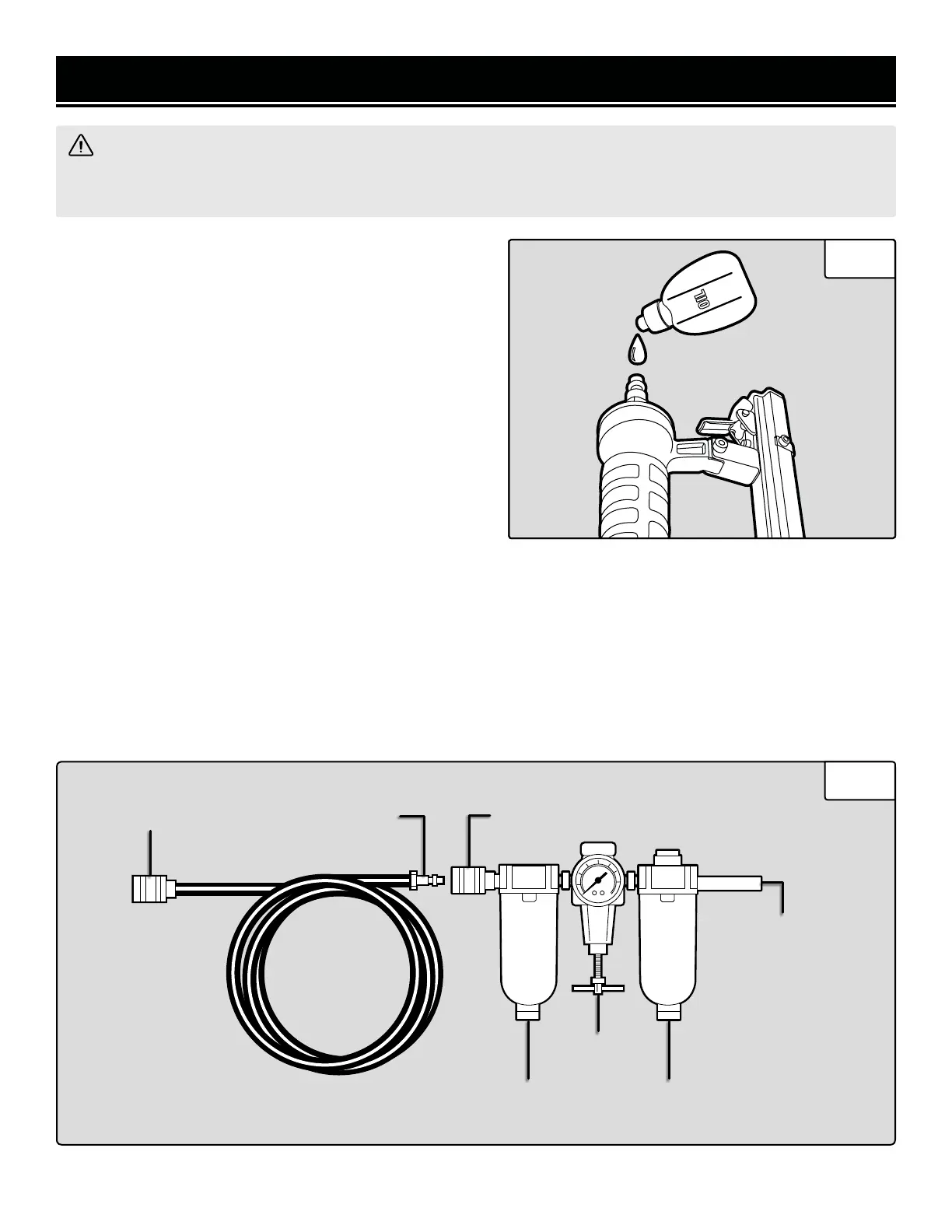

2. Turn the tool so the air inlet is facing up. Place 4 – 5
drops of air tool oil into the air inlet Fig. 1).
Fig. 1
3. Connect the tool to the air supply as instructed below. Load fasteners as instructed below. Fire the tool 3 – 4 times
into a piece of scrap wood to lubricate the internal parts of the tool. Wipe off any excess oil from the exhaust cap
and the air inlet.
CONNECTING THE TOOL TO AN AIR SUPPLY
Your tool should be connected to a properly installed compressed air supply. The working pressure of the air
compressor must be regulated to fit the operating pressure of your stapler (60 – 100 PSI). Refer to (Fig. 2) for the
recommended accessories and connection configuration.
0
20
40
60
80
100
120
140
160
To Air Tool Quick Connector Quick Coupler
To Compressor
Regulator
Lubricator Filter
Fig. 2
8
