Wen DT1516

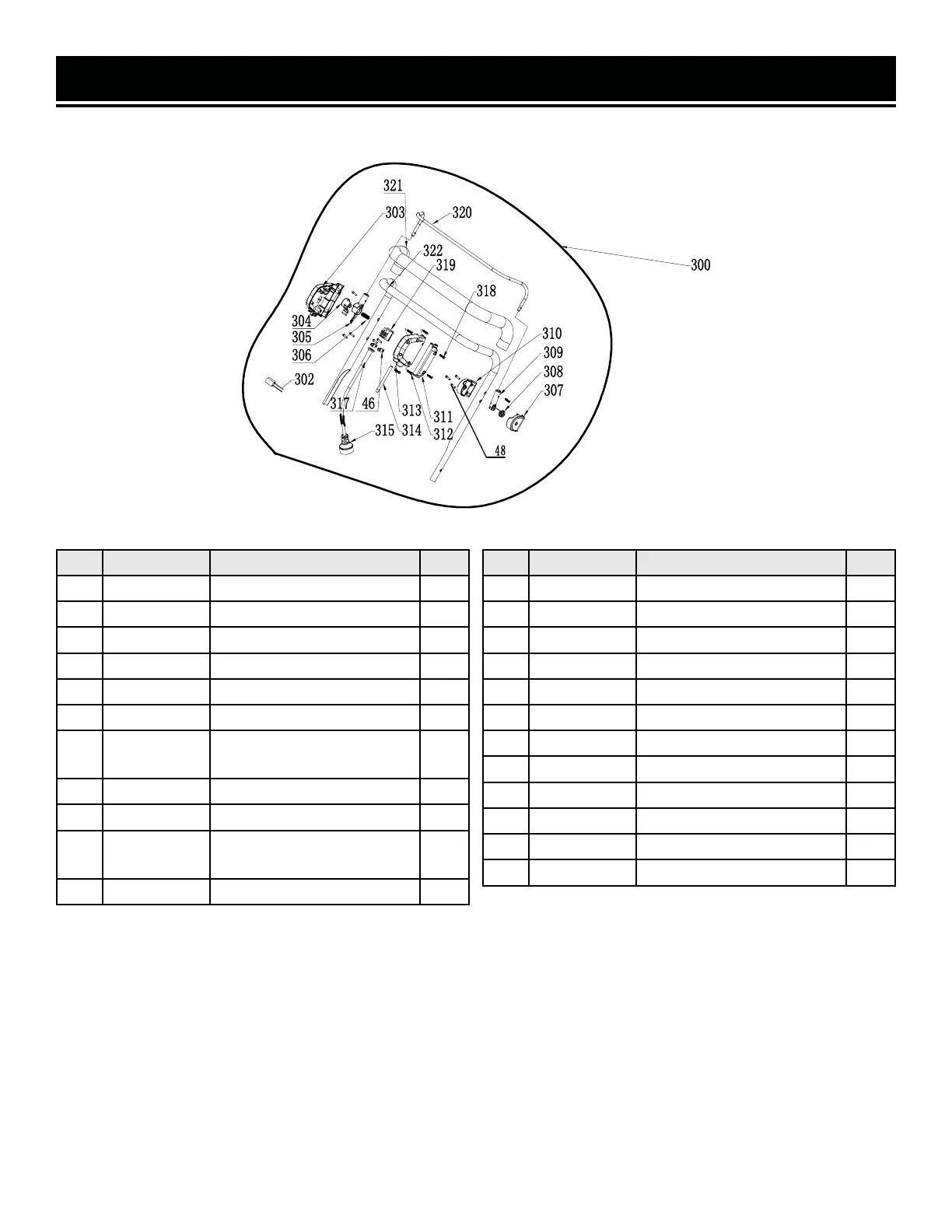

EXPLODED VIEW & PARTS LIST
MOTOR ASSEMBLY
NO. PART NO. DESCRIPTION QTY.
300 DT1516-300 Upper Handle Assembly 1
302 DT1516-302 Fuse 1
303 DT1315-217 Power Switch Housing 1
304 DT1315-216 Power Switch Button 1
305 DT1315-214 Trigger Handle Switch 1
306 DT1315-213 Power Button Spring 1
307 DT1315-201
Trigger Handle Outside
Bracket
1
308 DT1315-202 Trigger Spring 1
309 DT1315-203 Right Trigger Handle Arm 1
310 DT1315-204
Trigger Handle Inside
Bracket
1
311 DT1315-206 Switch Handle Bracket 1
NO. PART NO. DESCRIPTION QTY.
312 DT1516-312 Self-Tapping Screw 10
313 DT1315-207 Rear Switch Housing 1
314 DT1516-314 Switch Wire 1
315 DT1516-315 Power Plug 1
46 DT1315-011 Press Plate 2
317 DT1315-210 Cord Strain Relief 1
318 DT1315-205 Switch Housing Screw 6
319 DT1516-319 Power Switch 1
320 DT1315-220 Trigger Handle 1
321 DT1516-321 Upper Handle Grip 1
322 DT1315-218 Upper Handle Tube 2
48 DT1315-205 Fan Housing Screw 3
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
