Wen DT1516

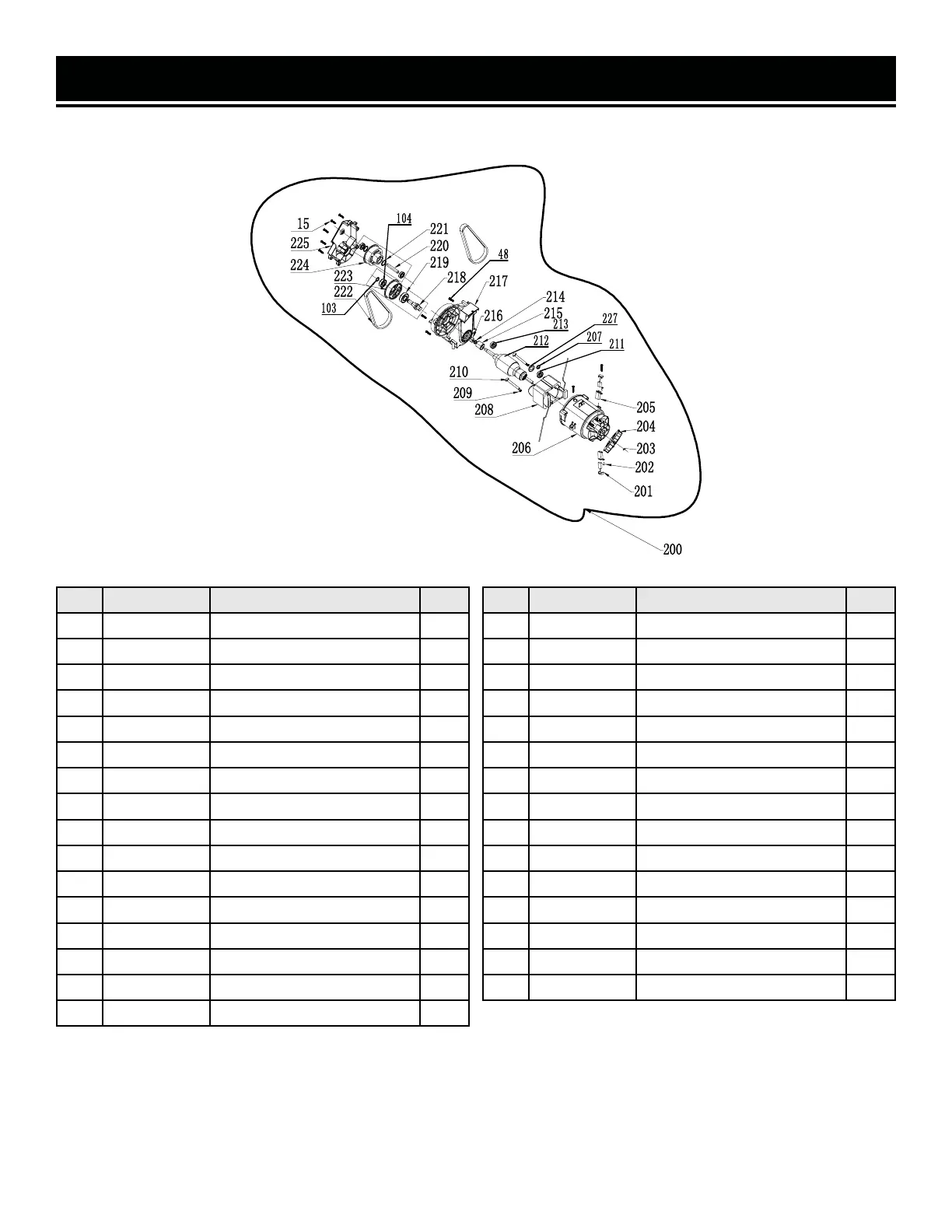

EXPLODED VIEW & PARTS LIST
MOTOR ASSEMBLY
NO. PART NO. DESCRIPTION QTY.
200 DT1516-200 Motor Drive Assembly 1
201 DT1516-201 Carbon Brush 2
202 DT1516-202 Carbon Brush Screw 2
203 DT1516-203 Circlip 1
204 DT1315-102 Motor Fan 1
205 DT1315-105 Carbon Brush Holder 2
206 DT1516-206 Motor Casing 1
207 DT1516-207 Washer 1
208 DT1516-208 Stator Assembly 1
209 DT1516-209 Motor Pad 2
210 DT1516-210 Motor Bolt 2
211 DT1315-110 Motor Bearing 3
212 DT1516-212 Rotor 1
213 DT1516-213 Motor Bearing 1
214 DT1516-214 Washer 1
215 DT1516-215 Belt Housing Screw 1
NO. PART NO. DESCRIPTION QTY.
216 DT1516-216 Bolt M8 1
217 DT1516-217 Pulley Housing 1
218 DT1516-218 Output Shaft 1
219 DT1516-219 Pulley Bearing 1
220 DT1516-220 Belt Axle 1
221 DT1516-221 Circlip 2
222 DT1516-222 Belt 2
223 DT1516-223 Large Belt Wheel 1
224 DT1516-224 Double Belt Pulley 1
225 DT1516-225 Belt Housing 1
15 DT1516-015 Self-Tapping Screw 5
227 DT1516-227 Commutator Felt 1
48 DT1516-048 Fan Housing Screw 3
103 DT1516-103 Circlip 1
104 DT1516-104 Bearing 1
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
