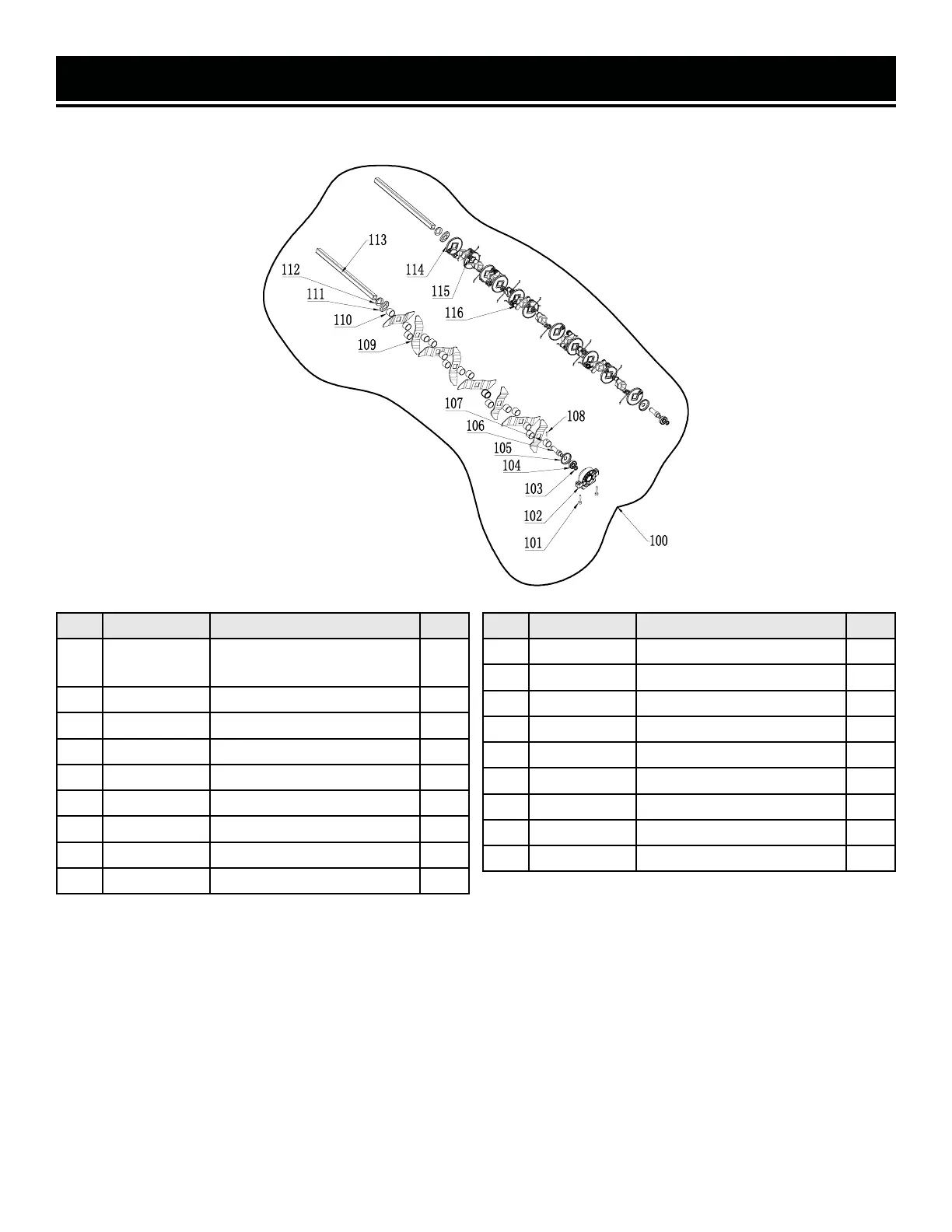

EXPLODED VIEW & PARTS LIST
BLADE ATTACHMENT ASSEMBLIES
NO. PART NO. DESCRIPTION QTY.
99 DT1516-099
Dethatcher Blade
Assembly
1
100 DT1516-100 Scarifier Blade Assembly 1
101 DT1516-101 Blade Bracket Bolt M6x70 2
102 DT1516-102 Blade Bracket 1
103 DT1516-103 Circlip 2
104 DT1315-127 Bearing 2
105 DT1516-105 Bearing Washer 2
106 DT1315-301 Bearing Shaft 2
107 DT1516-107 Blade Collar 1
NO. PART NO. DESCRIPTION QTY.
108 DT1516-108 Set Pin 1
109 DT1516-109 Scarifier Blade 10
110 DT1516-110 Rod Collar 19
111 DT1516-111 Rod Washer 2
112 DT1516-112 Rod Gasket 2
113 DT1516-113 Square Blade Rod 2
114 DT1516-114 Blade Rod Divider 13
115 DT1516-115 Scraper Tine 24
116 DT1516-116 Scraper Tine Mount 12
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
20
