19
SAFETY
3.3 Interfaces of TOPITEC
®
TOUCH
Description of TOPITEC
®
TOUCH control elements for operating personnel, power connections
and data interfaces.
Overview TOPITEC
®
TOUCH:
1. Housing
2. Touch screen
3. Tool shaft adapter (concealed) with safety bracket
4. Locking device with securing bracket
5. TOPITEC
®
jar holder 20-30 g or 50-200 g (detachable)
6. TOPITEC
®
base ring for single-patient jars / jars for stock preparation
7. Type plate
8. USB interface for maintenance purposes
9. Printer interface (RS 232, serial port)
10. PC interface (USB)
11. Power switch with fuse holder (2 x 10 A slow-acting) and power cable port
12. Base plate
9.
10.
11.
8.
7.
1.
2.
3.
4.
5.
6.
12.

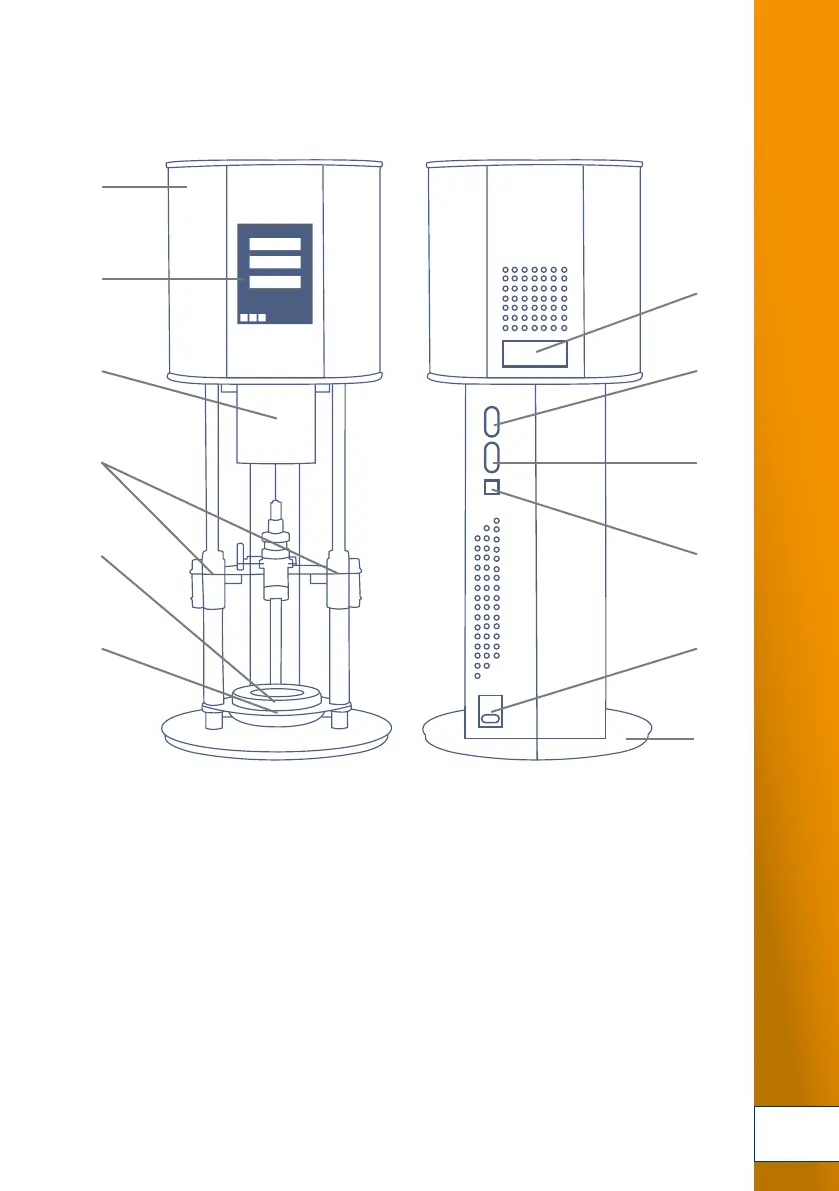

Fig. 3-1 Diagram of TOPITEC
®
TOUCH
