7

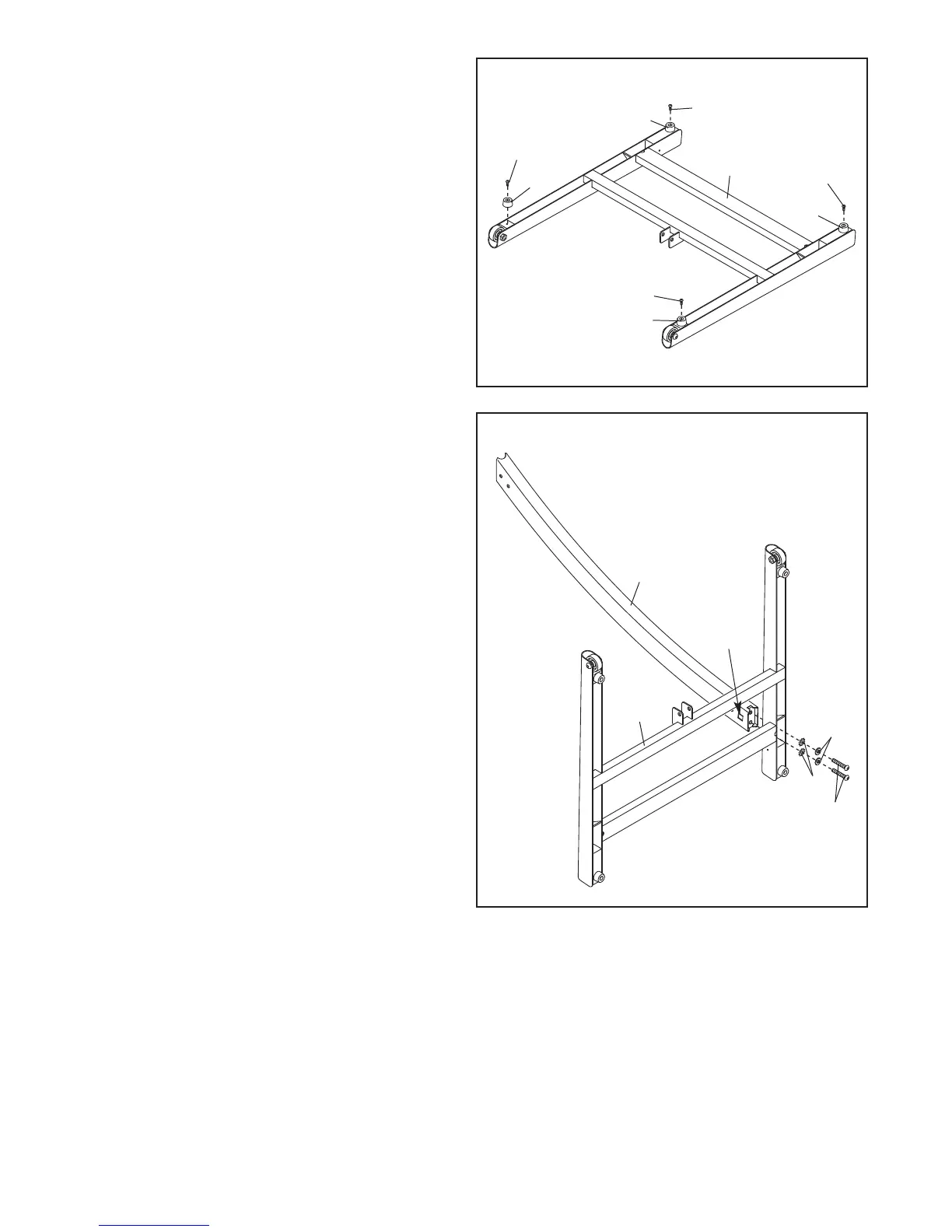

1. Make sure that the power cord is unplugged.
Orient the Base (101) as shown.
Attach four Base Feet (100) to the Base (101) in
t
he locations shown with four M4.2 x 19mm Foot
Screws (14).
1
14
100
100
100
100
101
14
14
14
2. Identify the Right Upright (98), which has a
square hole in the location shown.
Orient the Right Upright (98) and the Base (101)
as shown. Attach the Right Upright to the Base
with two M10 x 53mm Patch Bolts (18), two M10
Flat Washers (16), and two M10 Star Washers
(8); do not fully tighten the Patch Bolts yet.
101
18
16
8
98
2
Square
Hole
To Next Page
