9
6. Hold the remaining Upright Spacer (99) between
the Left Upright (96) and the Lift Frame (75),
with the outer side of the Upright Spacer fac-
ing the Left Upright. Attach the Left Upright to
the Lift Frame with an M10 x 60mm Patch Bolt
(15), an M10 Washer (4), and an M10 Star
Washer (8); do not tighten the Patch Bolt yet.
6
15
4
8
99
96
75

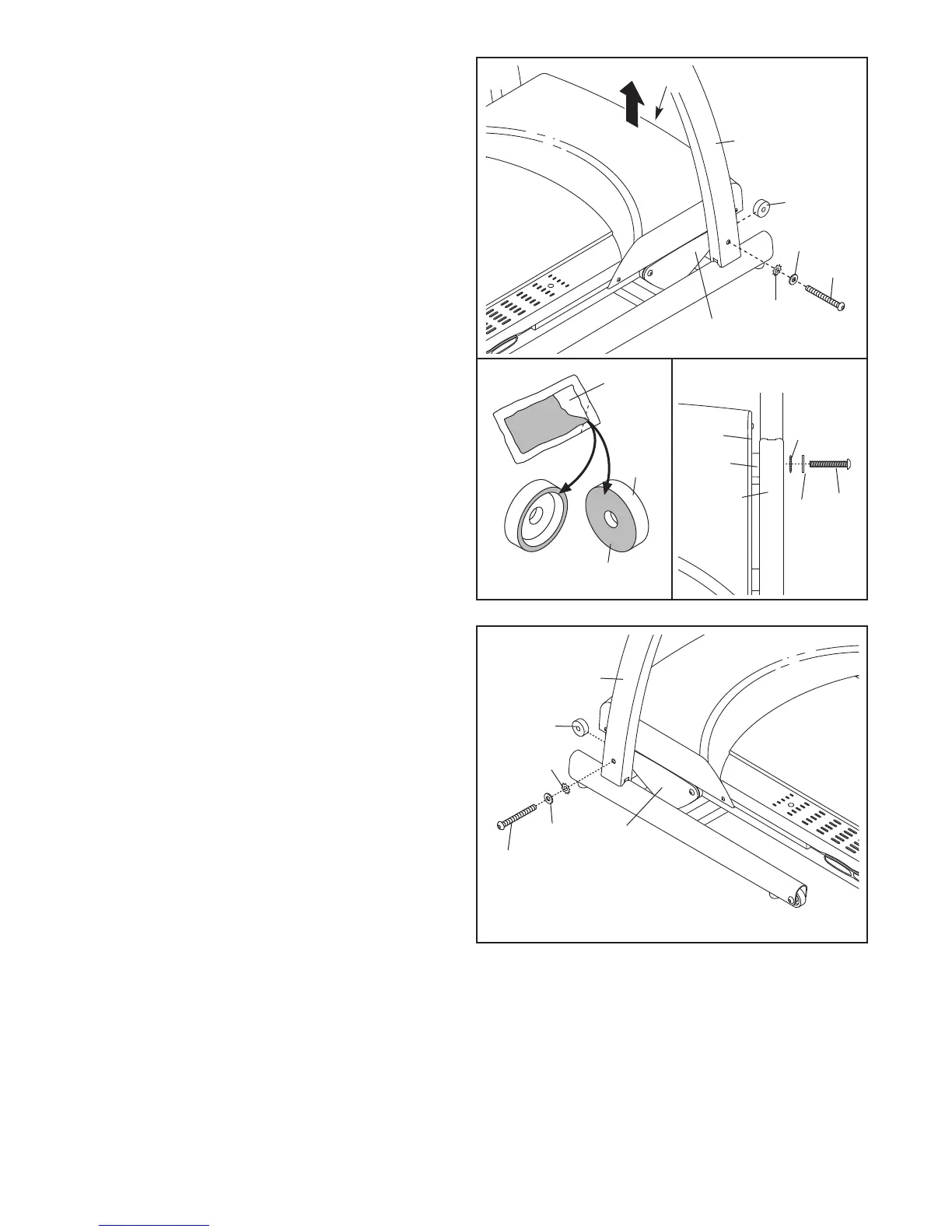

5. See the left inset drawing. Identify the two
Upright Spacers (99). Open the included packet
of grease, and apply grease to both sides of
b
oth Upright Spacers. Next, identify the outer
side of each Upright Spacer.
Have a second person raise the Frame (67) and
hold it until step 7 is completed.
Hold an Upright Spacer (99) between the Right
Upright (98) and the Lift Frame (75), with the
outer side of the Upright Spacer facing the
Right Upright. Attach the Right Upright to the
Lift Frame with an M10 x 60mm Patch Bolt (15),
an M10 Washer (4), and an M10 Star Washer
(8); do not fully tighten the Patch Bolt yet.
5
8
75
4
99
15
8
99
15
4
98
99
Grease
98
Outer Side
6
7
Top View
75
