6

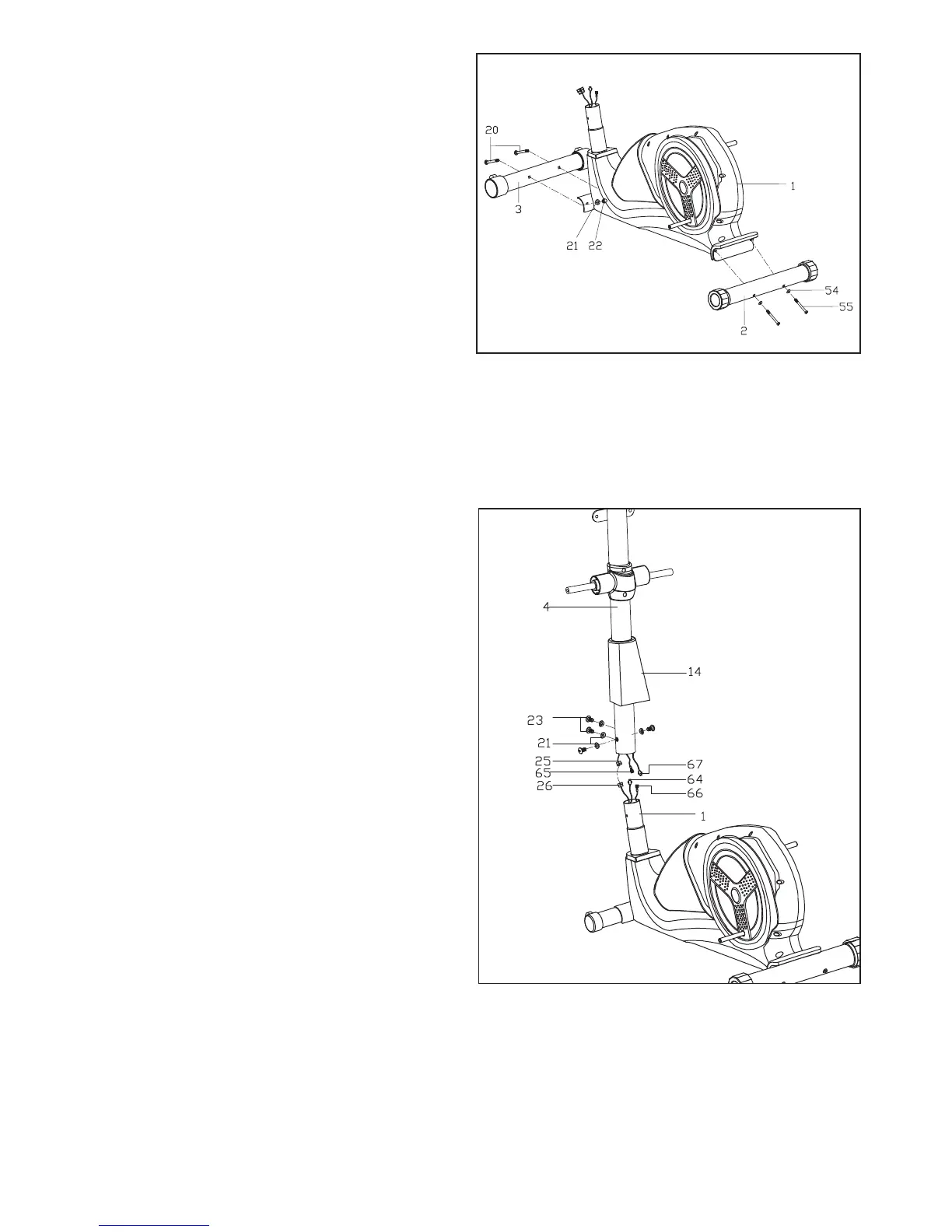

Step 1:
1. Fix the Front bottom tube (3) to the Main frame
(1) with Bolts (20), Arc washers (21), Nuts (22).
2. Fix the Rear bottom tube (2) to the main frame
(1) with Bolts (55) and Arc washers(54).
Step 2:
1. Put the Protective guard (14) onto the Handle-
bar post (4); connect the Sensor wire (26) power
wire(66) motor wire(64) with the Connection wire
(25).power connection wire(67) & the motor con-
nection wire(65)
2. Fix the Handlebar post (4) to the main frame (1)
with screws (23), Arc washers (21), and then put
the Protective guard (14) on.
