7

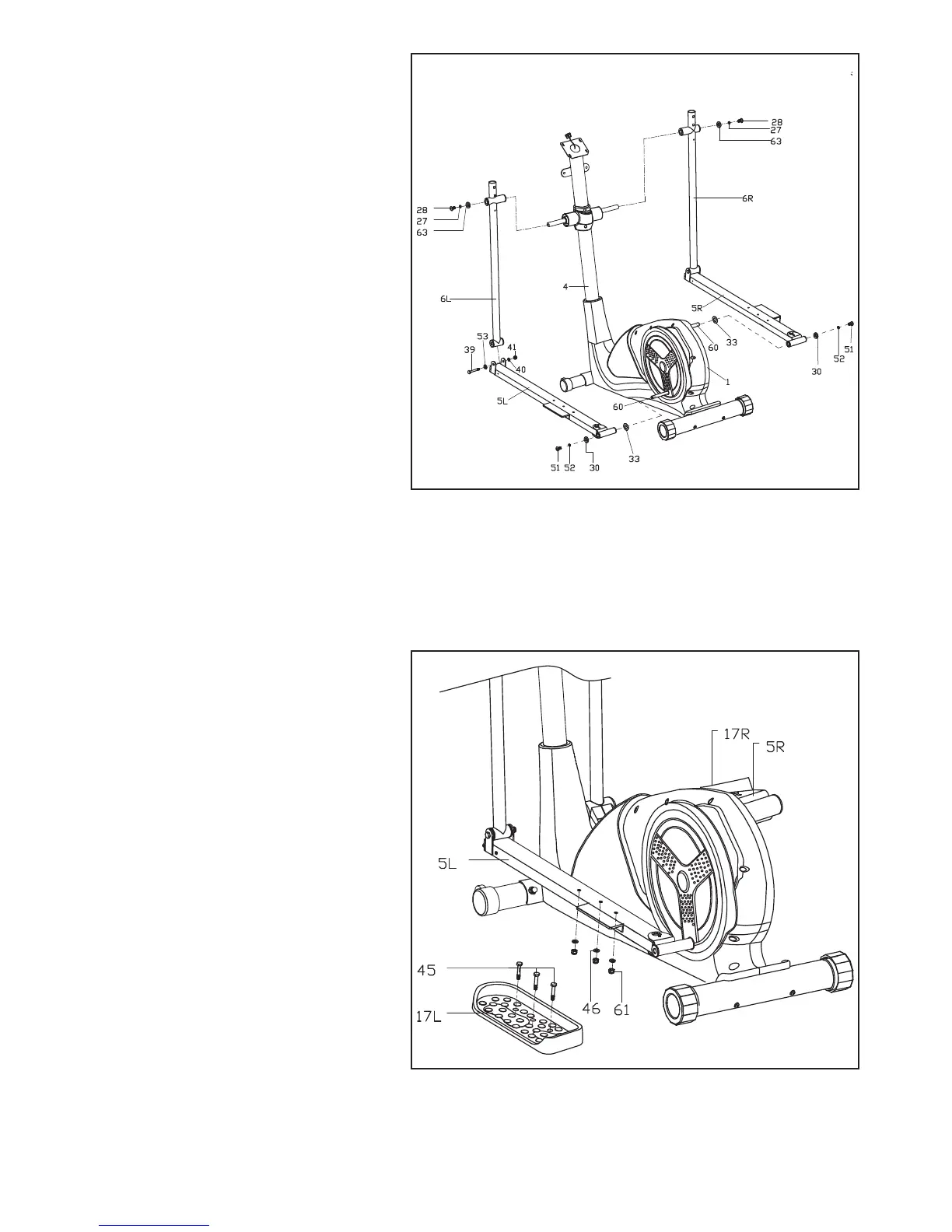

Step 3:
1. Attach the left and right Swing tube
(6L/R) to the Handlebar post (4) with Bolt
(28), spring washer (27) and Flat washer
(63), but don’t tighten then rst.
2. Attach the left Pedal support (5L) to the
Crank (60) with Bolt (51), spring washer
(52), D-shape washer (30) and Wave
washer (33), then tighten the bolts (51) &
(28).
3. Attach the left Pedal support (5R) to
the left Swing tube (6R) with bolt(39), at
washer(53)(40)& nylon nut(41), and then
tighten the bolts (51) & (28).&(39)& nylon
nut(41).
4. Tighten the right Pedal support (5R) and
the right Swing tube (6R) to the Handlebar
post (4) and the Crank (60) with the same
way.
Step 4:
Fix the Pedals (17L/R) to the Pedal sup-
ports (5L/R) with Bolts (45), Flat washer
(46) and Nylon nuts (61).
