8

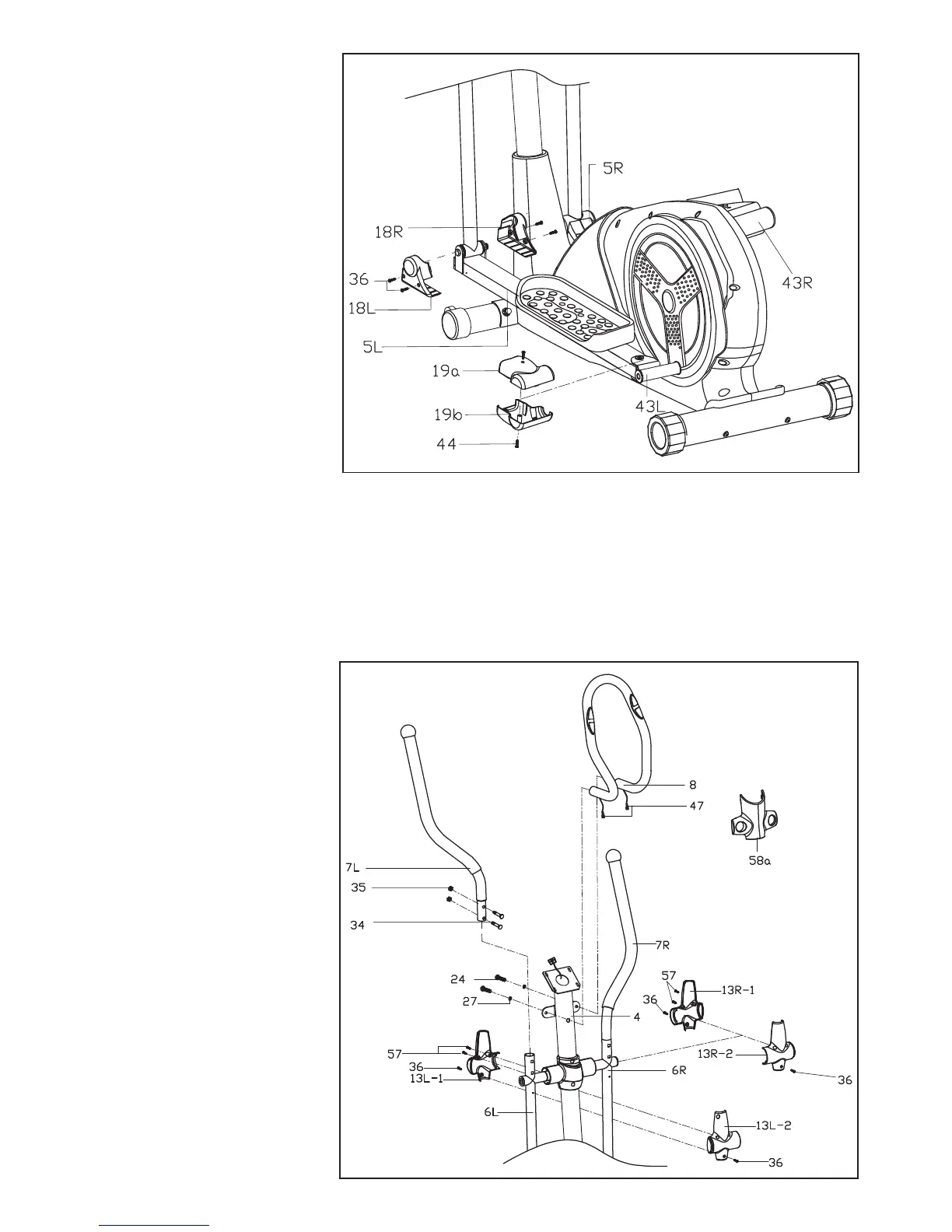

Step 5:
1. Fix the Protective guards
(18L/R) to the Pedal supports
(5L/R) with Screws (36).
2. Fix the Protective guards
(19a/b) to the Pedal tube joints
(43L/R) with Screws (44).
Step 6:
1. Fix the Handlebars (7L/R) to the Swing tubes (6L/R) respectively with Bolts (34) and Nylon nuts (35).
2. First set the Post cover (58a) on the Connecting piece of Handlebar post (4). Then x the xed handlebar
(8) to the Handlebar post (4) with Screw (24) and spring washer (27). Last, pass the Pulse wire (47) through
into the hole in the back of the Handlebar post (4) and pull out of the hole of the Computer bracket.
3. Fix the left Protective guards
(13L-1, 13L-2) to the junction
of Swing tube (6L) and Handler
bar (7L) with Screw (36 ) and
Screw(57), and then x the right
Protective guards (13R-1, 13R-2)
to the junction of Swing tube (6R)
and Handler bar (7R) with Screw
(36 ) and Screw(57).
To Next Page
