S Y S T E M I N T R O D U C T I O N
4

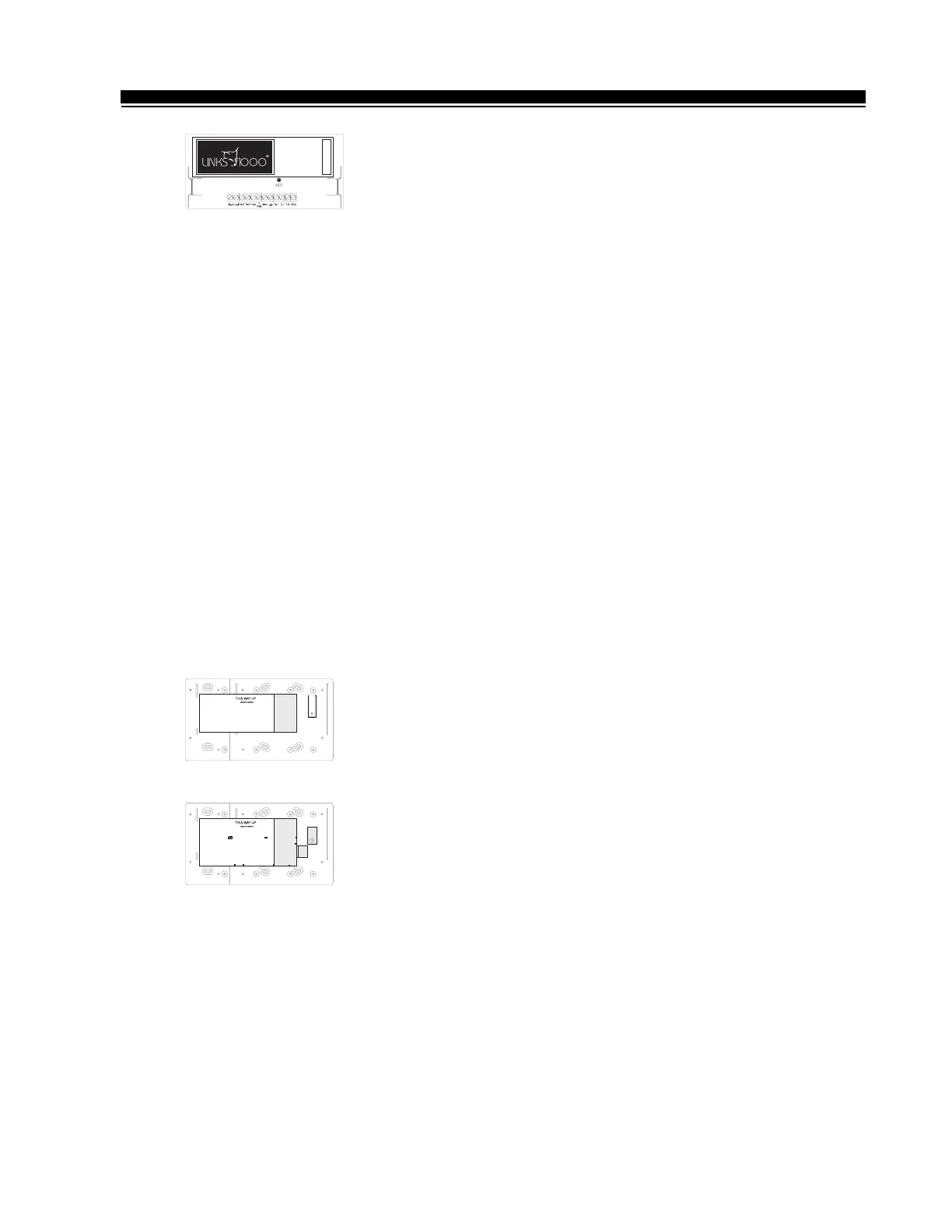

The LINKS 1000 Cellular Communicator provides an efficient, cost-effective
method for adding cellular back up. The unit comes in its own cabinet with
antenna and requires a separate battery and transformer
(See Section 5.24
“LINKS 1000 cellular communicator”).
1.2.10 Cabinets
Several different cabinets are available for the WSS5010 modules:
WSS5002C Cabinet
Cabinet to house the WSS5010 main control panel and also the WSS5204 Power Supply Output Module.
Dimensions 213mm x 235mm x 78mm / 8.4” x 9.25” x 3” approximately.
WSS5004C Cabinet
Cabinet to house the WSS5580 Module and WSS5400 Printer Module. Dimensions 229mm x 178mm x
65mm / 9” x 7” x 2.6” approximately.
WSS5001C Cabinet
Cabinet to house the WSS5108 Zone Expander Module and the WSS5208 Eight Low Current Output
Module. Dimensions 153mm x 122mm x 38mm / 6” x 4.8” x 1.5” approximately.
WSS5001CP Cabinet
Plastic cabinet to house the WSS5108 Zone Expander Module, WSS5132-RS Wireless Receiver Module
and the WSS5208 Eight Low Current Output Module. Dimensions 146mm x 105mm x 25.5mm / 5.75” x
4.2” x 1” approximately.
WSS5132C Cabinet
Cabinet to house the WSS5132-RS Wireless Receiver Module. Dimensions 165mm x 143mm x 38mm /
6.5” x 5.625” x 1.5” approximately.
CMC-1 Attack Resistant Enclosure
Listed enclosure for local installations where attack resistance is required. Dimensions 288mm x 298mm
x 78mm / 11.3” x 11.7” x 3” approximately.
1.2.11 Backplates
There are two different backplates available for keypads to locate an Audio Station next to the keypad:
WSS55BP1 Backplate
This backplate is to be used when an Audio Station is to be located next to
a keypad. Dimensions 208mm x 115mm x 18mm / 8.2” x 4.5” x 0.25”
approximately.
WSS55BP2 Backplate
This backplate is to be used when an Audio Station is to be located next
to a keypad. In addition the backplate will allow you to mount a WSS5108
Zone Expander Module or the WSS5208 Eight Low Current Output
Module. Dimensions 208mm x 115mm x 18mm / 8.2” x 4.5” x 0.7”
approximately.
1.3 Out of the Box
You should find the following equipment included in your system. Verify each of the components is included:
• one WSS5010 main control cabinet (WSS5002C)
• one WSS5010 main control circuit board
• one Installation Manual
• one hardware pack consisting of:
- 5 plastic circuit board standoffs - 16 5600 ohm (5.6K) resistors
- 1 2200 ohm (2.2K) resistor - 1 1000 ohm (1K) resistor
- 16V 40VA transformer - ULF siren
- RJ-31X telephone block and cord - Battery, 12V, 4 Ah
Note: In order to complete the installation, a keypad(s) must also be used.
