12 6072-2004

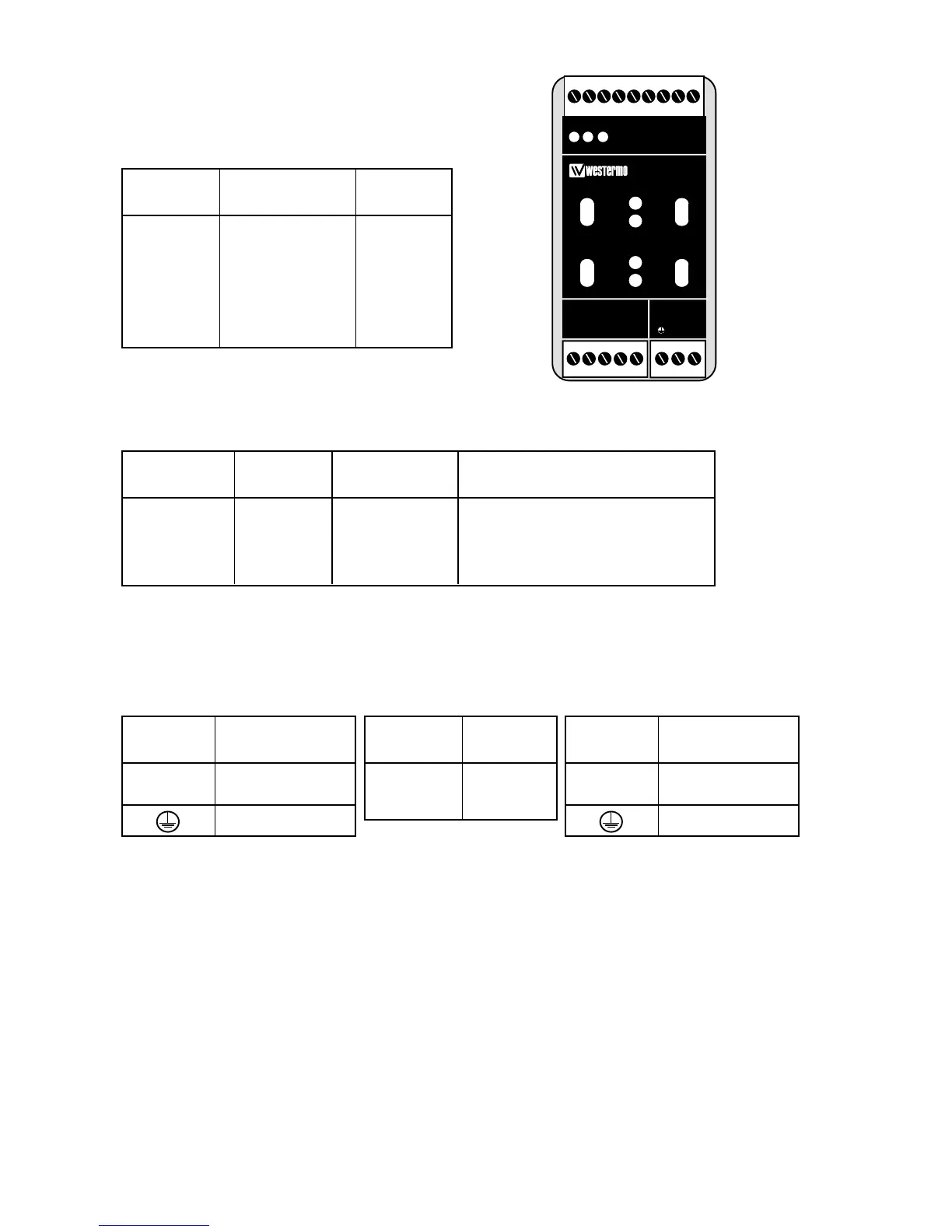

Connections LD-63
Line connection
(5-position screw-terminal)
Terminal connection (DCE)
(RS-232-C/V.24, 9-position screw-terminal)
Direction Connection ITU-T V.11
no. Description
Receiver 1 A’ (R+)
Receiver 2 B’ (R–)
Transmitter 3 A (T+)
Transmitter 4 B (T–)
5 Shield
Direction Screw ITU-T V.24 Description
no. Description
I 8 103 TD/Transmitted Data
O 7 104 RD/Received Data
9 102 SG/Signal Ground
I = Input O = Output on LD-63
12345 LN
LD-63
RS-422/485 POWER
R+
Rx1
Rx2
Tx1
Tx2
R- T+ T-
TD RDPWR
LEDs for indication on LD-63
PWR: Indicates that the converter has power.
TD: Indicates that the converter is receiving data on RS-232/V.24, RS-485 side.
RD: Indicates that the converter is sending data on RS-232/V.24, RS-485 side.
Rx1: Indicates received data on fiber channel 1.
Rx2: Indicates received data on fiber channel 2.
Tx1: Indicates that the converter is sending data on fiber channel 1 from RS-232/V.24, RS-485 side.
Tx2: Indicates that the converter is sending data on fiber channel 2 from RS-232/V.24, RS-485 side.
The definations R+/R,T+/T can be various between
different manufactures.
Connection Power
no. supply
L 115*/230V
N AC power
PE/ Protective Earth
Power connection
LD-63 DC
(2-position screw-terminal)
Connection Power
no. supply
1 Voltage
2 + Voltage
Power connection
LD-63 AC
(3-position screw-terminal)
Connection Power
no. supply
L + Voltage
N Voltage
PE/ Protective Earth
Power connection
LD-63 HV
(3-position screw-terminal)
* LD-63 115V
