Westermo MRD-455 - MRD-315 Connections; Ethernet TX Connections; Serial Port (DCE Female)

To Next Page

To Previous Page

6623-2250

SIM card drawer

eject button

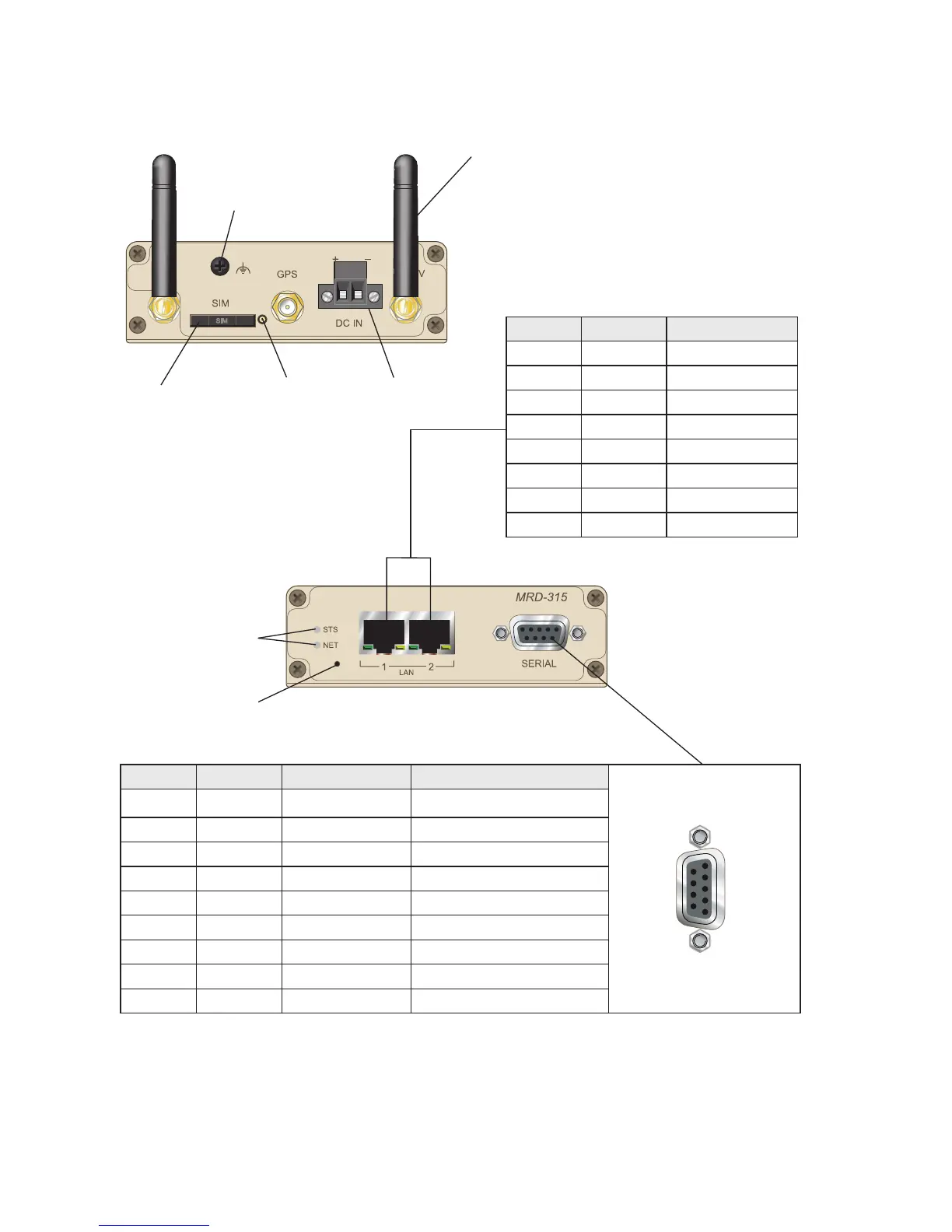

Connections MRD-315

Serial Port (DCE Female)

Position Name Direction Description

1 DCD Out Data Carrier Detect

2 RxD Out Receive Data

3 TxD In Transmit Data

4 DTR In Data Terminal Ready

5 SG – Signal Ground

6 DSR Out Data Set Ready

7 RTS IN Request to Send

8 CTS Out Clear to Send

9 RI Out Ring Indicator

Led indicators

Antenna

Protective

earth

SIM card drawer

Power

connector

Ethernet TX Connections

(RJ-45 connector) LAN1-2

Position Direction Description

1 In/Out TD+

2 In/Out TD–

3 In/Out RD+

4 – Not Connected

5 – Not Connected

6 In/Out RD–

7 – Not Connected

8 – Not Connected

Factory default

reset switch
