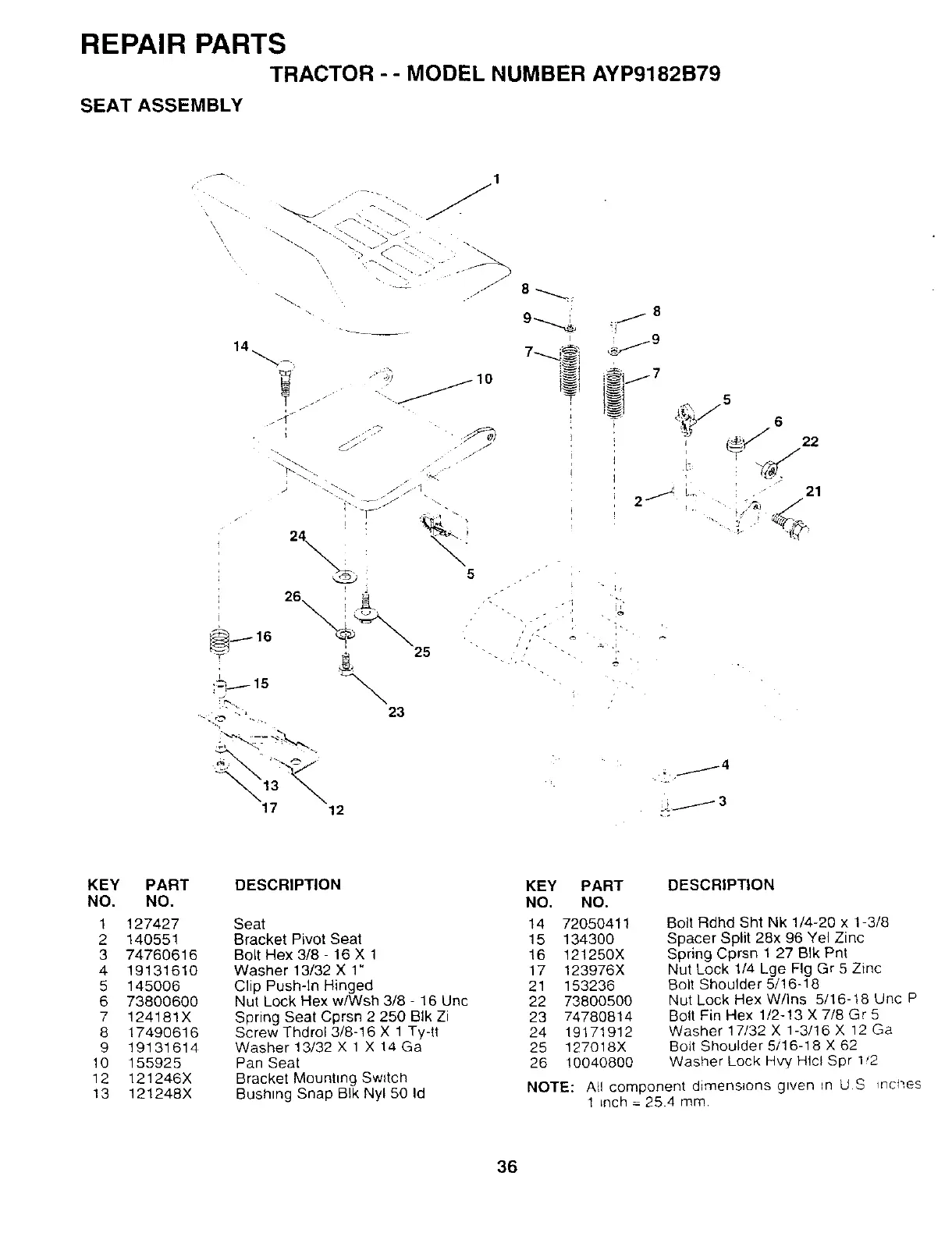

REPAIR PARTS
TRACTOR -- MODEL NUMBER AYP9182B79
SEAT ASSEMBLY
jl
f
14,.
:,_ 15
\
%.-
__ J
24
\
\
26. _
_ 25
\
\.
23
17 12
7._._ i ,_,_ 9
\
\
5
", . "
2j_: [_ 21
/4
KEY PART
NO. NO.
1 127427
2 140551
3 74760616
4 19131610
5 145006
6 73800600
7 124181X
8 17490616
9 19131614
10 155925
12 121246X
13 121248X
DESCRIPTION
Seat
Bracket Pivot Seat
Boll Hex 3/8 - 16 X 1
Washer 13/32 X 1"
Clip Push-In Hinged
Nut Lock Hex w/Wsh 3/8 - 16 Unc
Spring Seat Cprsn 2 250 BIk Zi
Screw Thdrol 3/8-16 X 1 Ty-tt
Washer 13/32 X 1 X 14 Ga
Pan Seat
Bracket Mountnn9 Switch
Bushing Snap Btk Nyl 50 Id
KEY PART
NO. NO.
DESCRIPTION
14 72050411
15 134300
16 121250X
17 123976X
21 153236
22 7380050O
23 74780814
24 19171912
25 127018X
26 10040800
Bolt Rdhd Sht Nk 1/4-20 x 1-3/8
Spacer Split 28x 96 Yel Zinc
Spring Cprsn 1 27 BIk Pnt
Nut Lock 1/4 Lge Fig Gr 5 Zinc
Bolt Shoulder 5/16-16
Nut Lock Hex W/ins 5/16-18 Unc P
Bolt Fin Hex 1/2-13 X 7/8 Gr 5
Washer 17/32 X 1-3/16 X 12 Ga
Bolt Shoulder 5/16-18 X 62
Washer Lock Hvy H!ol Spr 1/2
NOTE: AI{ component d=mensJons g=ven m U S _ncf_es
1 Lnch : 25.4 ram.
